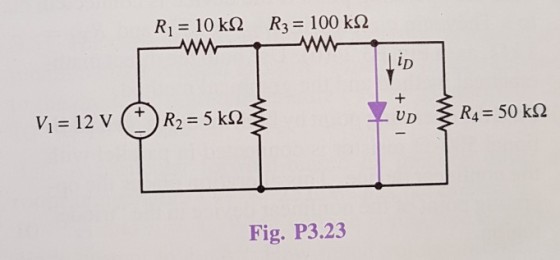

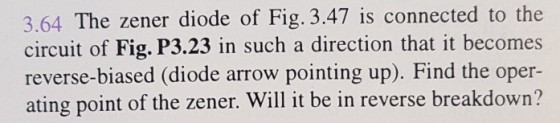

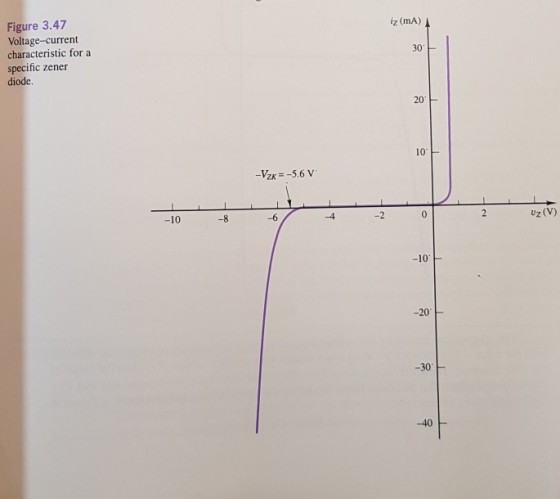

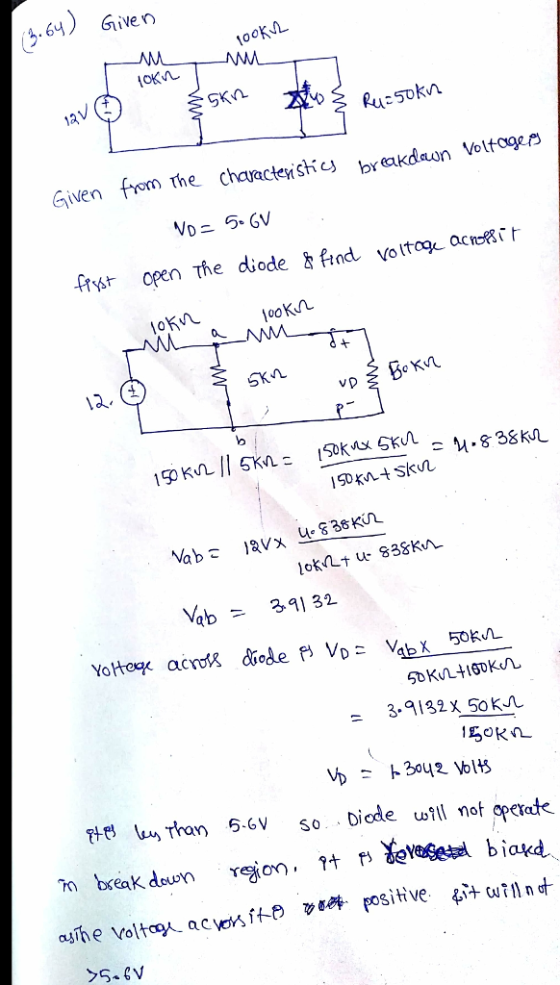

The zener diode of Fig. 3.47 is connected to the 3.64 circuit of Fig. P3.23 in...
.65 Consider the circuit of Fig. P3.21 with a zener diode connected in place of the pn junction diode. If VzK = 5 V, plot the voltage uz versus the voltage VB over the range-12V < VO < 12V.
that's all information it gives
A zener-diode voltage regulator circuit is shown below. The tage V 8.0V and the zener resistance is assumed to Problem 3: (20 points) zener diode has breakdown vol be 0 ohms. The power supply voltage Vps can vary between resistance RL can vary between 100 ohms and 1 kohm. 10V and 14V and the load Ri PS 1. Find a value of Ri such that the zener diode remains properly biased over the range of...
Ctri Question 3 (20 Marks) Lab 1-Zener Circuits and Applications Theory: Zener diode is designed to operate in reverse conduction. Zener breakdown occurs at a precisely defined voltage, allowing the diode to be used as a voltage reference or clipper. While Zener diodes are usually operated in reverse conduction, they may also be operated in cutoff and forward conduction. There are two different effects that are used in "Zener diodes". The only practical difference is that the two types have...
Problem 3: (20 points) A zener-diode voltage regulator circuit is shown belkw zener diode has breakdown voltage Vz 8.0V and the zener resistance is nsumed to be 0 ohms. The power supply voltage Vps can vary between 10V and 14V and the lod resistance Ri can vary between 100 ohms and 1 kohm, 圧 1. Find a value of R such that the zener diode remains properly biased over the range of variation of Vps and RI (hint: the minimum...
5000 10.2 S pts) The Zener diode in the circuit on the right voltage V 20 = 8.5V., and Zener resistancerz the circuit on the right has a Zener d) Find the Thevenin equivalent circuit as seen by lo b) Find the output voltage if a loa Find the output voltage if a load R, is connected and it draws a 1.5 mA current. Determine the value of RL c) How small can the load R, be, while ensuring that...
1. Draw the current-voltage characteristic of a Zener diode and show the forward and reverse biasing areas. Mark the "Zener voltage" value on the graph. Explain how the voltage on the Zener diode will vary when it is biased with a voltage higher than the Zener voltage. 2. Explain the operating principle of a full-wave bridge rectifier by clarifying which diodes becomes active during the positive and negative cycles of the input signal.
Once a Zener diode breaks down in the reverse direction, the current through it only changes slightly as the voltage across it varies. Select one: True False In a Voltage Doubler diode circuit, which of the following is true? Select one: a. One of the diodes and one of the capacitors implement a rectifier circuit b. The diodes must have a breakdown voltage equal to the peak input voltage c. The output will be a DC voltage equal to either...
4. Design a clamp circuit to clamp the negative extreme of a periodic input waveform of 10 sin(100πt)V to −5 V. Use 1 diode, 1 Zener diode, 1 resistor, and 1 capacitor of suitable values. Provide following minimum ratings of the selected components. (a) Diode - Maximum reverse voltage, peak forward current (b) Zener - Zener voltage, Zener current (c) Resistor - Resistance, power rating (d) capacitor - capacitance, Maximum voltage Assume a 0.6 V forward drop for all diodes...
1. All of these diodes have a reverse breakdown voltage: Silicon switching diode, zener diode, schottky diode and a light emitting diode. I or F (circle one) 2. Circle the correct statement(s) based on the following information: if you supply a 1Vp. 1KHz sine wave to a circuit with only passive elements: a) You will never measure a voltage above 1Vp b) You will always measure a voltage above 1Vp. c) You will sometimes measure a voltage above 1Vp. d)...
The circuit above is a Zener voltage regulator
using D1N750 zener diode with Vz=4.7V:
1. Calculate the minimum value of E in order to have the voltage
across RL regulated VL=Vz
2. Using Orcad PSpice schematics, simulate the
circuit using bias point and find Iz, IL, Is and Vz (the circuit
must have all voltages and currents values shown).
3. Using Orcad PSpice schematics, use DC sweep to
vary RL from 200 ohm to 1000 ohm and plot VL (for...
