A, b, c sorularını çözebilir misiniz?
Aşağıda verilen sistem G (ler) i açık çevrim transfer
fonksiyonunu dikkatle inceleyin;
a) Sistemin genlik-faz grafiğini çizin.
b) Sistemin genlik-faz grafiği üzerindeki frekans tepkisinin karakteristik özelliklerini belirleyin.
c) Sistemin kazanç geçiş frekansını, faz geçiş frekansını, kazanç payını ve faz payını grafiksel olarak gösterir.
note: Can be made using Matlab
Homework Answers
clc;
clear;
close;
num = [2, 7, 6, 3, 3];% Coefficients of numerator
den = [7, 3, 6, 3, 0, 4];% Coefficients of numerator
G = tf(num, den);%The transfer function
bode(G)%Plotting the Bode Plot(Magnitude Plot and Phae
Plot)
grid

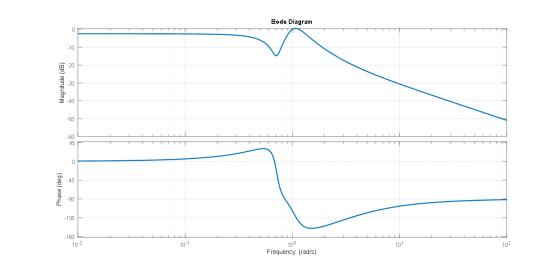

After executing we get

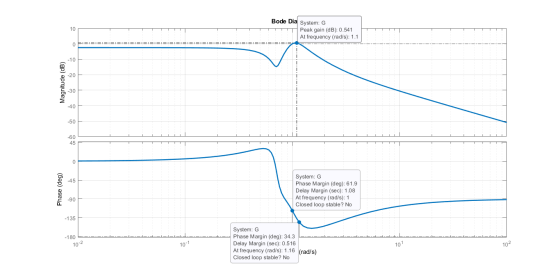

We can right click on the graph and show the characteristics
