Determine the reactions on the bent rod which is supported by a surface at B and...

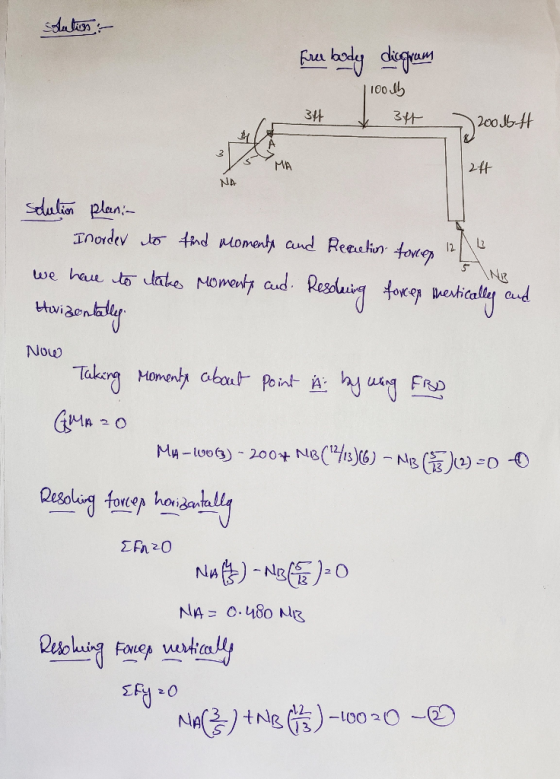

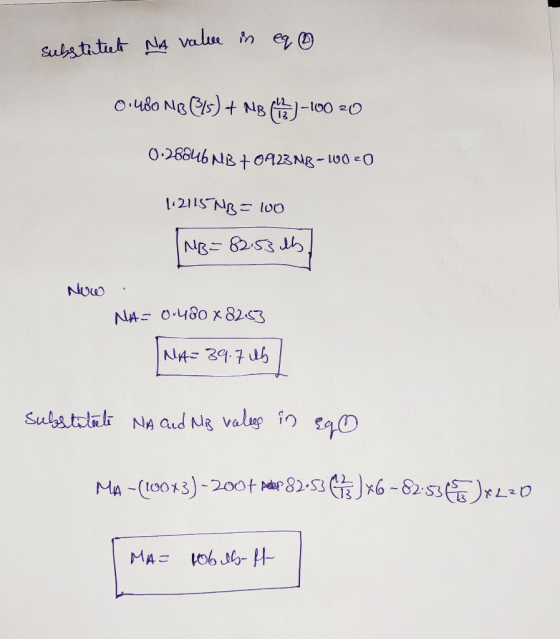

Determine the reactions on the bent rod which is supported by a surface at B and by a collar a A which is free to slide over inclined rod (10) 2. 100 Ib ft 200 lb ft 2 ft 12
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple m...
Please answer all parts of the question and try making it simple
to understand.
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple moment at point A 650 N 500 N 30° 300 N 1500 N m 60° 3 m 5-10. Determine the components of the support reactions at the fixed support A on the cantilevered beam 6 KN 1.5 m 4 kN 1.5 m 1.5 m Determine the reactions at the supports....
Solve for each of the problems below. 400 N/m 200 N/m 4 m 8. Determine the...
Solve for each of the problems below.

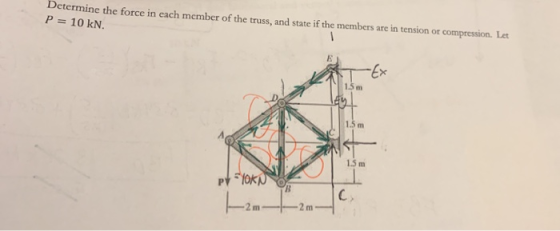

400 N/m 200 N/m 4 m 8. Determine the force in each member of the truss and state if the members are in tension or compression. (a) Use 0-0 (b) Use 030 kN 15 m 2 m 4 KN 9. A uniform rod has a length I and weight W. It is supported at its left end A by a smooth wall and at its right end by a cord of length s...
6.10 reactions and all internal forces 3m 6.9 and 6.10 Determine the force in each member...
6.10
reactions and all internal forces
3m 6.9 and 6.10 Determine the force in each member of the truss shown. State whether each member is in tension (1) or compression (C). A 12.5 kN 12.5 kN 12.5 kN 12.5 KN 8 KN Fig. P6.9 2.5 m Fig. P6.10 6.11 Determine the force in each member of the Gambrel roof truss shown. State whether each member is in tension (T) or compression (C). 600 lb 600 lb 600 lb 2 ft...
2. The T shaped member with a smooth pin at A and a link at B,...
2. The T shaped member with a smooth pin at A and a link at B, and a 10 lb mass (star in the figure) as shown. Determine the reactions at A and if the link is in tension or compression at link BC. Include a FBD as part of your solution. 7 ft 14 ft 10 lb link 3. Determine the forces FAB and FAD acting in the members of the truss shown below. Use the Method of Joints...
Problem No. 1: For the truss shown a) Determine the support reactions at A and G...
Problem No. 1: For the truss shown a) Determine the support reactions at A and G b) Using the methods of joints, determine the force in all members and indicate if the member is in tension (T) or compression (C). Assume all connections are pins 100 KN 4 m 4 m B 4 m H .. m
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
Final Exam 2. Analyze the truss shown below: (50 Points) a. Solve for the reactions at...
Final Exam 2. Analyze the truss shown below: (50 Points) a. Solve for the reactions at supports A and D b. Determine the force developed in members FE, EB, and BC of the truss, and state if these members are in tension or compression. Use the method of sections, c. Draw a free body diagram (FBD) of: i. The entire truss, without its supports ii. The truss section after cutting it iii. Any joint that you solve. m 1 m...
Part A - Determining the forces in three specified members of the truss Determine the forces...
Part A - Determining the forces in three
specified members of the truss
Determine the forces in members CD, DH, and
GH.
Express the magnitudes of the forces in pounds to three
significant figures. Separate your answers with commas.
Part B - The Sense of the Forces
State if the members considered in part A are in tension or
compression.
Complete each sentenc
e by dragging the appropriate word into the blank. The words can
be used more than once....
Part A The bent rod is supported by a smooth surface at B and by a...
Part A The bent rod is supported by a smooth surface at B and by a collar at A which is fxed to the rod and is free to slide over the fixed inclined rod Suppose that F- 100 lb and M-300 Ib ft.(Figure 1) Determine the magnitude of the reaction force on the rod at B. Express your answer to three significant figures and include the appropriate units. HA ? Ng Value Units Submit Request Answer Part B Determine...
Determine the reactions on the bent rod which is supported by a surface at B and by a collar a A which is free to slide over inclined rod (10) 2. 100 Ib ft 200 lb ft 2 ft 12
Please answer all parts of the question and try making it simple
to understand.
4-102 Replace the loading system acting on the post by an equivalent resultant force and couple moment at point A 650 N 500 N 30° 300 N 1500 N m 60° 3 m 5-10. Determine the components of the support reactions at the fixed support A on the cantilevered beam 6 KN 1.5 m 4 kN 1.5 m 1.5 m Determine the reactions at the supports....
Solve for each of the problems below.
400 N/m 200 N/m 4 m 8. Determine the force in each member of the truss and state if the members are in tension or compression. (a) Use 0-0 (b) Use 030 kN 15 m 2 m 4 KN 9. A uniform rod has a length I and weight W. It is supported at its left end A by a smooth wall and at its right end by a cord of length s...
6.10
reactions and all internal forces
3m 6.9 and 6.10 Determine the force in each member of the truss shown. State whether each member is in tension (1) or compression (C). A 12.5 kN 12.5 kN 12.5 kN 12.5 KN 8 KN Fig. P6.9 2.5 m Fig. P6.10 6.11 Determine the force in each member of the Gambrel roof truss shown. State whether each member is in tension (T) or compression (C). 600 lb 600 lb 600 lb 2 ft...
2. The T shaped member with a smooth pin at A and a link at B, and a 10 lb mass (star in the figure) as shown. Determine the reactions at A and if the link is in tension or compression at link BC. Include a FBD as part of your solution. 7 ft 14 ft 10 lb link 3. Determine the forces FAB and FAD acting in the members of the truss shown below. Use the Method of Joints...
Problem No. 1: For the truss shown a) Determine the support reactions at A and G b) Using the methods of joints, determine the force in all members and indicate if the member is in tension (T) or compression (C). Assume all connections are pins 100 KN 4 m 4 m B 4 m H .. m
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
Final Exam 2. Analyze the truss shown below: (50 Points) a. Solve for the reactions at supports A and D b. Determine the force developed in members FE, EB, and BC of the truss, and state if these members are in tension or compression. Use the method of sections, c. Draw a free body diagram (FBD) of: i. The entire truss, without its supports ii. The truss section after cutting it iii. Any joint that you solve. m 1 m...
Part A - Determining the forces in three
specified members of the truss
Determine the forces in members CD, DH, and
GH.
Express the magnitudes of the forces in pounds to three
significant figures. Separate your answers with commas.
Part B - The Sense of the Forces
State if the members considered in part A are in tension or
compression.
Complete each sentenc
e by dragging the appropriate word into the blank. The words can
be used more than once....
Part A The bent rod is supported by a smooth surface at B and by a collar at A which is fxed to the rod and is free to slide over the fixed inclined rod Suppose that F- 100 lb and M-300 Ib ft.(Figure 1) Determine the magnitude of the reaction force on the rod at B. Express your answer to three significant figures and include the appropriate units. HA ? Ng Value Units Submit Request Answer Part B Determine...
