structural analysis 2- Determine the slope and deflection at mid span 25 kN/m 1. D #m--...

Question

Question

structural analysis

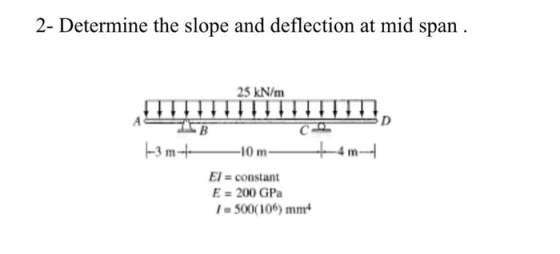

2- Determine the slope and deflection at mid span 25 kN/m 1. D #m-- -В 1-3 m +- -10 m- El = constant E = 200 GPS 1 - 500(106)

engineering Civil-Engineering

Answer 1

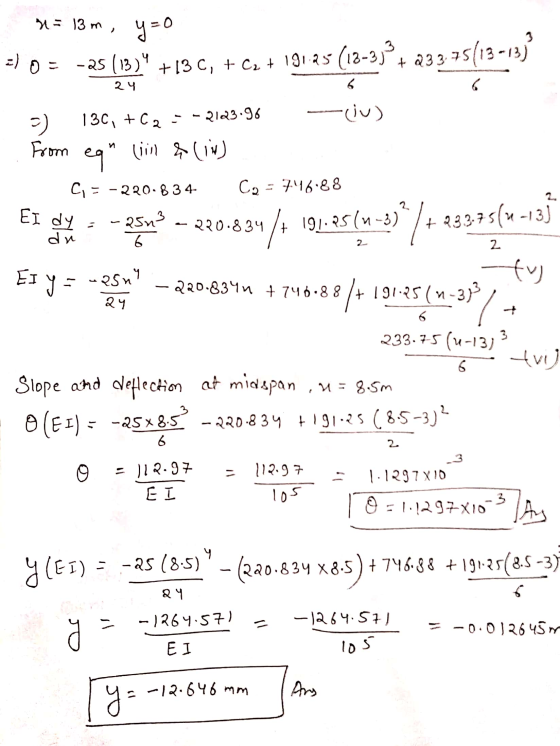

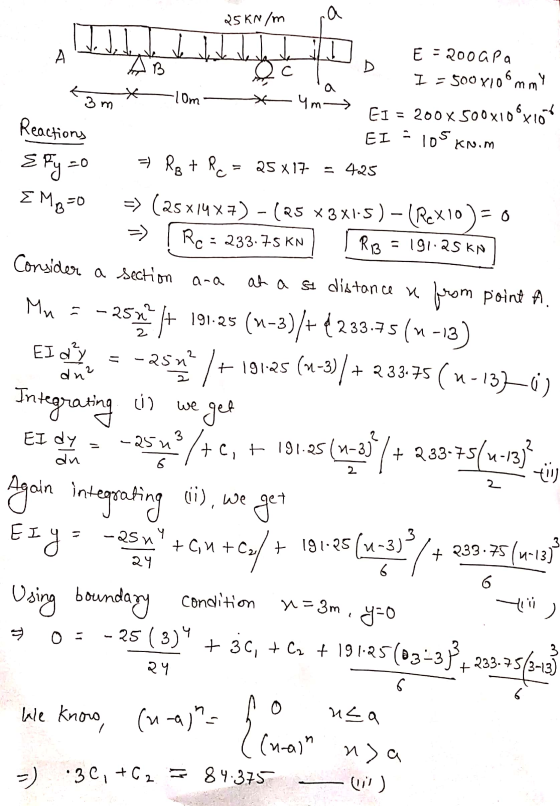

Answer #1

Answer 2
