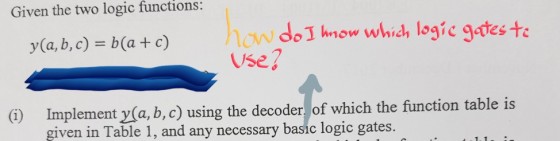

Given the two logic functions: how dol know which logic gotes tc Use y(a, b, c)...
[4] (a) For the given expression draw the TRUTH TABLE Y = A B C+A.BC (b) From the truth table derive the POS EXPRESSION and implement it by basic gates (c) Redraw the logic diagram by using only universal gates. [1+1+2=4]
Q2A: Truth tables of three logic functions F1, F2 and F3 given above. Implement the function F1, F2 and F3 using 3 to 8 decoder? (Assume a 3to8 decoder component given to you, if required you may use minimum number of additional logic gates to support your design with 3 to 8 decoder) (Points) Q2B: Write HDL code to implement the above function F1, F2 and F3. All three function should include in on HDL code. In you HDL code use...
Given the 3 lines to imes 7413s decoder IC s in Sgre 2 74138 YS Y4 P Y3 Y2- - G2A Figure 2. 74138 Decoder IC a) Fill the following truth table GI G2A G2B 0 X x 1 x X 1 CBA x X 1 0 00 1 0 0 1 1 1 0 0 1 10 5 marks b) Write the expressions ofoutputs y,,--, as functions of the inputs C, B, A c) Use this decoder and logic...
Given the function below, F(w,x,y,z)= x’z+w’z’+w’y a) draw a logic diagram for an implementation which uses only five two-input NOR gates. b) Implement the function of parts a using only four two-input NAND gates. Draw the logic diagram. USE K-MAP TO SOLVE.
3) (10 points) Implement F(A, B, C) = m(0,1,4,7) using an 2-to-1 MUX (use the symbol) and any other basic logic gates necessary (AND, OR, or NOT gates). Show the truth table and minimize any combinational logic (other than the MUX) in sum-of-products form. Use the left most input(s) for the MUX select input(s) in your schematic.
Procedure Given the following switching functions with four inputs, a, b, c, and d and three outputs, F2, F1, Fo, F2 (a, b,c,d) = Em (3,4,6,9, 11) F (a, b, c, d) =m (2, 4, 8, 10, 11, 12) Fo (a, b, c, d) =ăm (4, 6, 9, 14, 15) 1. Design the switching functions using 8:1 MUXs. 2. Design the switching using 4:16 Decoder and minimal logic gates. 3. Design the switching functions using a ROM. 4. Design a...
Consider the following logic functions with a, b, c, d, e as logic inputs, x and y as intermediate outputs, and fis the output. :=e(d + x) 5 a) Implement the logic function fas a 3-stage precharged dynamic complex CMOS circuit using inverter between two consecutive stages. b) Implement the logic function fas a 3-stage precharged dynamic complex CMOS circuit using NP logic
Multiplexer Example Implement the following Boolean function using a 4x1 Mux; F(x,y,z) = Σ (1,2,6,7) Decoder Example Implement the following functions for a full adder using decoder; S(x,y,z) = Σ (1,2,4,7) C(x,y,z) = Σ (3,5,6,7) Implement the following Boolean function; F(x,y,z) = Σ (0,2,3,7): Using; 1. Two 2x4 decoders and logic gates 2. One 4x1 multiplexer Decoder . Draw the truth table for the function to be implemented. . Pick the terms for output. . Derive appropriate logic to combine terms. . Use two 2x4 decoders to make one3x8 decoder. . Pay attention to fact...
Class 24 1. Given the shorthand POS expression F(a,b,c,d) П M (0,6,7,8) (b + c + d)(a + D+ ē): a. (25 points) Implement F using one 4-to-16 decoder and one OR gate of any size. b. (25 points) Implement F using four 2-40-4 decoders and one OR gate of any size. c. (25 points) Implement F using just two 8-to-3 encoders, NOT gates, and one AND gate of any size. Hint: given NOT gates and an AND gate to...
There are two multiplexers in the following circuit. The three ports A, B, C are inputs, and s) uput(1) Write a truth table for the logic function Y F(A, B, C) of the following cirouit (2) ne inimized Boolean equation for the logic function. B C 01 10 ground P. (5 pts). Use a decoder to implement the following Boolean logic function: Y= AB+AC. Draw schematic of your circuit.
