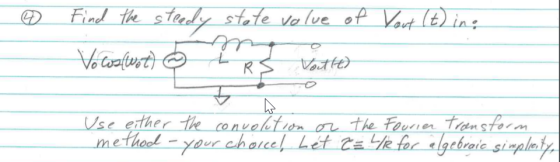

Find the steady state value of Vout

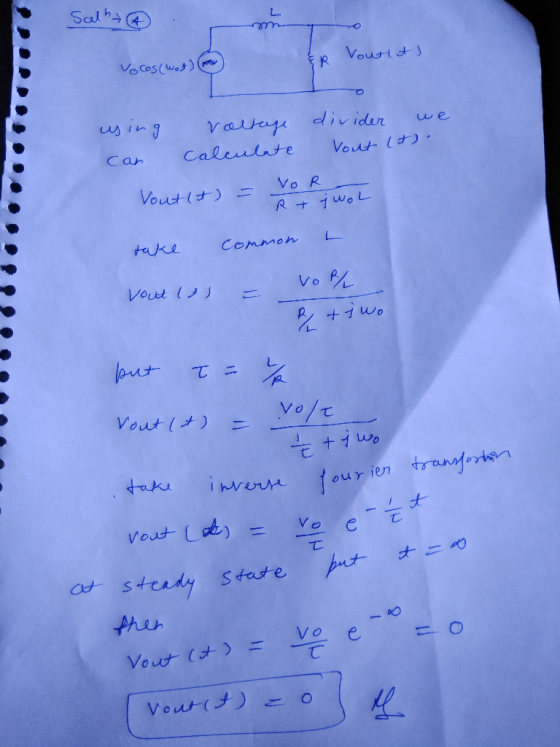

Homework Answers
Add Answer to:
Find the steady state value of Vout
Fiad the staly state velve of Vt Eins the...
thank you! 1. Find the steady-state value of v, for the circuit shown 0.6H (200/3) 502...
thank you!
1. Find the steady-state value of v, for the circuit shown 0.6H (200/3) 502 i(t) 0.4mH vſt) v (t) i(t) = 10cos (5000t) A v(t) = 20cos (50001-90°) V 2. Find the steady-state value of v, for the circuit shown 62500 i(t) 25kg 3.2n i vt) 250mH i(t) = 6cos (25,000t) mA
Find the steady state of Vout and plot it in a log-log plot
Find the steady state of Vout and plot it in a log-log plot
Fiod the stray stte valuePVt(e nt sTsTete Va lue
Fiod the stray stte valuePVt(e nt sTsTete Va lue
Tp =p Steady state vector Given a distribution vector at a specific time Vt, the next...
Tp =p Steady state vector Given a distribution vector at a specific time Vt, the next distribution is given by multiplying by the transition matrix, Vt+1 = Tvt. Markov chains can be used in many applications, such as population dynamics, disease evolution, communication systems, political affiliation, etc. For this kind of systems, the steady state vector is a limit of the population distribution due to the system. This can be found as an eigenvector with eigenvalue 1. For your project,...
Problem 8 Find Vout for the following circuit under steady state conditions using voltage divider relations....
Problem 8 Find Vout for the following circuit under steady state conditions using voltage divider relations. Plot the magnitude and phase of Vout over a frequency range that clearly demonstrates the characteristics of this circuit. Does the circuit display a resonance? 200 V.cos(ot) ( 2uF Vout 0.1 H
Find the steady state probability vector for the matrix. An eigenvector v of an n ×...
Find the steady state probability vector for the matrix. An
eigenvector v of an n × n matrix
A is a steady state probability vector when
Av = v and the
components of v sum to 1.
Find the steady state probability vector for the matrix. An eigenvector v of an n x n matrix A is a steady state probability vector when Av = v and the components of v sum to 1. 0.9 0.4 A = 0.1 0.6
Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure...
Use the node-voltage method to find the steady-state expression
for vo(t) in the circuit in (Figure 1) if
vg1= 19 sin(400t+143.13∘)V,
vg2= 18.03cos(400t+33.69∘)V.
Write the steady-state expression for vo(t) as vo=Vocos(ωt+ϕ),
where −180∘<ϕ≤180∘.
EE 211/EE 212 FA19 Circuits Analysis for Engineers KEE 211/212 HW #10 -- Impedances, Sinusoidal Steady State Analysis Problem 9.57 PSpicelMultisim Use the node-voltage method to find the steady-state expression for (t) in the circuit in (Figure 1) if gl19 sin(400t143.13°) V. g218.03 cos(400t 33.69o) V. Write...
8.51. Find the ac steady-state value of iL(t) 4 S2 2 52 22 100 cos 10t...
8.51. Find the ac steady-state value of iL(t) 4 S2 2 52 22 100 cos 10t V 10 S2 2 H PROBLEM P8.51 00 T
8.51. Find the ac steady-state value of iL(t) 4 S2 2 52 22 100 cos 10t V 10 S2 2 H PROBLEM P8.51 00 T
Use the node-voltage method to find the steady-state expression for io in the circuit seen in...
Use the node-voltage method to find the steady-state expression
for io in the circuit seen in (Figure 1) if ig= 6 cos2500tA
and
vg= 20 cos(2500t+90∘)V.
Write the steady-state expression for io(t) as io=Iocos(ωt+ϕ),
where −180∘<ϕ≤180∘.
Assignment 8 Problem 9.56 13 of 19 > Review I Constants Part A Use the node-voltage method to find the steady-state expression ror io in the circuit seen in (Figure 1)T = 6 cos 2500t A and Find the numerical value of 2250090) V...
Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure...
Use the node-voltage method to find the steady-state expression
for vo(t) in the circuit in (Figure 1) if
vg1= 10 sin(400t+143.13∘)V,
vg2= 18.03cos(400t+33.69∘)V.
Write the steady-state expression for vo(t) as vo=Vocos(ωt+ϕ),
where −180∘<ϕ≤180∘.
Find the numerical value of Vo.
Find the numerical value of ϕ.
Find the numerical value of ω.
50 mH 1500
1. Find the steady-state value of v, for the circuit shown 0.6mH (200/3) uF 5Q i(t)...
1. Find the steady-state value of v, for the circuit shown 0.6mH (200/3) uF 5Q i(t) 0.4mH t v (t) i (t)10cos (5000t) A v (t) 20cos (5000t-90°) v
thank you!
1. Find the steady-state value of v, for the circuit shown 0.6H (200/3) 502 i(t) 0.4mH vſt) v (t) i(t) = 10cos (5000t) A v(t) = 20cos (50001-90°) V 2. Find the steady-state value of v, for the circuit shown 62500 i(t) 25kg 3.2n i vt) 250mH i(t) = 6cos (25,000t) mA
Find the steady state of Vout and plot it in a log-log plot
Fiod the stray stte valuePVt(e nt sTsTete Va lue
Fiod the stray stte valuePVt(e nt sTsTete Va lue
Tp =p Steady state vector Given a distribution vector at a specific time Vt, the next distribution is given by multiplying by the transition matrix, Vt+1 = Tvt. Markov chains can be used in many applications, such as population dynamics, disease evolution, communication systems, political affiliation, etc. For this kind of systems, the steady state vector is a limit of the population distribution due to the system. This can be found as an eigenvector with eigenvalue 1. For your project,...
Problem 8 Find Vout for the following circuit under steady state conditions using voltage divider relations. Plot the magnitude and phase of Vout over a frequency range that clearly demonstrates the characteristics of this circuit. Does the circuit display a resonance? 200 V.cos(ot) ( 2uF Vout 0.1 H
Find the steady state probability vector for the matrix. An
eigenvector v of an n × n matrix
A is a steady state probability vector when
Av = v and the
components of v sum to 1.
Find the steady state probability vector for the matrix. An eigenvector v of an n x n matrix A is a steady state probability vector when Av = v and the components of v sum to 1. 0.9 0.4 A = 0.1 0.6
Use the node-voltage method to find the steady-state expression
for vo(t) in the circuit in (Figure 1) if
vg1= 19 sin(400t+143.13∘)V,
vg2= 18.03cos(400t+33.69∘)V.
Write the steady-state expression for vo(t) as vo=Vocos(ωt+ϕ),
where −180∘<ϕ≤180∘.
EE 211/EE 212 FA19 Circuits Analysis for Engineers KEE 211/212 HW #10 -- Impedances, Sinusoidal Steady State Analysis Problem 9.57 PSpicelMultisim Use the node-voltage method to find the steady-state expression for (t) in the circuit in (Figure 1) if gl19 sin(400t143.13°) V. g218.03 cos(400t 33.69o) V. Write...
8.51. Find the ac steady-state value of iL(t) 4 S2 2 52 22 100 cos 10t V 10 S2 2 H PROBLEM P8.51 00 T
8.51. Find the ac steady-state value of iL(t) 4 S2 2 52 22 100 cos 10t V 10 S2 2 H PROBLEM P8.51 00 T
Use the node-voltage method to find the steady-state expression
for io in the circuit seen in (Figure 1) if ig= 6 cos2500tA
and
vg= 20 cos(2500t+90∘)V.
Write the steady-state expression for io(t) as io=Iocos(ωt+ϕ),
where −180∘<ϕ≤180∘.
Assignment 8 Problem 9.56 13 of 19 > Review I Constants Part A Use the node-voltage method to find the steady-state expression ror io in the circuit seen in (Figure 1)T = 6 cos 2500t A and Find the numerical value of 2250090) V...
Use the node-voltage method to find the steady-state expression
for vo(t) in the circuit in (Figure 1) if
vg1= 10 sin(400t+143.13∘)V,
vg2= 18.03cos(400t+33.69∘)V.
Write the steady-state expression for vo(t) as vo=Vocos(ωt+ϕ),
where −180∘<ϕ≤180∘.
Find the numerical value of Vo.
Find the numerical value of ϕ.
Find the numerical value of ω.
50 mH 1500
1. Find the steady-state value of v, for the circuit shown 0.6mH (200/3) uF 5Q i(t) 0.4mH t v (t) i (t)10cos (5000t) A v (t) 20cos (5000t-90°) v
