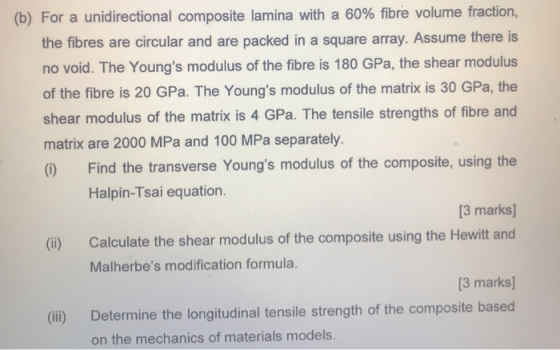

(b) For a unidirectional composite lamina with a 60% fibre volume fraction, the fibres are circular...
An unidirectional Glass fibre Epoxy Composite laminate is produced with fibre volume percentage of 40. If...
An unidirectional Glass fibre Epoxy Composite laminate is produced with fibre volume percentage of 40. If the modulus of elasticity of the fibre and matrix are 74 GPa and 2.4 GPa respectively, determine the young's modulus of the composite in the longitudinal transverse directions.
A unidirectional continuous fibre reinforced composite is to be manufactured so that the fibres carry 90%...
A unidirectional continuous fibre reinforced composite is to be manufactured so that the fibres carry 90% of a load in the longitudinal direction. The moduli of elasticity of the fibre and matrix materials are 125 GPa and 2.6 GPa respectively. Determine: i) The volume fraction of fibres that will be required ii) The longitudinal and transverse elastic moduli of the resulting composite.
2. For a graphite/epoxy unidirectional lamina (un-oriented lamina), find the following: ,--3 MPa 1) Compliance matrix...
2. For a graphite/epoxy unidirectional lamina (un-oriented lamina), find the following: ,--3 MPa 1) Compliance matrix 2) Stiffness matrix 3) Resultant strain under the applied stresses 12-4 MP 2 MPa τ12 Typical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphitel epoxy epoxy Property Symbol Units epoxy Fiber volume fraction Longitudinal elastic modulus E Transverse elastic modulus E, Major Poisson's ratio Shear modulus Ultimate longitudinal tensile (σ1he 0.45 0.70 10.30 7.17 GPa GPa 38.6 8.27 18.50...
For a continuous unidirectional fibre-reinforced composite, the modulus of elasticity in the longitudinal (fibre) direction is...
For a continuous unidirectional fibre-reinforced composite, the modulus of elasticity in the longitudinal (fibre) direction is 32.5 GPa and the modulus of elasticity in the transverse direction is 6.5 GPa. If the fibre volume fraction is 0.33, determine the modulus of elasticity of the fibre and matrix phases.
235 Find the off-axis shear strength and mode of failure of a 60 boron/ epoxy lamina. Use the pro...
235 Find the off-axis shear strength and mode of failure of a 60 boron/ epoxy lamina. Use the properties of a unidirectional boron/epoxy lamina from Table 2.1. Apply the maximum stress failure, maximum strain, Tsai-Hill, and Tsai-Wu failure theories. TABLE 2.1 Tvpical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphite/ Property SymbolUnits epoxy epoxy epoxy Fiber volume fraction Longitudinal elastic modulus Transverse elastic modulus Major Poisson's ratio Shear modulus Ultimate longitudinal tensile strength Ultimate longitudinal...
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and ep...
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and epoxy from Table 3.1 and Table 3.2. Assume the fibers have circular cross-section and are in a square array packing. 1-52.0-$01674870 225 47 Find 208 Mechanics of Composite Materials, Second Edi Convert PO or Excel Orl Select PDF I TABLE 3.1 Typical Properties of Fibers (SI System of Units) Units Graphite Glass...
For an aligned carbon fibre-epoxy matrix composite having a 0.25 volume fraction of fibres, compute the...
For an aligned carbon fibre-epoxy matrix composite having a 0.25 volume fraction of fibres, compute the critical fibre length = Assuming the following: 1) an average fiber diameter of 7.80 x 10 mm 2) an average fiber length of 9.3 mm 3) a fiber fracture strength of 4.5 GPa 4) a fiber-matrix bond strength of 75 MPa 5) a matrix stress at composite failure of 6.0 MPa 6) a matrix tensile strength of 60 MPa. Express answers with three significant...
Assume a composite made from a fibre volume fraction of 50% using uni directional, continuous fibres...
Assume a composite made from a fibre volume fraction of 50% using uni directional, continuous fibres and a thermoset matrix. Sketch one stress-strain diagram showing the expected tensile behaviour of the fibre, matrix and composite, loaded in a direction parallel with the fibre orientation Use the following values for the properties of the matrix and fibre: Strain to failure (% Strength (GPa) Fibre 2 Matrix 0.3 10
Assume a composite made from a fibre volume fraction of 50% using uni...
Q1) For a unidirectional carbon fiber reinforced lamina composites, fiber volume fraction 0.65, En-300 GPa, En...
Q1) For a unidirectional carbon fiber reinforced lamina composites, fiber volume fraction 0.65, En-300 GPa, En = 30 G Pa, Gn2-40 G Pa while for matrix, Gm-10 GPa, Em-3 GPa Determine the longitudinal and transverse moduli of the composites, and the shear modulus of the composites.
Question 1. A continuous and aligned fibre-reinforced composite material is to be produced consisting of 40...
Question 1. A continuous and aligned fibre-reinforced composite material is to be produced consisting of 40 vol % glass fibres and 60 vol % of an epoxy matrix. The mechanical characteristics of these two materials are as follows: MaterialModulus of Elasticity rcture Strength (GPa) (MPa) 2500 Glass Fibre 76 Epoxy 3.35 58 For this composite material, estimate by calculation the following parameters: i. The longitudinal tensile strength ii. The longitudinal modulus of elasticity
An unidirectional Glass fibre Epoxy Composite laminate is produced with fibre volume percentage of 40. If the modulus of elasticity of the fibre and matrix are 74 GPa and 2.4 GPa respectively, determine the young's modulus of the composite in the longitudinal transverse directions.
2. For a graphite/epoxy unidirectional lamina (un-oriented lamina), find the following: ,--3 MPa 1) Compliance matrix 2) Stiffness matrix 3) Resultant strain under the applied stresses 12-4 MP 2 MPa τ12 Typical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphitel epoxy epoxy Property Symbol Units epoxy Fiber volume fraction Longitudinal elastic modulus E Transverse elastic modulus E, Major Poisson's ratio Shear modulus Ultimate longitudinal tensile (σ1he 0.45 0.70 10.30 7.17 GPa GPa 38.6 8.27 18.50...
235 Find the off-axis shear strength and mode of failure of a 60 boron/ epoxy lamina. Use the properties of a unidirectional boron/epoxy lamina from Table 2.1. Apply the maximum stress failure, maximum strain, Tsai-Hill, and Tsai-Wu failure theories. TABLE 2.1 Tvpical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphite/ Property SymbolUnits epoxy epoxy epoxy Fiber volume fraction Longitudinal elastic modulus Transverse elastic modulus Major Poisson's ratio Shear modulus Ultimate longitudinal tensile strength Ultimate longitudinal...
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and epoxy from Table 3.1 and Table 3.2. Assume the fibers have circular cross-section and are in a square array packing. 1-52.0-$01674870 225 47 Find 208 Mechanics of Composite Materials, Second Edi Convert PO or Excel Orl Select PDF I TABLE 3.1 Typical Properties of Fibers (SI System of Units) Units Graphite Glass...
For an aligned carbon fibre-epoxy matrix composite having a 0.25 volume fraction of fibres, compute the critical fibre length = Assuming the following: 1) an average fiber diameter of 7.80 x 10 mm 2) an average fiber length of 9.3 mm 3) a fiber fracture strength of 4.5 GPa 4) a fiber-matrix bond strength of 75 MPa 5) a matrix stress at composite failure of 6.0 MPa 6) a matrix tensile strength of 60 MPa. Express answers with three significant...
Assume a composite made from a fibre volume fraction of 50% using uni directional, continuous fibres and a thermoset matrix. Sketch one stress-strain diagram showing the expected tensile behaviour of the fibre, matrix and composite, loaded in a direction parallel with the fibre orientation Use the following values for the properties of the matrix and fibre: Strain to failure (% Strength (GPa) Fibre 2 Matrix 0.3 10
Assume a composite made from a fibre volume fraction of 50% using uni...
Q1) For a unidirectional carbon fiber reinforced lamina composites, fiber volume fraction 0.65, En-300 GPa, En = 30 G Pa, Gn2-40 G Pa while for matrix, Gm-10 GPa, Em-3 GPa Determine the longitudinal and transverse moduli of the composites, and the shear modulus of the composites.
Question 1. A continuous and aligned fibre-reinforced composite material is to be produced consisting of 40 vol % glass fibres and 60 vol % of an epoxy matrix. The mechanical characteristics of these two materials are as follows: MaterialModulus of Elasticity rcture Strength (GPa) (MPa) 2500 Glass Fibre 76 Epoxy 3.35 58 For this composite material, estimate by calculation the following parameters: i. The longitudinal tensile strength ii. The longitudinal modulus of elasticity
