For a continuous unidirectional fibre-reinforced composite, the modulus of elasticity in the longitudinal (fibre) direction is...

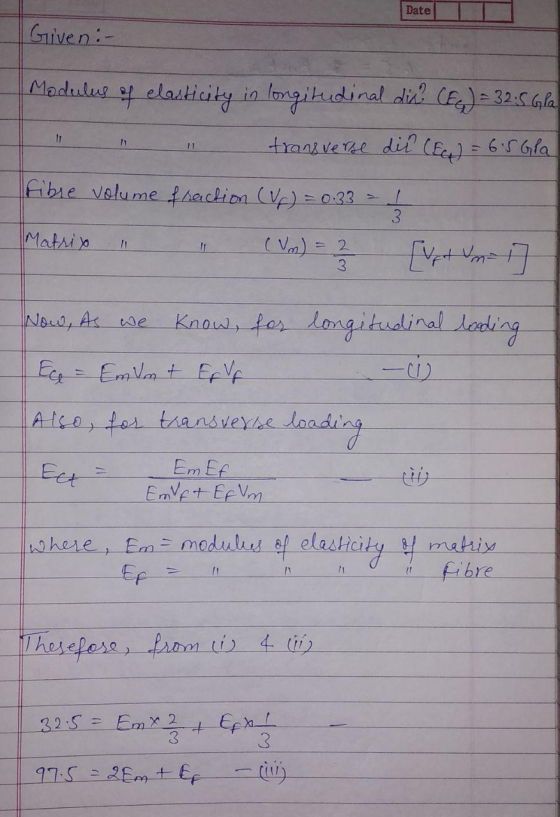

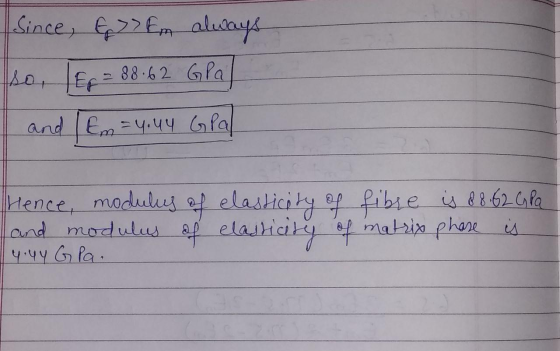

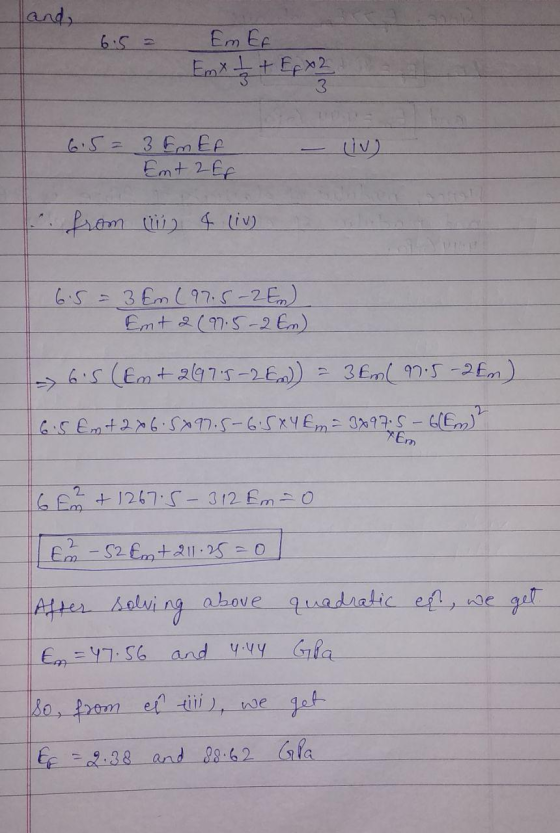

For a continuous unidirectional fibre-reinforced composite, the modulus of elasticity in the longitudinal (fibre) direction is 32.5 GPa and the modulus of elasticity in the transverse direction is 6.5 GPa. If the fibre volume fraction is 0.33, determine the modulus of elasticity of the fibre and matrix phases.
Homework Answers
Add Answer to:
For a continuous unidirectional fibre-reinforced composite, the
modulus of elasticity in the longitudinal (fibre) direction is...
A unidirectional continuous fibre reinforced composite is to be manufactured so that the fibres carry 90%...
A unidirectional continuous fibre reinforced composite is to be manufactured so that the fibres carry 90% of a load in the longitudinal direction. The moduli of elasticity of the fibre and matrix materials are 125 GPa and 2.6 GPa respectively. Determine: i) The volume fraction of fibres that will be required ii) The longitudinal and transverse elastic moduli of the resulting composite.
For a continuous and aligned fiber-reinforced composite, the modulus of elasticity in the longitudinal directions is...
For a continuous and aligned fiber-reinforced composite, the modulus of elasticity in the longitudinal directions is 39.4 GPa. If the volume fraction of fibers is 0.60 and the modulus of elasticity of matrix phase is 2.67 GPa, determine the modulus of elasticity of the composite in transverse direction. O 6.28 GP 4.25 GP 4.37 GPa O 6.40 GPS
An unidirectional Glass fibre Epoxy Composite laminate is produced with fibre volume percentage of 40. If...
An unidirectional Glass fibre Epoxy Composite laminate is produced with fibre volume percentage of 40. If the modulus of elasticity of the fibre and matrix are 74 GPa and 2.4 GPa respectively, determine the young's modulus of the composite in the longitudinal transverse directions.
(b) For a unidirectional composite lamina with a 60% fibre volume fraction, the fibres are circular...
(b) For a unidirectional composite lamina with a 60% fibre volume fraction, the fibres are circular and are packed in a square array. Assume there is no void. The Young's modulus of the fibre is 180 GPa, the shear modulus of the fibre is 20 GPa. The Young's modulus of the matrix is 30 GPa, the shear modulus of the matrix is 4 GPa. The tensile strengths of fibre and matrix are 2000 MPa and 100 MPa separately. (1) Find...
A unidirectional glass fiber-epoxy matrix composite containing 65 vol% fiber, calculate the modulus of elasticity in...
A unidirectional glass fiber-epoxy matrix composite containing 65 vol% fiber, calculate the modulus of elasticity in the longitudinal direction and the transverse direction. Epoxy has a density of 1.54 g/cm3, modulus of elasticity of 3.5 GPa, yield strength of 60 MPa, tensile strength of 95 MPa, and Poisson’s ratio of 0.33. Glass fiber has a Poisson’s ratio of 0.22.
Question 1. A continuous and aligned fibre-reinforced composite material is to be produced consisting of 40...
Question 1. A continuous and aligned fibre-reinforced composite material is to be produced consisting of 40 vol % glass fibres and 60 vol % of an epoxy matrix. The mechanical characteristics of these two materials are as follows: MaterialModulus of Elasticity rcture Strength (GPa) (MPa) 2500 Glass Fibre 76 Epoxy 3.35 58 For this composite material, estimate by calculation the following parameters: i. The longitudinal tensile strength ii. The longitudinal modulus of elasticity
A unidirectional fiber reinforced composite is made from fibers and matrix with the following properties; (Ef=...
A unidirectional fiber reinforced composite is made from fibers and matrix with the following properties; (Ef= 400 GPa, Em = 4 GPa, modulus of elasticity of fiber and matrix respectively), (G12f= 170 GPa, Gm = 1.43 shear modulus of fiber and matrix), (V12f = 0.2, Vm = 0.4 for Poisson ratios of fiber and matrix respectively). a) Estimate the modulus of elasticity of a unidirectional lamina loaded along the fiber direction. b) Estimate the modulus of elasticity of a unidirectional...
Q4 Acomposite consists of 65% polyester resin is reinforced by continuous and aligned glass fibers. The modulus elasticity of hardened resin is 4 0 GPa and the modulus elasticity of the ibers la...
Q4
Acomposite consists of 65% polyester resin is reinforced by continuous and aligned glass fibers. The modulus elasticity of hardened resin is 4 0 GPa and the modulus elasticity of the ibers la 52.0 GPa. Compute: a. The overall modulus elasticity of composite in the longitudinal direction parallel 04. to fiber direction b. The load carried by each matrix and iber phase, If uniaxial srss of 50 MPa is applied in longitudinal direction on the 250 mm2 cross-sectional area. c....
Subject: Composite Materials Determine the longitudinal modulus E1 and longitudinal tensile strength F1t of a unidirectional...
Subject: Composite Materials
Determine the longitudinal modulus E1 and
longitudinal tensile strength F1t of a unidirectional
carbon/glass composite with the properties:
Vf = 0.45 , E1f = 235 GPa , Em
= 70 Gpa , Fft = 3500 MPa , Fmt = 140 MPa
(*Note: Strength is defined as the composite stress at failure
initiation in one of the phases.)
Determine the longitudinal modulus Ej and longi- tudinal tensile strength F, of a unidirectional carbon/ 5.3 glass composite with the...
Please Answer this in full detailed as I am unable to get the full grasp of this topic a) Calculate the modulus of a cross-ply HS-carbon/epoxy laminate. Longitudinal fibre modulus (En)-230 GPa; trans...
Please Answer this in full detailed as I am unable to get the
full grasp of this topic
a) Calculate the modulus of a cross-ply HS-carbon/epoxy laminate. Longitudinal fibre modulus (En)-230 GPa; transverse fibre modulus (E122)-20 GPa; matrix modulus (En)-3 GPa; fibre volume fraction (V) : 60%. [5 marks] b)(1) Explain the difference in failure of a single fibre in air and a single fibre embedded [5 marks] in a matrix. (2) How can a test that involves the fracture...
For a continuous and aligned fiber-reinforced composite, the modulus of elasticity in the longitudinal directions is 39.4 GPa. If the volume fraction of fibers is 0.60 and the modulus of elasticity of matrix phase is 2.67 GPa, determine the modulus of elasticity of the composite in transverse direction. O 6.28 GP 4.25 GP 4.37 GPa O 6.40 GPS
An unidirectional Glass fibre Epoxy Composite laminate is produced with fibre volume percentage of 40. If the modulus of elasticity of the fibre and matrix are 74 GPa and 2.4 GPa respectively, determine the young's modulus of the composite in the longitudinal transverse directions.
(b) For a unidirectional composite lamina with a 60% fibre volume fraction, the fibres are circular and are packed in a square array. Assume there is no void. The Young's modulus of the fibre is 180 GPa, the shear modulus of the fibre is 20 GPa. The Young's modulus of the matrix is 30 GPa, the shear modulus of the matrix is 4 GPa. The tensile strengths of fibre and matrix are 2000 MPa and 100 MPa separately. (1) Find...
Question 1. A continuous and aligned fibre-reinforced composite material is to be produced consisting of 40 vol % glass fibres and 60 vol % of an epoxy matrix. The mechanical characteristics of these two materials are as follows: MaterialModulus of Elasticity rcture Strength (GPa) (MPa) 2500 Glass Fibre 76 Epoxy 3.35 58 For this composite material, estimate by calculation the following parameters: i. The longitudinal tensile strength ii. The longitudinal modulus of elasticity
A unidirectional fiber reinforced composite is made from fibers and matrix with the following properties; (Ef= 400 GPa, Em = 4 GPa, modulus of elasticity of fiber and matrix respectively), (G12f= 170 GPa, Gm = 1.43 shear modulus of fiber and matrix), (V12f = 0.2, Vm = 0.4 for Poisson ratios of fiber and matrix respectively). a) Estimate the modulus of elasticity of a unidirectional lamina loaded along the fiber direction. b) Estimate the modulus of elasticity of a unidirectional...
Q4
Acomposite consists of 65% polyester resin is reinforced by continuous and aligned glass fibers. The modulus elasticity of hardened resin is 4 0 GPa and the modulus elasticity of the ibers la 52.0 GPa. Compute: a. The overall modulus elasticity of composite in the longitudinal direction parallel 04. to fiber direction b. The load carried by each matrix and iber phase, If uniaxial srss of 50 MPa is applied in longitudinal direction on the 250 mm2 cross-sectional area. c....
Subject: Composite Materials
Determine the longitudinal modulus E1 and
longitudinal tensile strength F1t of a unidirectional
carbon/glass composite with the properties:
Vf = 0.45 , E1f = 235 GPa , Em
= 70 Gpa , Fft = 3500 MPa , Fmt = 140 MPa
(*Note: Strength is defined as the composite stress at failure
initiation in one of the phases.)
Determine the longitudinal modulus Ej and longi- tudinal tensile strength F, of a unidirectional carbon/ 5.3 glass composite with the...
Please Answer this in full detailed as I am unable to get the
full grasp of this topic
a) Calculate the modulus of a cross-ply HS-carbon/epoxy laminate. Longitudinal fibre modulus (En)-230 GPa; transverse fibre modulus (E122)-20 GPa; matrix modulus (En)-3 GPa; fibre volume fraction (V) : 60%. [5 marks] b)(1) Explain the difference in failure of a single fibre in air and a single fibre embedded [5 marks] in a matrix. (2) How can a test that involves the fracture...
