if

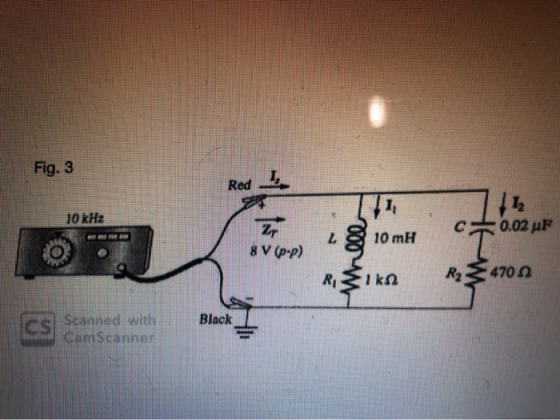

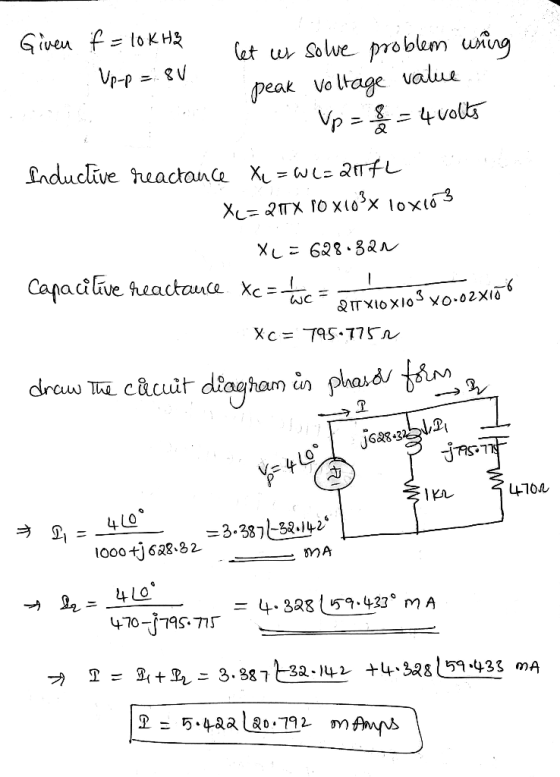

u want peak to peak value multiply all current magnitudes by 2355 SERIES SINUSOIDAL CIRCUITS measared 000 10 mH 10 kHz R E-8V (P-p) Va 1 kn...
355 SERIES SINUSOIDAL CIRCUITS measared 000 10 mH 10 kHz R E-8V (P-p) Va 1 kn Channel 2 Vert: 1 Vidiv. Har: 20 μεiv . Channel I 1 Vidiv Vert Hoc : 20 μdiv. FIG. 9.1 After setting E to 8 V (p-p), determine the peak-to-peak voltage for Ve from chan- (b) nel 2 and record in the top row of Table 9.1. (c) Determine the phase angle e, between E and Vg using the connections shown in Fig. 9.1...
In the current divider network represented in Fig. 3.89, calculate (a) i1 if i = 8 A and i2 = 1 A; (b) v if R1 = 100 k, R2 = 100 k, and i = 1 mA; (c) i2 if i = 20 mA, R1 = 1 , and R2 = 4 ; (d) i1 if i = 10 A, R1 = R2 = 9 ; (e) i2 if i = 10 A, R1 = 100 M,
In the current divider network represented in Fig. 3.89, calculate (a) i1 if i = 8 A and i2 = 1 A; (b) v if R1 = 100 k, R2 = 100 k, and i = 1 mA; (c) i2 if i = 20 mA, R1 = 1 , and R2 = 4 ; (d) i1 if i = 10 A, R1 = R2 = 9 ; (e) i2 if i = 10 A, R1 = 100 M, and R2...
In the current divider network represented in Fig. 3.89, calculate (a) i1 if i = 8 A and i2 = 1 A; (b) v if R1 = 100 k, R2 = 100 k, and i = 1 mA; (c) i2 if i = 20 mA, R1 = 1 , and R2 = 4 ; (d) i1 if i = 10 A, R1 = R2 = 9 ; (e) i2 if i = 10 A, R1 = 100 M,
In the current divider network represented in Fig. 3.89, calculate (a) i1 if i = 8 A and i2 = 1 A; (b) v if R1 = 100 k, R2 = 100 k, and i = 1 mA; (c) i2 if i = 20 mA, R1 = 1 , and R2 = 4 ; (d) i1 if i = 10 A, R1 = R2 = 9 ; (e) i2 if i = 10 A, R1 = 100 M, and R2...
please ignore Qucs questions . Consider the circuit shown in Fig. 1: 1. Given the values...
please ignore Qucs questions .
Consider the circuit shown in Fig. 1: 1. Given the values of the resistors are R;=1.2k12 , Rz=3.3kN and R3=5.6k22, calculate values of the voltages V1, V2 and V3, and the currents I1, I2 and 13 using any other method except Superposition theorem. 2- Verify the results using QUCS. + V 1 + V3 Iz RI R E-15 V E-10 V Fig. 1 3- Consider the circuit shown in Fig. 2: + V I' I'3...
I need a help with my lab, I write all data that get. 355 SERIES SINUSOIDAL...
I need a help with my lab, I write all data that get.
355 SERIES SINUSOIDAL CIRCU CUITS neeseed 000 10 mH 10 kHz + R E-8V(Pp) V 1 kn Channel 2 Vert: 1 Vidiv Hor: 20 us/div. Channel 1 Vert: 1 Vidiv Hor: 20 us/div. FIG. 9.1 (b) After setting E to 8 V (p-p), determine the peak-to-peak voltage for Ve from chan- nel 2 and record in the top row of Table 9.1 Determine the phase angle 8,...
How do you draw the phasor diagram? L=3.3 mH C=0.39 uF R=100 ohms in case you...
How do you draw the phasor diagram?
L=3.3 mH
C=0.39 uF
R=100 ohms
in case you need it in order to see table 2 work
2. Based on the calculated phase angles Peneos, or Pexp in Table 2, draw a phasor diagram for each of the two frequencies: f = 1000 Hz and 8000 Hz, and complete the following two statements. (a) At f = 8000_Hz, the voltage (1) across the signal generator leads the current (i). (b) At f...
I need help with numbers 4,6,7,8,9 please? 12 VDC 1.0 k ohms 10k ohms C3 1.0 uF C1 1.0 UF , R Load Baca 1 80 10k ohns 300 mVp-p 1.0 kHz 100 ohms .7k ohms C2 47uF 330 ohms 4. Calculate the following pa...
I need help with numbers 4,6,7,8,9 please?
12 VDC 1.0 k ohms 10k ohms C3 1.0 uF C1 1.0 UF , R Load Baca 1 80 10k ohns 300 mVp-p 1.0 kHz 100 ohms .7k ohms C2 47uF 330 ohms 4. Calculate the following parameters assuming capacitor C2 has been removed from the circuit with the 1.0k2 resistor as the load. RIN BASE Av Vour 5. Construct the circuit shown on the previous page. Before connecting the AC supply, measure...
3 5 P 6 7 8 10 11 12 13 14 An urn contains 10 red...
3 5 P 6 7 8 10 11 12 13 14 An urn contains 10 red balls and 7 yellow balls. If Juan chooses 5 balls at random from the urn, what is the probability that he will select 2 red balls and 3 yellow balls? Round your answer to 3 decimal places. (If necessary, consult a list of formulas.) X Submit Assignment Suppose that the TSH (Thyroid Stimulating Hormone) levels among healthy individuals are normally distributed with a mean...
All missing parts please. (7%) Problem 6: A 16-Ω resistor, 45-uF capacitor, and 3.5-mH inductor are...
All missing parts please.
(7%) Problem 6: A 16-Ω resistor, 45-uF capacitor, and 3.5-mH inductor are connected in series with an AC source of amplitude 13 V and frequency 135 Hz. 8% Part (a) What is the impedance of the circuit, in ohms? 8% Part (b) What is the amplitude of the current in the circuit, in amperes? 8% Part (c) What is the phase constant of the current, in degrees? 8% Part (d) With a source voltage of Vsourc,-Vocos(2π...
Need help. command or explanation. 3. Given the matrix A [3 7 4ti 5; 0 -i...
Need help.
command or explanation. 3. Given the matrix A [3 7 4ti 5; 0 -i -1 4; 3 8 4 -1] where i represents the imaginary number, run each of the commands below and explain the observed result. a. A c. A(10) f. A (I1 3], 13 2]) g. [A: A (end-1,:)1 h. A(, 12 4 1 3]) k. 1. m. n. o. p. sum (A) sum (A, 2) [A; sum (A) ] numel (A) B = reshape (A,...
355 SERIES SINUSOIDAL CIRCUITS measared 000 10 mH 10 kHz R E-8V (P-p) Va 1 kn Channel 2 Vert: 1 Vidiv. Har: 20 μεiv . Channel I 1 Vidiv Vert Hoc : 20 μdiv. FIG. 9.1 After setting E to 8 V (p-p), determine the peak-to-peak voltage for Ve from chan- (b) nel 2 and record in the top row of Table 9.1. (c) Determine the phase angle e, between E and Vg using the connections shown in Fig. 9.1...
please ignore Qucs questions .
Consider the circuit shown in Fig. 1: 1. Given the values of the resistors are R;=1.2k12 , Rz=3.3kN and R3=5.6k22, calculate values of the voltages V1, V2 and V3, and the currents I1, I2 and 13 using any other method except Superposition theorem. 2- Verify the results using QUCS. + V 1 + V3 Iz RI R E-15 V E-10 V Fig. 1 3- Consider the circuit shown in Fig. 2: + V I' I'3...
I need a help with my lab, I write all data that get.
355 SERIES SINUSOIDAL CIRCU CUITS neeseed 000 10 mH 10 kHz + R E-8V(Pp) V 1 kn Channel 2 Vert: 1 Vidiv Hor: 20 us/div. Channel 1 Vert: 1 Vidiv Hor: 20 us/div. FIG. 9.1 (b) After setting E to 8 V (p-p), determine the peak-to-peak voltage for Ve from chan- nel 2 and record in the top row of Table 9.1 Determine the phase angle 8,...
How do you draw the phasor diagram?
L=3.3 mH
C=0.39 uF
R=100 ohms
in case you need it in order to see table 2 work
2. Based on the calculated phase angles Peneos, or Pexp in Table 2, draw a phasor diagram for each of the two frequencies: f = 1000 Hz and 8000 Hz, and complete the following two statements. (a) At f = 8000_Hz, the voltage (1) across the signal generator leads the current (i). (b) At f...
I need help with numbers 4,6,7,8,9 please?
12 VDC 1.0 k ohms 10k ohms C3 1.0 uF C1 1.0 UF , R Load Baca 1 80 10k ohns 300 mVp-p 1.0 kHz 100 ohms .7k ohms C2 47uF 330 ohms 4. Calculate the following parameters assuming capacitor C2 has been removed from the circuit with the 1.0k2 resistor as the load. RIN BASE Av Vour 5. Construct the circuit shown on the previous page. Before connecting the AC supply, measure...
3 5 P 6 7 8 10 11 12 13 14 An urn contains 10 red balls and 7 yellow balls. If Juan chooses 5 balls at random from the urn, what is the probability that he will select 2 red balls and 3 yellow balls? Round your answer to 3 decimal places. (If necessary, consult a list of formulas.) X Submit Assignment Suppose that the TSH (Thyroid Stimulating Hormone) levels among healthy individuals are normally distributed with a mean...
All missing parts please.
(7%) Problem 6: A 16-Ω resistor, 45-uF capacitor, and 3.5-mH inductor are connected in series with an AC source of amplitude 13 V and frequency 135 Hz. 8% Part (a) What is the impedance of the circuit, in ohms? 8% Part (b) What is the amplitude of the current in the circuit, in amperes? 8% Part (c) What is the phase constant of the current, in degrees? 8% Part (d) With a source voltage of Vsourc,-Vocos(2π...
Need help.
command or explanation. 3. Given the matrix A [3 7 4ti 5; 0 -i -1 4; 3 8 4 -1] where i represents the imaginary number, run each of the commands below and explain the observed result. a. A c. A(10) f. A (I1 3], 13 2]) g. [A: A (end-1,:)1 h. A(, 12 4 1 3]) k. 1. m. n. o. p. sum (A) sum (A, 2) [A; sum (A) ] numel (A) B = reshape (A,...
