Add Answer to:
Derive Equation 8

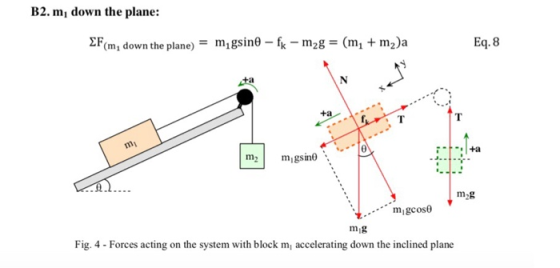

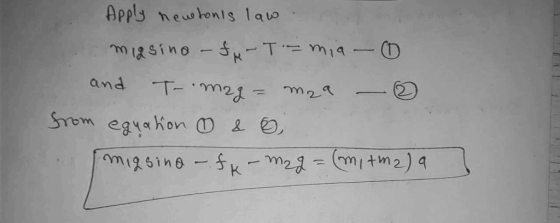

B2. mi down the plane: Σ Omi down the plane)-m18sin9-fk_m2gs(m1 + m2)a Eq.8...
I am confused when they say the "the force down the plane has the sine component...
I am confused when they say
the "the force down the plane has the sine component and the normal
force and force into the plane have the cosine component." Also
aren't I only suppose to look at a certain component of the weight
force? If you could please label all the forces, their direction,
and whether they would be sine or cosine that would be greatly
appreciated, thank you!
Question 4 Consider the pulley system below. Find the acceleration of...
Figure 4: Top view of force table. (3) Figure 5 is an inclined-plane system that will...
Figure 4: Top view of force table. (3) Figure 5 is an inclined-plane system that will be stud- ied in the first part of this experiment. As labelled in the figure, the x (y) direction is parallel (perpendicular) to the inclined plane, and the gravitational acceleration is downward. If the hanging mass m is too small, the block mass M on the inclined plane slides down. When the hanging mass is gradually increased to a lower-bound value mi such that...
A block of mass m1 rests on a frictionless inclined plane as shown. The inclined plane,...
A block of mass m1 rests on a frictionless inclined plane as
shown. The inclined plane, which has mass m2, rests on a
frictionless floor. Find the accelerations of both blocks with
respect to the inertial reference frame provided by the floor.
Hint: there are several different ways of doing this problem. You
may write the equation of motion of the top block in the
accelerating reference frame of the bottom block. You may instead
write everything in an inertial...
4) A block of mass m1 = 3.7kg on a frictionless plane, inclined at an angle...
4) A block of mass m1 = 3.7kg on a frictionless plane, inclined at an angle of 0 = 30°, is connected by a cord over a massless, frictionless pulley to a second of mass m2 = 4.3 kg. Refer to the accompanying figure below. a) What is the acceleration of the hanging block? b) What is the tension in the cord? N 2 2 M2 J Mig 1 30° a) T-mg = ma Tsino-m, g=m, a x m, atmig...
A small block (m1 = 4.0 kg) rests on an inclined plane (m2 = 12.0 kg,...
A small block (m1 = 4.0 kg) rests on an inclined plane (m2 = 12.0 kg, ? = 53.13?). The coeffi- cients of static and kinetic friction between the surfaces of the block and the ramp are, respectively, ?s = 0.333 and ?k = 0.200. A force F?P pushes horizontally on the inclined plane to the right, causing the system to accelerate. If the force F?P is too large, the small block will slide up the ramp, whereas, if the...
M1 m2 Figure 1: 2dof 1. Consider the system above. Derive the equation of motion and calculate th...
m1 m2 Figure 1: 2dof 1. Consider the system above. Derive the equation of motion and calculate the mass and stiffness matrices Note that setting k30 in your solution should result in the stiffness matrix given by Eq. (4.9). a. Calculate the characteristic equation from problem 4.1 for the case m1-9 kg m2-1 kg ki-24 N/m 2 3 N/m k 3 N/m and solve for the system's natural frequencies. b. Calculate the eigenvectors u1 and u2. c. Calculate 띠(t) and...
Problem 3. (4.0 pts.) Two blocks of masses mi = 1.35 kg and m2 = 1.27...
Problem 3. (4.0 pts.) Two blocks of masses mi = 1.35 kg and m2 = 1.27 kg are connected through a pulley so that one of the blocks is hanging freely and the other one is located on the horizontal plane, as shown in Fig. 1. The friction coefficient for the first block is jis = 0.37. The system is released and block m; goes down by d = 43.2 cm. (a) Find the acceleration of the blocks. (6) What...
Rope connected two objects in the inclined plane, A block of mass m1 = 22.9 kg...
Rope connected two objects in the inclined plane, A block of mass m1 = 22.9 kg is at rest on a plane inclined at Theta = 35.0 degree above the horizontal. The block is connected via a rope and mass less pulley system to another block of mass m2 = 26.1 kg. as shown in the figure. The coefficients of static and kinetic friction between block 1 and the inclined plane Is MU_s is unknown. If the blocks are released...
Two blocks with mass M1 and M2 are arranged as shown with M sitting on an inclined plane
Two blocks with mass M1 and M2 are arranged as shown with M sitting on an inclined plane and connected with a massless unstretchable string running over a massless, frictionless pulley to M2, which is hanging over the ground. The two masses are released initially from rest. The inclined plane has coefficients of static and kinetic friction μs and μk respectively where the angle θ is small enough that mass M1 , would remain at rest due to static friction if...
2. Atwood's Table with Two Hanging Masses You have table of width L, masses m1, m2,...
2. Atwood's Table with Two Hanging Masses You have table of width L, masses m1, m2, and m3, two frictionless pulleys, and ideal string. Placing m2 on the table, you attach a bit of string to mass m1 the left pulley, to the left side of m2. Similarly, you hang mass m3 from the right side of m2 using the pulley on the right side of the table. The coefficient of friction of the table is mu. The acceleration of...
I am confused when they say
the "the force down the plane has the sine component and the normal
force and force into the plane have the cosine component." Also
aren't I only suppose to look at a certain component of the weight
force? If you could please label all the forces, their direction,
and whether they would be sine or cosine that would be greatly
appreciated, thank you!
Question 4 Consider the pulley system below. Find the acceleration of...
Figure 4: Top view of force table. (3) Figure 5 is an inclined-plane system that will be stud- ied in the first part of this experiment. As labelled in the figure, the x (y) direction is parallel (perpendicular) to the inclined plane, and the gravitational acceleration is downward. If the hanging mass m is too small, the block mass M on the inclined plane slides down. When the hanging mass is gradually increased to a lower-bound value mi such that...
A block of mass m1 rests on a frictionless inclined plane as
shown. The inclined plane, which has mass m2, rests on a
frictionless floor. Find the accelerations of both blocks with
respect to the inertial reference frame provided by the floor.
Hint: there are several different ways of doing this problem. You
may write the equation of motion of the top block in the
accelerating reference frame of the bottom block. You may instead
write everything in an inertial...
4) A block of mass m1 = 3.7kg on a frictionless plane, inclined at an angle of 0 = 30°, is connected by a cord over a massless, frictionless pulley to a second of mass m2 = 4.3 kg. Refer to the accompanying figure below. a) What is the acceleration of the hanging block? b) What is the tension in the cord? N 2 2 M2 J Mig 1 30° a) T-mg = ma Tsino-m, g=m, a x m, atmig...
m1 m2 Figure 1: 2dof 1. Consider the system above. Derive the equation of motion and calculate the mass and stiffness matrices Note that setting k30 in your solution should result in the stiffness matrix given by Eq. (4.9). a. Calculate the characteristic equation from problem 4.1 for the case m1-9 kg m2-1 kg ki-24 N/m 2 3 N/m k 3 N/m and solve for the system's natural frequencies. b. Calculate the eigenvectors u1 and u2. c. Calculate 띠(t) and...
Problem 3. (4.0 pts.) Two blocks of masses mi = 1.35 kg and m2 = 1.27 kg are connected through a pulley so that one of the blocks is hanging freely and the other one is located on the horizontal plane, as shown in Fig. 1. The friction coefficient for the first block is jis = 0.37. The system is released and block m; goes down by d = 43.2 cm. (a) Find the acceleration of the blocks. (6) What...
Rope connected two objects in the inclined plane, A block of mass m1 = 22.9 kg is at rest on a plane inclined at Theta = 35.0 degree above the horizontal. The block is connected via a rope and mass less pulley system to another block of mass m2 = 26.1 kg. as shown in the figure. The coefficients of static and kinetic friction between block 1 and the inclined plane Is MU_s is unknown. If the blocks are released...
