Homework Answers
Add Answer to:

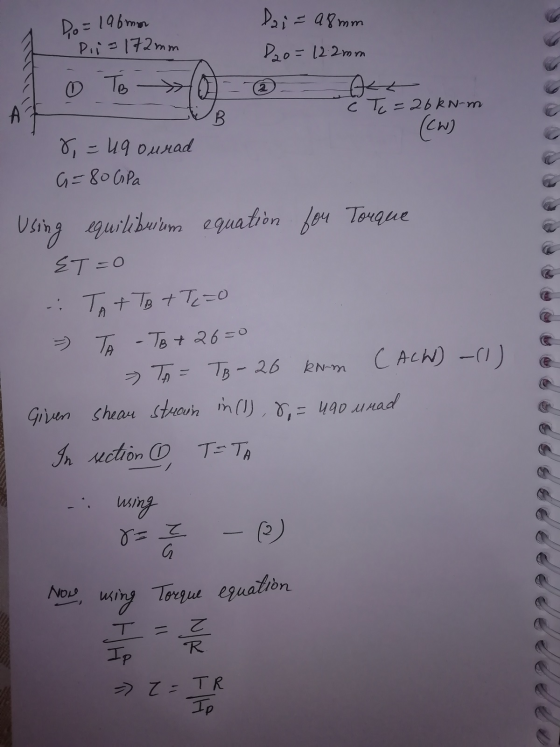

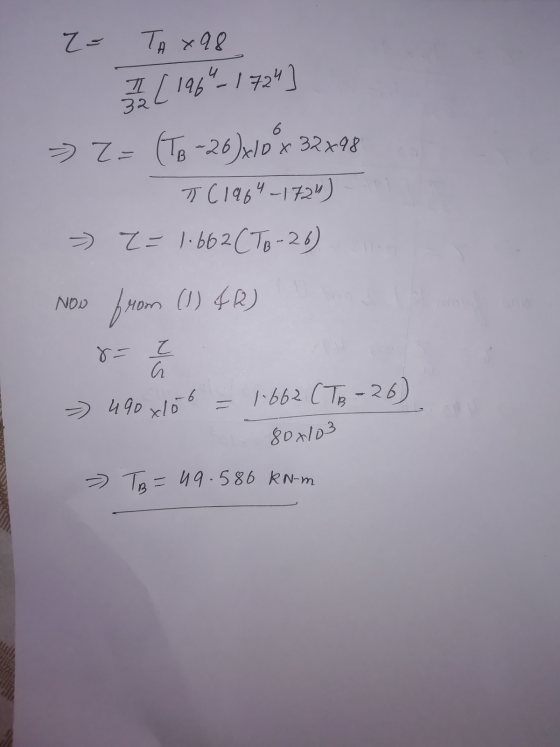

The compound shat shown in the figure consists of two stel ( G 80 GPa) pe...
A compound shaft drives several pulleys, as shown in Figure P6.18. Segments (1) and (2) of...
A compound shaft drives several pulleys, as shown in Figure P6.18. Segments (1) and (2) of the compound shaft are FI = 28 GPa] tubes, which have an outside diameter of 75 mm and a wall thickness of 3 mm. Segments (3) and (4) are solid 40 mm diameter steel [G = 80 GPa] shafts. The shaft lengths are a = 2.0 m, b = 0.8 m, c = 1.4 m, and d = 1.4 m. The following torques are...
P6.042 The composite shaft shown in the figure consists of two steel pipes that are connected...
P6.042 The composite shaft shown in the figure consists of two steel pipes that are connected at flange B and securely attached to rigid walls at A and C. Steel pipe (1) has an outside diameter of 173 mm and a wall thickness of 6 mm. Steel pipe (2) has an outside diameter of 101 mm and a wall thickness of 7 mm. Both pipes are 3.4 m long and have a shear modulus of 80 GPa. If a concentrated...
View Policies Current Attempt in Progress Acompound shaft consists of two pipe segments. Segment (1) has...
View Policies Current Attempt in Progress Acompound shaft consists of two pipe segments. Segment (1) has an outside diameter of 6.50 in, and a wall thickness of 0.375 in. Segment (2) has an outside diameter of 4.50 in and a wall thickness of 0.50 in. The shaft is subjected to an axial compression load of P- 50 kips and torques Te-33 kip-ft and Tc - Skip-ft, which act in the directions shown. Determine the normal stress 0, at point H....
P6.041 A solid 66-mm-diameter cold-rolled brass G = 40.8 GPa) shaft that is 1.22 m long...
P6.041 A solid 66-mm-diameter cold-rolled brass G = 40.8 GPa) shaft that is 1.22 m long extends through and is completely bonded to a hollow aluminum LG = 27.5 GPa) tube. Aluminum tube (1) has an outside diameter of 89 mm, an inside diameter of 66 mm, and a length of 0.64 m. Both the brass shaft and the aluminum tube are securely attached to the wall support at A. Assume L1=L2 = 0.64 m, L3= 0.58 m, To =...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm. Assume that the bearings shown allow free rotation of the shafts. If a 400 N-m torque is applied at gear D, determine (a) the maximum shear stress magnitudes in each shaft. (b) the angles of twist ф, and ф (c) the...
4.11. A shaft ABC is made of two segments AB and BC (Figure 4. 11). Segment...
4.11. A shaft ABC is made of two segments AB and BC (Figure 4. 11). Segment 4B is solid with a diameter of 100 mm and BC is hollowed with an outer diameter of 75 mm and wall thickness of 5 mm. The shear modulus is 80 GPa for segment AB and 60 GPa for BC Extemal torques To=25 Nm in the counter-clockwise direction is applied at Cand 1s=10 Nm in the clockwise direction is applied at B. A counter-clockwise...
160 mm P2. The dimensions of a stepped steel shaft (G = 80 GPa) are shown...
160 mm P2. The dimensions of a stepped steel shaft (G = 80 GPa) are shown below, along with the external torques applied on it. The shaft has a fixed support at point A. Answer the following: (35 pt) a. Plot the internal torque diagram. b. Find the maximum shearing stress on a section 3 m from the left end of the shaft (A). 35 kNm C. Find the maximum shearing strain on a 1 m section 3 m from...
A solid 70-mm-diameter cold-rolled brass [G = 38.4 GPa] shaft that is 1.13 m long extends...
A solid 70-mm-diameter
cold-rolled brass [G = 38.4 GPa] shaft that is 1.13 m long extends
through and is completely bonded to a hollow aluminum [G = 25.6
GPa] tube. Aluminum tube (1) has an outside diameter of 98 mm, an
inside diameter of 70 mm, and a length of 0.73 m. Both the brass
shaft and the aluminum tube are securely attached to the wall
support at A. Assume L1=0.73 m, L2=0.4 m, TB=25 kN-m, and TC=7
kN-m. When...
Question 1 The motor shown in Fig. 1 supplies power to Gear C through solid steel...
Question 1 The motor shown in Fig. 1 supplies power to Gear C through solid steel motor shaft GF (having a diamet of 200 mm) and Gear F. The torque delivered to Gear C is 200 kNm. Gears A, B, D and E supply powers to er three machines. The torques delivered by gear A, gear B and gear E to the machines are 60 kNm, 30 kNm and 40 kNm, respectively. Shaft ABCDE is also made of steel (G...
The cylindrical pressure vessel shown in the figure has an inside diameter of 980 mm and a wall thickness of 12 mm. The cylinder is made of an aluminum alloy that has an elastic modulus of E = 72 GPa...
The cylindrical pressure vessel shown in the figure has an
inside diameter of 980 mm and a wall thickness of 12 mm. The
cylinder is made of an aluminum alloy that has an elastic modulus
of E = 72 GPa and a shear modulus of G = 27.5
GPa. Two strain gages are mounted on the exterior surface of the
cylinder at right angles to each other. The angle θ is 21°. If the
pressure in the vessel is 1.86...
P6.042 The composite shaft shown in the figure consists of two steel pipes that are connected at flange B and securely attached to rigid walls at A and C. Steel pipe (1) has an outside diameter of 173 mm and a wall thickness of 6 mm. Steel pipe (2) has an outside diameter of 101 mm and a wall thickness of 7 mm. Both pipes are 3.4 m long and have a shear modulus of 80 GPa. If a concentrated...
View Policies Current Attempt in Progress Acompound shaft consists of two pipe segments. Segment (1) has an outside diameter of 6.50 in, and a wall thickness of 0.375 in. Segment (2) has an outside diameter of 4.50 in and a wall thickness of 0.50 in. The shaft is subjected to an axial compression load of P- 50 kips and torques Te-33 kip-ft and Tc - Skip-ft, which act in the directions shown. Determine the normal stress 0, at point H....
P6.041 A solid 66-mm-diameter cold-rolled brass G = 40.8 GPa) shaft that is 1.22 m long extends through and is completely bonded to a hollow aluminum LG = 27.5 GPa) tube. Aluminum tube (1) has an outside diameter of 89 mm, an inside diameter of 66 mm, and a length of 0.64 m. Both the brass shaft and the aluminum tube are securely attached to the wall support at A. Assume L1=L2 = 0.64 m, L3= 0.58 m, To =...
Problem 1 (25 Points) Two solid steel (6-80 GPa) shafts are connected by the gears shown. Shaft (1) has a diameter of 45 mm, and shaft (2) has an outside diameter of 55 mm and wall thickness 4 mm. Assume that the bearings shown allow free rotation of the shafts. If a 400 N-m torque is applied at gear D, determine (a) the maximum shear stress magnitudes in each shaft. (b) the angles of twist ф, and ф (c) the...
4.11. A shaft ABC is made of two segments AB and BC (Figure 4. 11). Segment 4B is solid with a diameter of 100 mm and BC is hollowed with an outer diameter of 75 mm and wall thickness of 5 mm. The shear modulus is 80 GPa for segment AB and 60 GPa for BC Extemal torques To=25 Nm in the counter-clockwise direction is applied at Cand 1s=10 Nm in the clockwise direction is applied at B. A counter-clockwise...
160 mm P2. The dimensions of a stepped steel shaft (G = 80 GPa) are shown below, along with the external torques applied on it. The shaft has a fixed support at point A. Answer the following: (35 pt) a. Plot the internal torque diagram. b. Find the maximum shearing stress on a section 3 m from the left end of the shaft (A). 35 kNm C. Find the maximum shearing strain on a 1 m section 3 m from...
A solid 70-mm-diameter
cold-rolled brass [G = 38.4 GPa] shaft that is 1.13 m long extends
through and is completely bonded to a hollow aluminum [G = 25.6
GPa] tube. Aluminum tube (1) has an outside diameter of 98 mm, an
inside diameter of 70 mm, and a length of 0.73 m. Both the brass
shaft and the aluminum tube are securely attached to the wall
support at A. Assume L1=0.73 m, L2=0.4 m, TB=25 kN-m, and TC=7
kN-m. When...
Question 1 The motor shown in Fig. 1 supplies power to Gear C through solid steel motor shaft GF (having a diamet of 200 mm) and Gear F. The torque delivered to Gear C is 200 kNm. Gears A, B, D and E supply powers to er three machines. The torques delivered by gear A, gear B and gear E to the machines are 60 kNm, 30 kNm and 40 kNm, respectively. Shaft ABCDE is also made of steel (G...
The cylindrical pressure vessel shown in the figure has an
inside diameter of 980 mm and a wall thickness of 12 mm. The
cylinder is made of an aluminum alloy that has an elastic modulus
of E = 72 GPa and a shear modulus of G = 27.5
GPa. Two strain gages are mounted on the exterior surface of the
cylinder at right angles to each other. The angle θ is 21°. If the
pressure in the vessel is 1.86...
