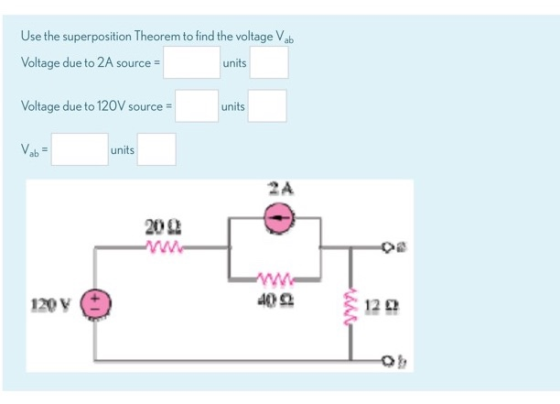

Use the superposition Theorem to find the voltage Vab Voltage due to 2A source = units...

Question

Question

engineering Electrical-Engineering

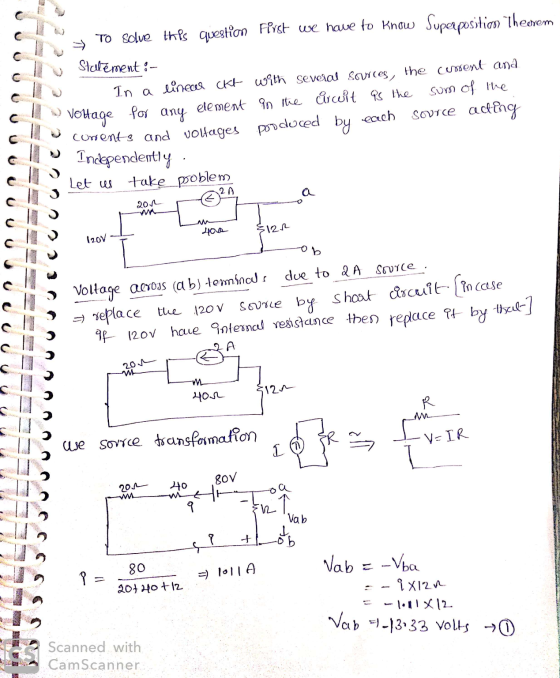

Answer 1

Answer #1

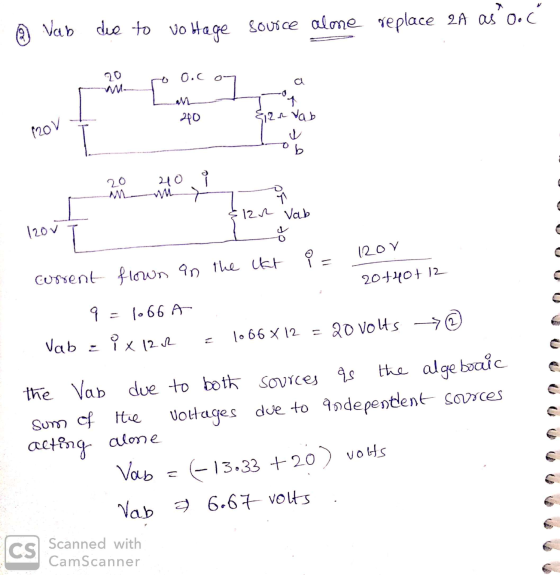

Answer 2

Similar Homework Help Questions

Use superposition on the circuit below; a) Find the voltage V'1 due to the 12V voltage...

Use superposition on the circuit below; a) Find the voltage V'1 due to the 12V voltage source alone. b) Find the voltage V": due to the 5mA current source alone. c) Find the total voltage V1 due to both sources. 2002 1002 12 4002 VI 5 mA 3002 www
Using superposition theorem, find the voltage V0 across the 2Ω resistor due to the 4A current source in Fig. 8.

Using superposition theorem, find the voltage V0 across the 2Ω resistor due to the 4A current source in Fig. 8. A. 2V B. 8V C. 4V D. 6V
Superposition Theorem Example Use superposition to find v, in the circuit below. 10 V 2A 4...

Superposition Theorem Example Use superposition to find v, in the circuit below. 10 V 2A 4 2 2A is discarded by open-circuit 10V is discarded by short-circuit Dependant source keep unchanged 20Ω V1 20Ω V1 0.1v 2 A 4Ω 0.1v 0 V 10 Refer to in-class illustration, answer Vx 12.5V

Q6. (20) Use Superposition and Source transformation principle to find vab in the circuit below. 6s2...

Q6. (20) Use Superposition and Source transformation principle to find vab in the circuit below. 6s2 252 a. 352 8v @
C5 Using superposition theorem, find the current through 1212 resistor. (7 Marks) 1012 1292 2002 50V...

C5 Using superposition theorem, find the current through 1212 resistor. (7 Marks) 1012 1292 2002 50V 4092 8A 40V
Use superposition to find the voltage across the 5 ohm resistor, V1, due to the 10 V source acting alone.

Use superposition to find the voltage across the 5 ohm resistor, V1, due to the 10 V source acting alone. 5.0 V None of the other answers 6.25V 1.25V 3.75V

2. Use the superposition theorem to find V, and determine the power dissipated by the each...

2. Use the superposition theorem to find V, and determine the power dissipated by the each Independent source in the circult shown below. 322 W 512 W 292 2A 5 V
Using superposition, determine the value of the output voltage due to the voltage source only (V01)

Using superposition, determine the value of the output voltage due to the voltage source only (V01), and due to the current source only (V02).
Use superposition to find the voltage across the 6 A current source in Figure 3.

Use superposition to find the voltage across the 6 A current source in Figure 3.

3. Use superposition theorem to find the voltage as asked in the Table for the following...

3. Use superposition theorem to find the voltage as asked in the Table for the following circuit. RiR2 R3 R4 RS R6 Vs V2 Find voltage across ohm ohm ohm ohm ohm volt volt R2 4 5 5.5 4.5 - 3. 5 6 8 R₂ Ra ww & R2
