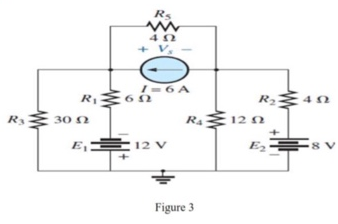

Use superposition to find the voltage across the 6 A current source in Figure 3.

Question

Question

engineering Electrical-Engineering

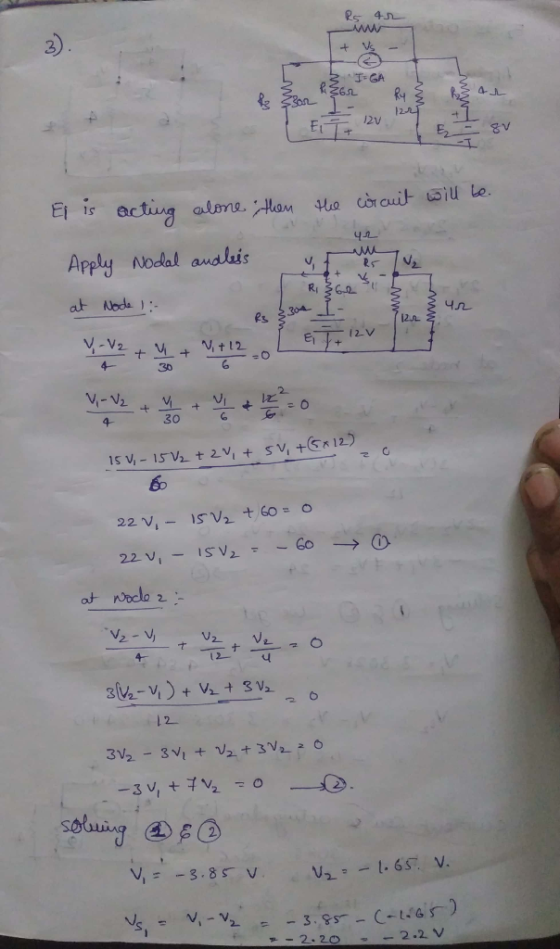

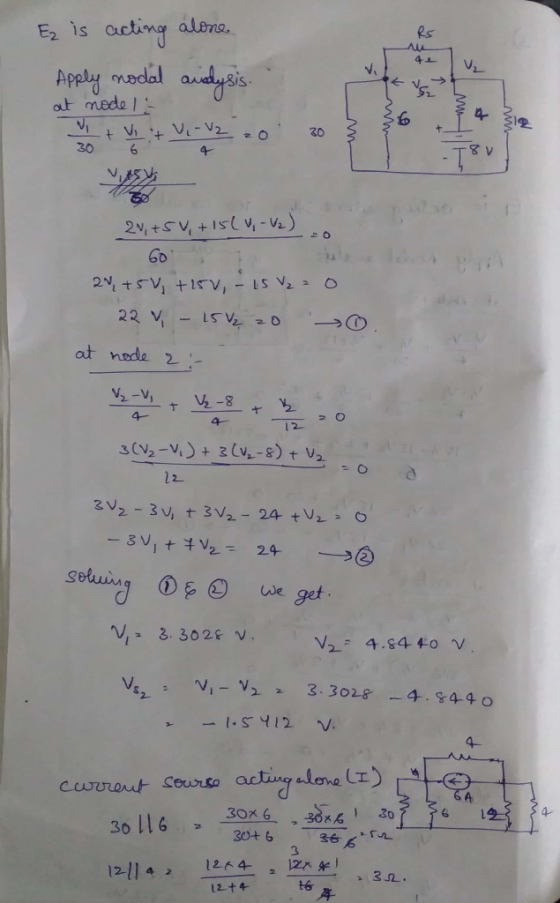

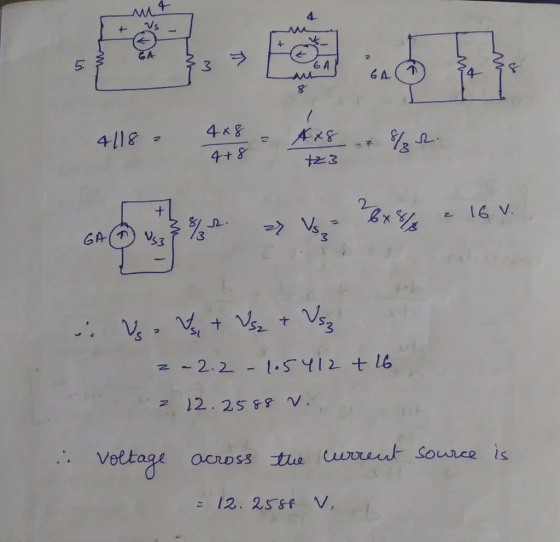

Answer 1

Answer #1

Answer 2
