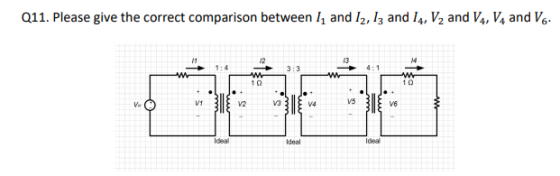

Q11. Please give the correct comparison between /1 and 12, I3 and I4, V2 and V4, V4 and V6 12 1:4 4:1 3:3 ww 10 10 V5 /1 V3 V

please show full working.
