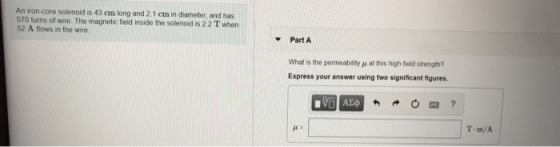

An iron-core solenoid is 43 cm long and 21 cm in diameter and has 570 turns...

Question

Question

science physics

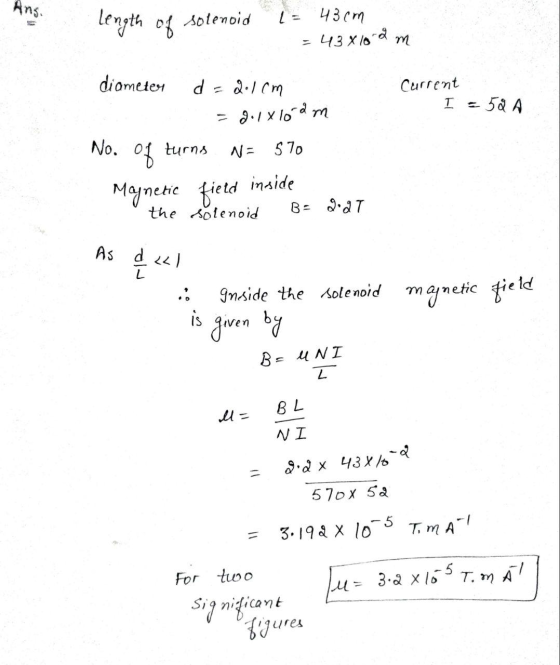

Answer 1

Answer #1

Please feel free to comment if you have doubt

Cheers

Answer 2

Similar Homework Help Questions

An iron-core solenoid is 33 cm long and 1.9 cmin diameter, and has 690 turns of...

An iron-core solenoid is 33 cm long and 1.9 cmin diameter, and has 690 turns of wire. The magnetic field inside the solenoid is 1.9 T when 51 A flows in the wire.What is the permeability μ at this high field strength? μ=_____T⋅m/A?
5) A solenoid comprises 500,000 turns of wire and is 10 cm long and 1.0 cm...

5) A solenoid comprises 500,000 turns of wire and is 10 cm long and 1.0 cm in radius. a) Find the resultant magnetic field inside the coil if a current of 1 μA flows through the wire. b) How would this change if the core is filled with mumetal (μ = 300 μ0 ). 6) The solenoid of Q5 is placed in a region where the perpendicular magnetic field strength is varying sinusoidally by 20 μT at a rate of...
An air-core solenoid with 60 turns is 8.00 cm long and has a diameter of 1.20...

An air-core solenoid with 60 turns is 8.00 cm long and has a diameter of 1.20 cm. When the solenoid carries a current of 0.720 A, how much energy is stored in its magnetic field?

A 2.0-cm-diameter, 15-cm-long solenoid is tightly wound with one layer of wire. A 2.5 A current...

A 2.0-cm-diameter, 15-cm-long solenoid is tightly wound with one layer of wire. A 2.5 A current through the wire generates a 3.2 mT magnetic field inside the solenoid. What is the diameter of the wire, in mm? Express your answer using two significant figures.
A 2.0-cm-diameter, 15-cm-long solenoid is tightly wound with one layer of wire. A 2.1 A current...

A 2.0-cm-diameter, 15-cm-long solenoid is tightly wound with one layer of wire. A 2.1 A current through the wire generates a 3.1 mT magnetic field inside the solenoid. What is the diameter of the wire, in mm? Express your answer using two significant figures.
A long solenoid has a 60 cm length, with 3000 circular turns. The diameter of each...

A long solenoid has a 60 cm length, with 3000 circular turns. The diameter of each circular turn is 2cm. When the current travels through the solenoid, a .35 Tesla field is created inside. A. How much current is traveling through this solenoid? B. The diameter of this solenoid is decreased to 1cm. Using the current in Part A, what is the magnetic field magnitude now? C. If this solenoid is created by a fixed length of wire, so that...

A very long, straight solenoid with a diameter of 3.00 cm is wound with 40 turns...

A very long, straight solenoid with a diameter of 3.00 cm is wound with 40 turns of wire per centimeter and the windings carry a current of 0.260 A. A second coil having N turns and a larger diameter is slipped over the solenoid so that the two are coaxial. The current in the solenoid is ramped down to zero over a period of 0.2s. What average emf is induced in the second coil if it has a diameter of...
A thin 16-cm-long solenoid has a total of 460 turns of wire and carries a current...

A thin 16-cm-long solenoid has a total of 460 turns of wire and carries a current of 1.9 A . Calculate the field inside the solenoid near the center. Express your answer using two significant figures.
A solenoid has carries 15 A with a turn density of 12 turns pe with a...

A solenoid has carries 15 A with a turn density of 12 turns pe with a relative permeability of 2000. What is the magnitude of the magnetic field at the center of this solenoid? rmm. There is an iron core through the solenoid 3. (3 points)

A solenoid that is 60 cm long produces a magnetic field of 1.4 T within its...

A solenoid that is 60 cm long produces a magnetic field of 1.4 T within its core when it carries a current of 8.4 A . Part A How many turns of wire are contained in this solenoid? Express your answer using two significant figures
