Question

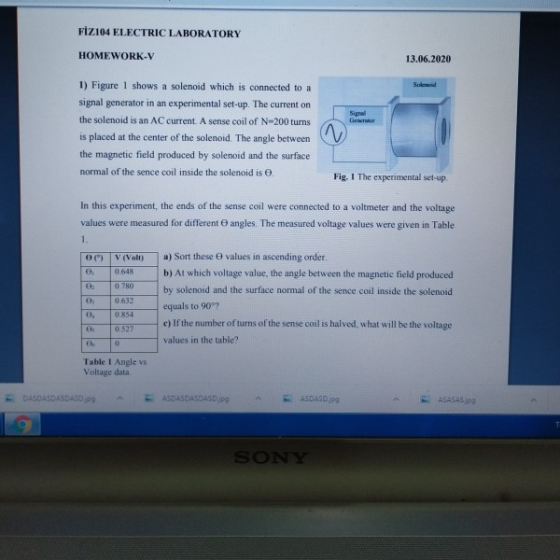

FiZ104 ELECTRIC LABORATORY HOMEWORK-V 13.06.2020 Soked Signal Gew 1) Figure 1 shows a solenoid which is connected to a signal generator in an experimental set-up. The current on the solenoid is an AC current. A sense coil of N-200 turns is placed at the center of the solenoid. The angle between the magnetic field produced by solenoid and the surface normal of the sence coil inside the solenoid is e Fig. 1 The experimental set-up In this experiment, the ends of the sense coil were connected to a voltmeter and the voltage values were measured for different angles. The measured voltage values were given in Table 1 0° e V (Volt) 0.648 07NO 02 0 0.632 0.854 a) Sort these values in ascending order. b) At which voltage value, the angle between the magnetic field produced by solenoid and the surface normal of the sence coil inside the solenoid equals to 90° c) If the number of turns of the sense coil is halved, what will be the voltage values in the table? 0. es 0.527 E Table 1 Angle vs Voltage data DASDASDASDAS.jpg ASDASDASDASD.jpg ASDASD.JPG ASASASI SONY

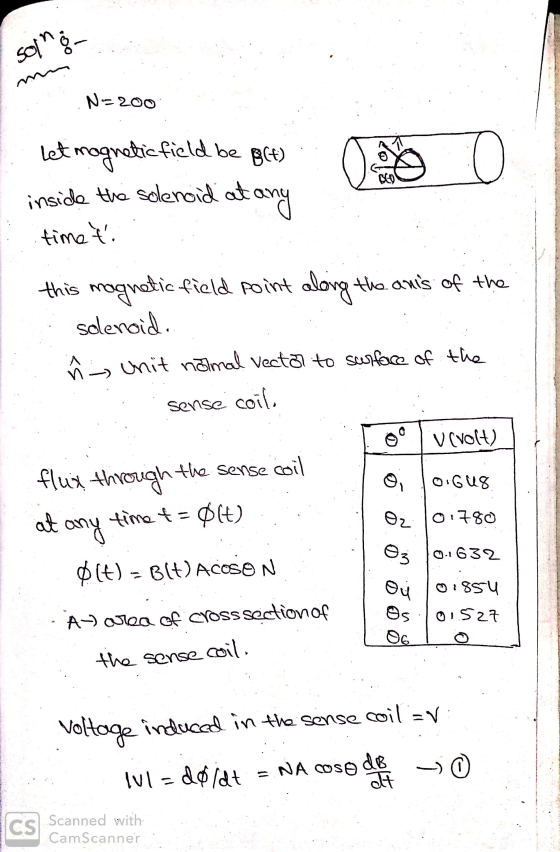

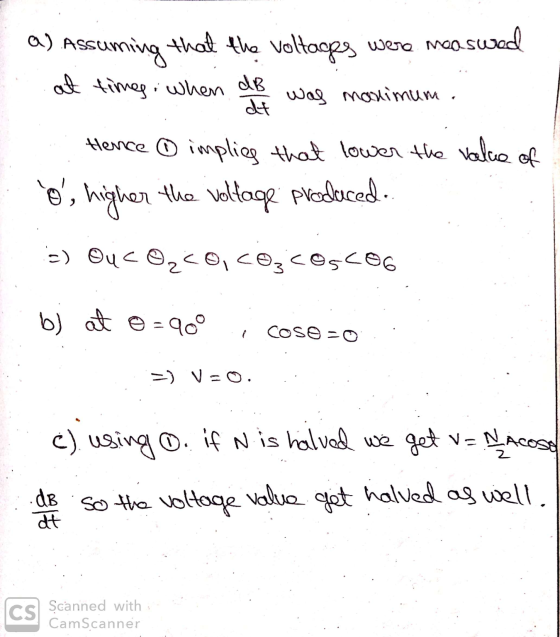

Answer 1
