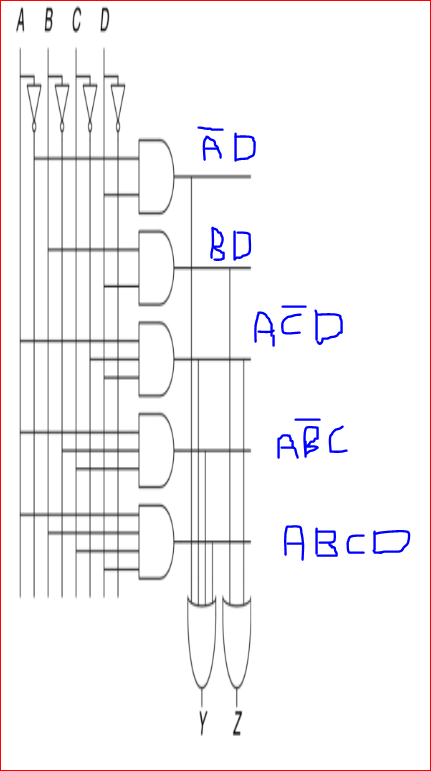

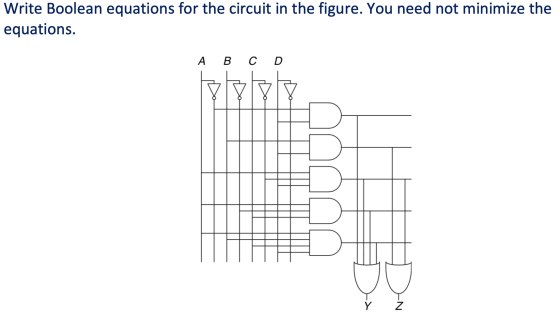

Write Boolean equations for the circuit in the figure. You need not minimize the equations. A...
Q6. a) Write the output expression for the circuit shown in the figure. b) Develop truth table for the circuit. (1 Mark) (4 Marks) A B C 13 X D Fig.2 07 [5] a) Minimize the following logic function using K-Map. b) Implement the minimized expression using basic gates. (3 Marks) (2 Marks) F(A,B,C,D) = (0,2,5,7,8,10,13,15) Q8 a) Write the output expression of the logic circuit shown in the figure. b) Minimize the expression using Boolean laws and theorems. C)...
1) minimize each of the boolean equations from the pic.
2) sketch a reasonably simple combinational circuit
implementing each of the functions from the pic provided
(c) (d) (€ у с olo ° -oom 1 0 0 0 0 1 1 0 0 0 0 0 Olонон онон 1 оооо 1 1 1 оо 1 0 0 1 1 1 1 1 1 1 О онопононопононо 0 1 на онно онаа онооооо 1 ооос 1 1 1 1 1 1...
5. For the circuit below, a. Write the Boolean expression of X. b. Simplify the Boolean expression. c. Draw the circuit and ladder program for the equation in b).
3. Given the circuit in Figure A.8, write the KCL for node A. Write the three KVL equations for the three loops in the circuit. Do not solve for any of the Currents. Remember you only need 3 of the four equations to solve for the currents. v v v Figure A.8: Figure for Question #3
Using logic gates, Boolean equations, or latches, create a circuit diagram for a binary calculator that completes the addition and subtraction of two four-digit inputs and outputs the result. Hint: You will need to include a bit that depicts whether the circuit is to perform addition or subtraction along with the 8 input bits.
Given the following VHDL code, write the simplified Boolean equations for the outputs and sketch the circuit schematic. entity newFunction is /*entity declaration*/ port(a, b, c: in STD_LOGIC; y: out STD_LOGIC); Z: out STD_LOGIC); end; architecture synth of newFunction is /*architecture body*/ begin y <= (not a and b and not c) or (a and b and not c) z <= (a and b and c) or (not a and b and not c) or...
5. Apply Boolean algebra theorems to minimize the following expression. x(y + xy) + xy(x + yy) 6. Consider the following digital circuit diagram. Write the corresponding logic expression for f and the truth table. D A $(91, 02, ) f(x1, X2, X3)
Draw the logic circuit realization of the following Boolean expression as stated. Do not simplify! You may draw inverters explicitly or use inversion bubbles, as you choose. F(A,B,C) (A'+B+C)(A+B+C) b. Convert the Boolean equation of (a) to its De Morgan equivalent. c. Write the complete truth table for the Boolean expression of (b) a.
A B What boolean expression is equivalent to the circuit presented in the figure? Q = (A and B) or (B or C) O Q = (A or B) and (B and C) Q = (A and B) or B and C Q = (A and B) or (A or C)
Q1) minimize these Boolean Algebra : a. (a’ + b + c’)(b + c’ + d)(b’ + d’) b. b’c + abc + b’cd + a’b’d + a’c’d c. wxz + xy’z + wz’ + xyz + wxy’z + w’y’z’
