A parallel plate capacitor has plates of area A positioned at x=0 and x=b. The free...
A parallel plate capacitor has plates of area A positioned at
x=0 and x=b. The free surface charge density on the plates is
±σfree with (+) charge at x=0.
The space between the plates is filled with a non-uniform
dielectric whose relative permittivity varies continuously between
the plates as:
?? = ??^??,? > 1 ??? ? > 0.
a) Derive expressions for the capacitance of the device.
b) Derive expressions for the surface polarization charge density
at each electrode and the volume polarization charge density in the
dielectric.
c) Calculate the total polarization charge.

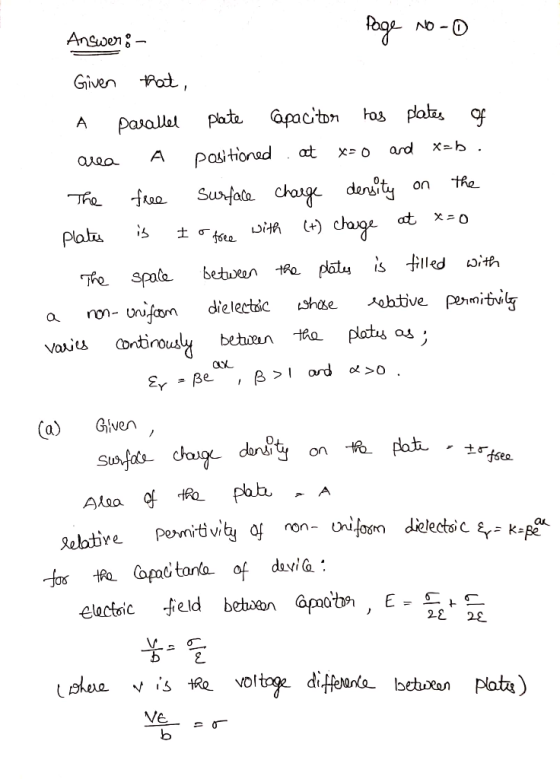

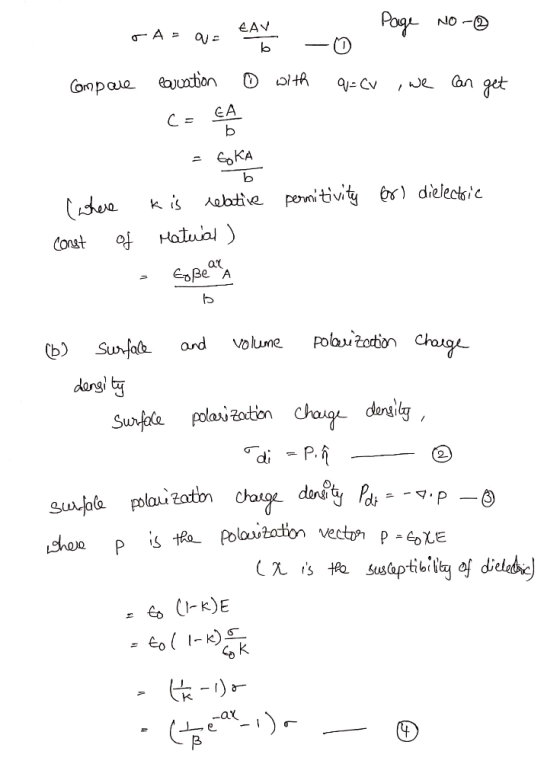

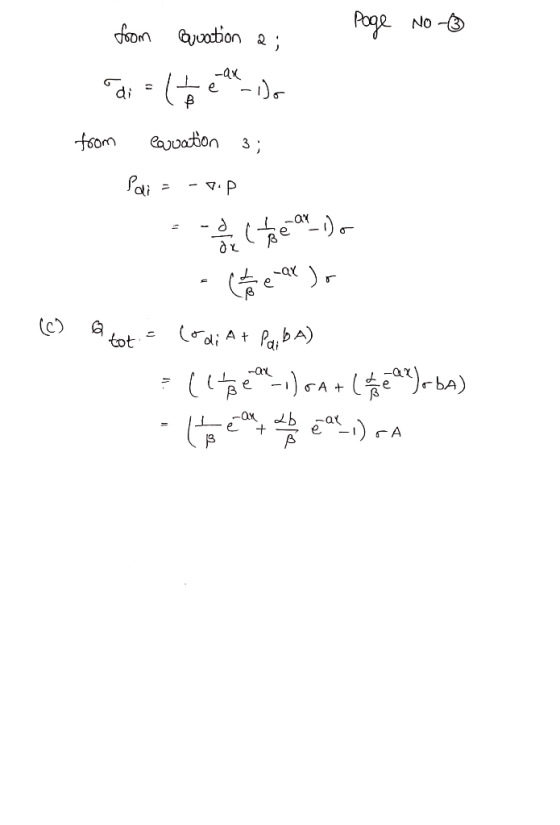

Homework Answers
Add Answer to:
A parallel plate capacitor has plates of area A positioned at
x=0 and x=b. The free...
The space between a parallel plate capacitor of area "A," is filled with a dielectric whose...
The space between a parallel plate capacitor of area "A," is filled with a dielectric whose permittivity varies linearly from e1 at one plate (y 0) to s2 at the other plate ( y=d). The plates have equal and opposite charge densities of magnitude o Write the equation for the permittivity as a function of position, i.e. s(y)= ? 3. AV Show the potential difference between the plates is 4. In Ae2-1 1 Determine the capacitance of the parallel plate...
Answer: 13. A parallel-plate capacitor of cross-sectional area A and spacing between the plates d is...
Answer:
13. A parallel-plate capacitor of cross-sectional area A and spacing between the plates d is filled with a dielectric material whose permittivity varies linearly from s at one plate to the other plate according to at s(2) d sz)=, +(e,-6) Find the capacitance. d (-A 13. CIn(2/6,) d In(e2/)
A parallel plate capacitor has plates of area A = 5.50 ✕ 10−2 m2 separated by...
A parallel plate capacitor has plates of area A = 5.50 ✕ 10−2 m2 separated by distance d = 1.32 ✕ 10−4 m. (The permittivity of free space is ε0 = 8.85 ✕ 10−12 C2/(N · m2).) (a) Calculate the capacitance (in F) if the space between the plates is filled with air. . What is the capacitance (in F) if the space is filled half with air and half with a dielectric of constant κ = 3.10 as in...
A paralle-plate capacitor has its plates at0 and x -, and the space in between the p filled won an inhomogeneous material with permittivity ε, l +. If the plate is grounded at r= 0 and maintai...
A paralle-plate capacitor has its plates at0 and x -, and the space in between the p filled won an inhomogeneous material with permittivity ε, l +. If the plate is grounded at r= 0 and maintained at V, at,, d, find the following variables. (16 points) (a) Find V and E between the plates. (6 points) (b) Find polarization surface charge density Pr' at x = 0 and x = d plates. (6 points)
A paralle-plate capacitor has its...
The space between the plates of a parallel-plate capacitor, shown below, is filled with two slabs of different dielectric materials
Problem 5 The space between the plates of a parallel-plate capacitor, shown below, is filled with two slabs of different dielectric materials. The slab at the top has thickness 2d and a relative dielectric constant of er1 = 3 and the one at the bottom has thickness d and a relative dielectric constant of er2 = 2. The capacitor plates have surface area S. a. Assume a total charge of +Q on the top plate and -Q on the bottom plate. Find...
A parallel plate capacitor of capacitance C0 has plates of area A with separation d between them.
A parallel plate capacitor of capacitance C0 has plates of area A with separation d between them. When it is connected to a battery of voltage V0, it has charge of magnitude Q0 on its plates. While it is connected to the battery the space between the plates is filled with a material of dielectric constant k=3. After the dielectric is added, the magnitude of the charge on the plates and the new capacitance are
The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a...
The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a separation of 8.80 mm are charged to a 130-V potential difference. After the plates are disconnected from the source, a porcelain dielectric with κ = 6.5 is inserted between the plates of the capacitor. (a) What is the charge on the capacitor before and after the dielectric is inserted? Qi = ___C Qf = ____C (b) What is the capacitance of the capacitor after...
A parallel plate capacitor of capacitance Co has plates of area A with separation d between...
A parallel plate capacitor of capacitance Co has plates of area A with separation d between them. When it is connected to a battery of voltage Vo, it has a charge of magnitude Qo on its plates. It is then disconnected from the battery and the space between the plates is filled with a material of dielectric constant 3. After the dielectric is added, the magnitudes of the charge on the plates and the potential difference between them are 15.
A parallel plate capacitor of capacitance C0 has plates of area A with separation d between them.
A parallel plate capacitor of capacitance C0 has plates of area A with separation d between them. When it is connected to a battery of voltage V0, it has charge of magnitude Q0 on its plates. The plates are pulled apart to a separation 2d while the capacitor remains connected to the battery and the space between the plates is filled halfway with a material having the dielectric constant K. What are the capacitance and the magnitude of the charge...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of d = 2.00 mm. The capacitor is charged to a potential difference of V0 = 150 V by a battery. A dielectric sheet (κ = 3.50) of the same area but thickness ℓ = 1.00 mm is placed between the plates without disconnecting the battery. (See figure 24-18 on page 642). Determine the initial capacitance of the air-filled capacitor. Determine the charge on the...
The space between a parallel plate capacitor of area "A," is filled with a dielectric whose permittivity varies linearly from e1 at one plate (y 0) to s2 at the other plate ( y=d). The plates have equal and opposite charge densities of magnitude o Write the equation for the permittivity as a function of position, i.e. s(y)= ? 3. AV Show the potential difference between the plates is 4. In Ae2-1 1 Determine the capacitance of the parallel plate...
Answer:
13. A parallel-plate capacitor of cross-sectional area A and spacing between the plates d is filled with a dielectric material whose permittivity varies linearly from s at one plate to the other plate according to at s(2) d sz)=, +(e,-6) Find the capacitance. d (-A 13. CIn(2/6,) d In(e2/)
A paralle-plate capacitor has its plates at0 and x -, and the space in between the p filled won an inhomogeneous material with permittivity ε, l +. If the plate is grounded at r= 0 and maintained at V, at,, d, find the following variables. (16 points) (a) Find V and E between the plates. (6 points) (b) Find polarization surface charge density Pr' at x = 0 and x = d plates. (6 points)
A paralle-plate capacitor has its...
A parallel plate capacitor of capacitance Co has plates of area A with separation d between them. When it is connected to a battery of voltage Vo, it has a charge of magnitude Qo on its plates. It is then disconnected from the battery and the space between the plates is filled with a material of dielectric constant 3. After the dielectric is added, the magnitudes of the charge on the plates and the potential difference between them are 15.
