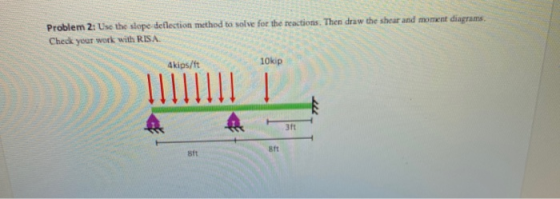

Problem 2: Use the slope detection method to solve for the reactions. Then draw the shear...

Question

Question

engineering Civil-Engineering

Answer 1

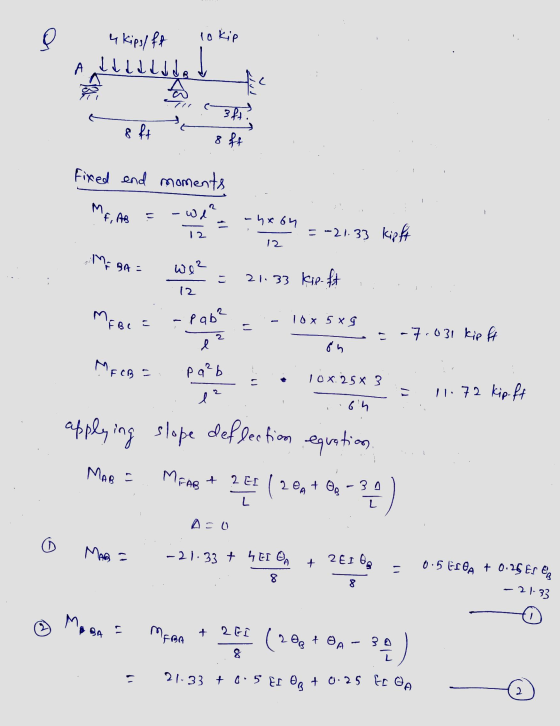

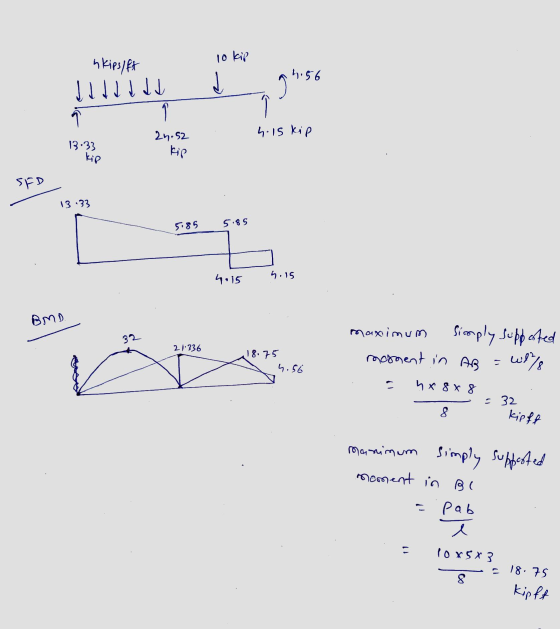

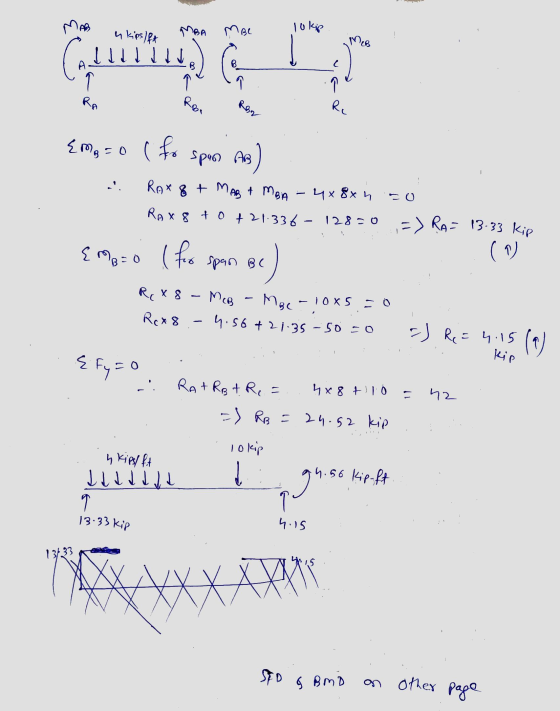

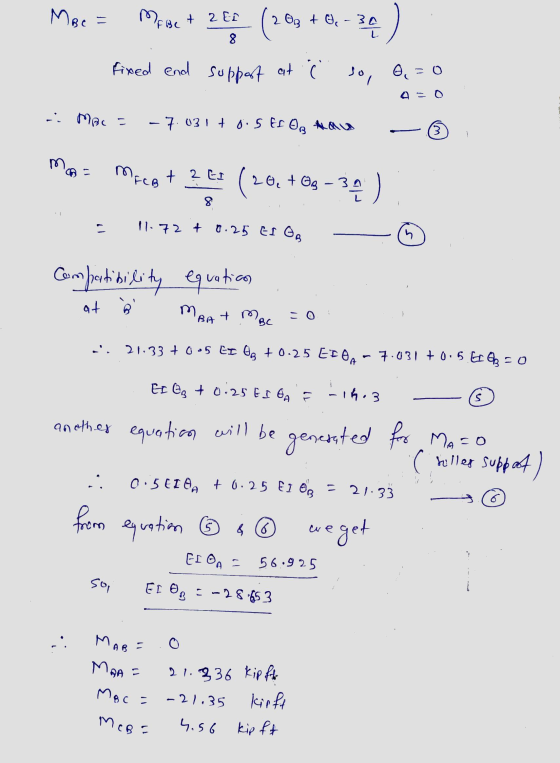

Answer #1

Answer 2
