Please find all reactions with Moment Distribution Method & draw shear/moment diagrams. Please show all work. Thank you in advance! Problem #2: For the indeterminate beam shown below: a) Determin...

Question

Question

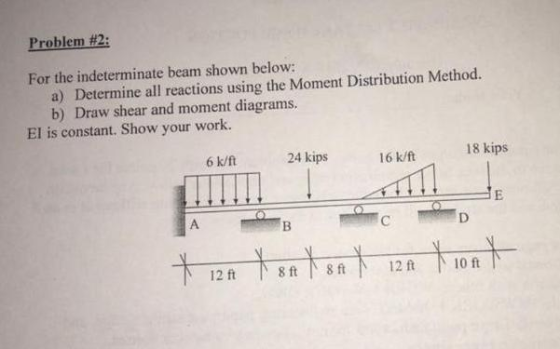

Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw

Please find all reactions with Moment Distribution Method & draw shear/moment diagrams. Please show all work. Thank you in advance!

engineering Civil-Engineering

Answer 1

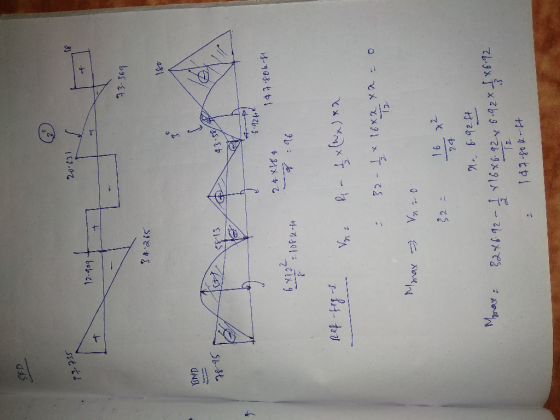

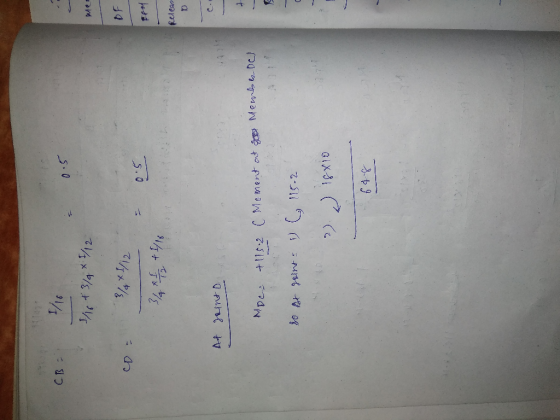

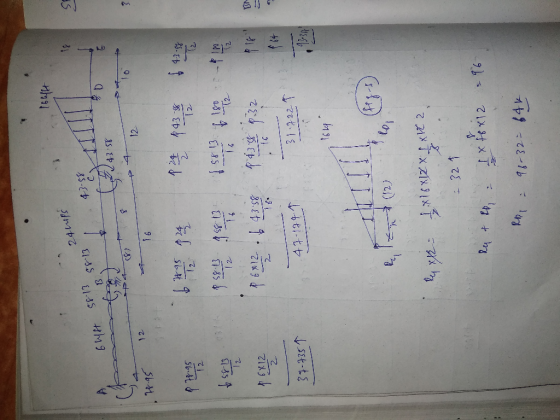

Answer #1

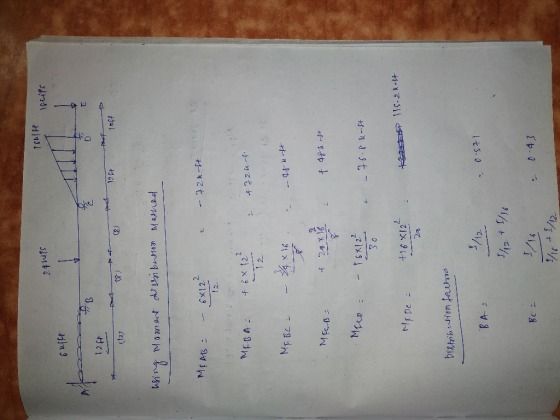

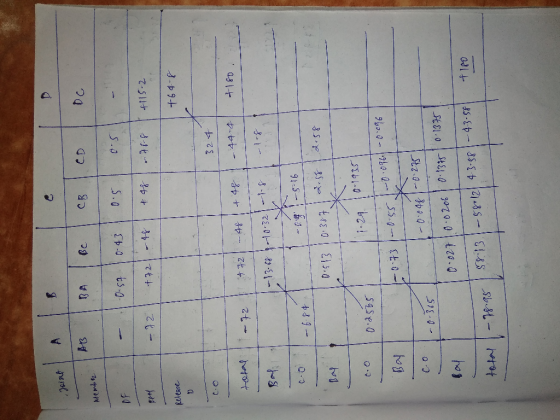

C. 2名 12 fp しろ (12/ ngtの 2. 6 X12 2. Mop +16 x12 & A 2 b f 2 545 e-0 0 +29 す-25 er ni a.35 Sirtt 35. EP d-193-tbl

Answer 2
