2. Aluminum is a FCC te material. The atomic radius of aluminum is 0.1431 nm. Compu...

Question

Question

2. Aluminum is a FCC te material. The atomic radius of aluminum is 0.1431 nm. Compu the atomic packing factor (APF) of aluminum.

engineering Mechanical-Engineering

Answer 1

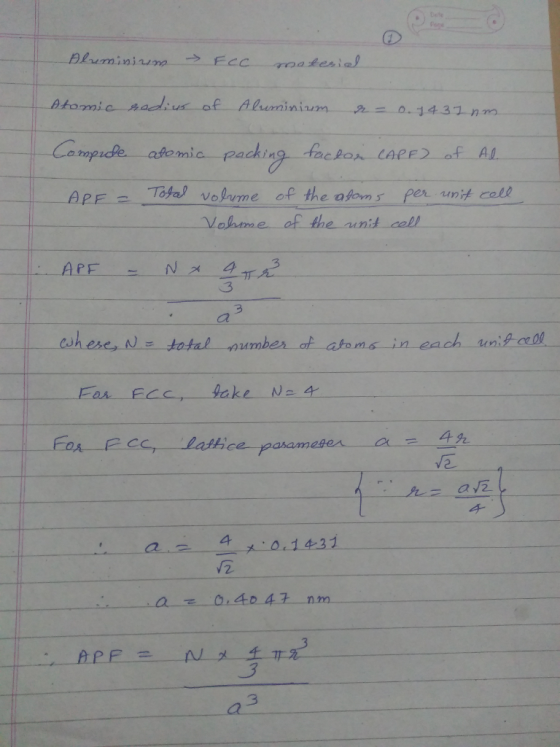

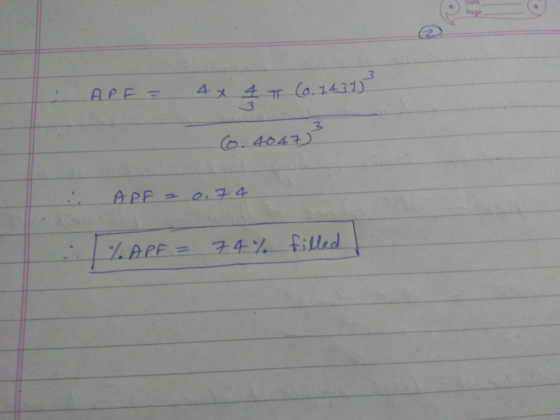

Answer #1

Answer 2

Similar Homework Help Questions

The atomic radius of FCC aluminum is 0.142 nm. What is the lattice parameter of the...

The atomic radius of FCC aluminum is 0.142 nm. What is the lattice parameter of the unit cell? What is the most densely packed direction and plane in this material? If this was an BCC material, on the cube shown below sketch the most densely packed crystal plane, and state that plane here. Identify the plane shown below for a cubic system and compute the planner density for a BCC material of the plane shown.
The atomic radius of FCC aluminum is 0.142 nm. What is the lattice parameter of the...

The atomic radius of FCC aluminum is 0.142 nm. What is the lattice parameter of the unit cell? What is the most densely packed direction and plane in this material? If this was an BCC material, on the cube shown below sketch the most densely packed crystal plane, and state that plane here. Identify the plane shown below for a cubic system and compute the planner density for a BCC material of the plane shown.
material engineering 1. Metal 'P' exhibits a FCC structure. Determine its atomic radius, in nm. (30p)...

material engineering 1. Metal 'P' exhibits a FCC structure. Determine its atomic radius, in nm. (30p) Atomic weight (g/mol) 90.0 Metal Density (g/cm2) 11.75 P R (nm)= CC unit cell), 20p

please answer b,c,d Draw FCC structure By considering the packing of atoms along the diagonal of...

please answer b,c,d Draw FCC structure By considering the packing of atoms along the diagonal of one face of the cubic structure, find the relationship between the atom radius r and the lattice parameter a. Calculate the number of atoms per lattice (N) for the FCC structure. Calculate the atomic packing factor (APF) for the FCC structure.
Given Values Atomic Radius (nm) = 0.18 FCC Metal = Silver BCC Metal: = Sodium Temperature...

Given Values Atomic Radius (nm) = 0.18 FCC Metal = Silver BCC Metal: = Sodium Temperature (c) = 1127 Metal A = Zinc Equilibrium Number of Vacancies (m^-3) = 7.42E + 23 Temperature for Metal A = 247 Metal B = Calcium If the atomic radius of a metal is the value shown above and it has the face-centered cubic crystal structure, calculate the volume of its unit cell in nm^3 Your Answer = What is the atomic packing factor...
(Engineering Materials) 3. Given that aluminum has an FCC crystal structure, if the atomic radius of...

(Engineering Materials) 3. Given that aluminum has an FCC crystal structure, if the atomic radius of aluminum is 0.143nm, calculate the volume of its unit cell in cubic meters. (10 points)

2. Some metals can change their structure due to some circumstances like external stresses or heat treatments. In this question, we evaluate the change in metals volume due to a change in their struc...

2. Some metals can change their structure due to some circumstances like external stresses or heat treatments. In this question, we evaluate the change in metals volume due to a change in their structure. This question can lead you to how you should design a part which is going to be subjected to heat treatments. a. Suppose that Lead can exist in both FCC and BCC forms. Given an atomic radius of R for Lead, how much is the volumetric...
(i) Gold has an atomic radius of 0.1444 nm and it has FCC structure. Its atomic...

(i) Gold has an atomic radius of 0.1444 nm and it has FCC structure. Its atomic weight is 196.97. What is the density of gold in g/m3? (ii) If gold had a BCC unit cell, what would be its density? (iii) If gold had simple cubic structure, what would be its density?
Define atomic packing factor, Atomic packing factor of FCC unit cell is more than that of BCC-Justify,

Define atomic packing factor, Atomic packing factor of FCC unit cell is more than that of BCC-Justify,

Copper has a FCC crystal structure and an atomic radius of 0.128 nm. The planar density...

Copper has a FCC crystal structure and an atomic radius of 0.128 nm. The planar density of atoms in copper on the (110) plane is: ** 1.08 x 1019atoms/m2 * 7.63 x 1018atoms/m2 “1.08 x 1018atoms/m2 O 5.04 x 1018atoms/m2
