A person is standing on a ramp of oak boards that is at an angle ?...

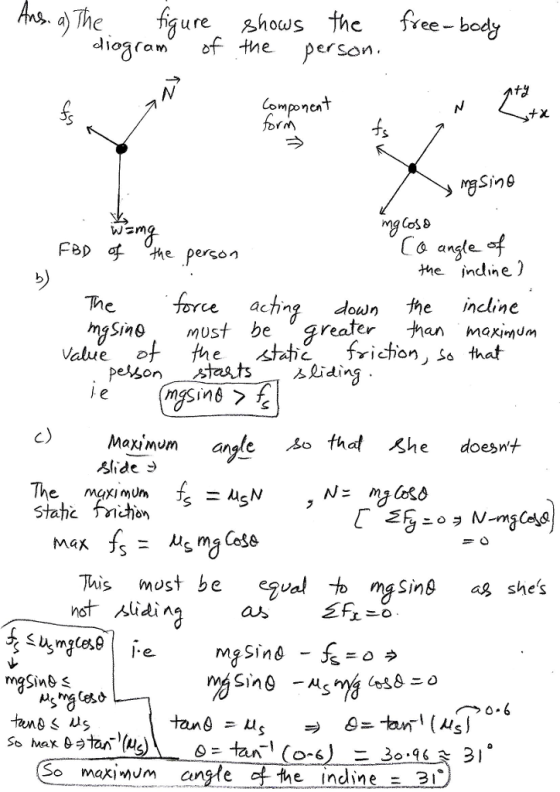

A person is standing on a ramp of oak boards that is at an angle ? to the horizontal, as shown below. She is not sliding down the ramp. She is wearing leather-soled shoes. The coefficient of static friction for leather on oak is 0.6. (a) Draw a diagram of all the forces acting on the person. (1 mark) (b) What condition on the forces in this system is necessary for the person to start sliding? (0.5 mark) (c) What is the maximum angle of the inclined surface for the person to not slide? (3.5 marks)
Homework Answers
Add Answer to:
A person is standing on a ramp of oak boards that is at an angle
?...
