Chapter 23, Problem 30 A tank circuit in a radio transmitter is a series RCL circuit connected to an antenna. The antenna bro

0 0
Add a comment Improve this question Transcribed image text
Answer #1

At resonance,

wL = 1/wC

L = 1/w^2 C

A)

L = 1/(8.5 x 10^6 x 2pi)^2 x 1.9 x 10^-11 = 1.85 x 10^-5 H

B)

L = 1/(3.1 x 10^6 x 2pi)^2 x 1.9 x 10^-11 = 1.39 x 10^-4 H

Comment in case any doubt please rate my answer..

Add a comment
Know the answer?
Add Answer to:
Chapter 23, Problem 30 A tank circuit in a radio transmitter is a series RCL circuit...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • A tank circuit in a radio transmitter is a series RCL circuit connected to an antenna....

    A tank circuit in a radio transmitter is a series RCL circuit connected to an antenna. The antenna broadcasts radio signals at the resonant frequency of the tank circuit. Suppose that a certain tank circuit in a shortwave radio transmitter has a fixed capacitance of 1.2 x 10-11 F and a variable inductance. If the antenna is intended to broadcast radio signals ranging in frequency from 4.6 MHz to 8.4 MHz, find the (a) minimum and (b) maximum inductance of...

  • Design and label a DC series RCL circuit, with all components in series, where resistance is...

    Design and label a DC series RCL circuit, with all components in series, where resistance is 115 ohms, capacitance is 213 pF, and the inductance is 11 mH. What is the resonant frequency of this circuit?

  • A series RCL circuit has a resonant frequency of 720 kHz. If the value of the...

    A series RCL circuit has a resonant frequency of 720 kHz. If the value of the capacitance is 1.80 10-9 F, what is the value of the inductance?

  • 1. Answer the following questions: 1. An RLC circuit is used in a radio to tune...

    1. Answer the following questions: 1. An RLC circuit is used in a radio to tune into an FM station broadcasting at f = 99.7 MHz. The resistance in the circuit is R = 12.6 Ω, and the inductance is L = 1.70 µH. What capacitance should be used? 2. Consider a series RLC circuit with R = 15 ohm, L = 206 mH, C = 75 µF, and a maximum voltage of 147 V. (a) What is the impedance...

  • Chapter 23, Problem 35 A series RCL circuit is at resonance and contains a variable resistor...

    Chapter 23, Problem 35 A series RCL circuit is at resonance and contains a variable resistor that is set to 12a. The power dissipated in the circuit is i,60 w. Assuming that the voltage remains constant, how much power is dissipated when the variable resistor is set to 690Ω7 Note: The ac current and voltage are rms values and powers an average ra e iness indicated otherwise Number Units the tolerance is +/-596

  • I need help for (e),(f), and (g) R 00000 с (a) If an RCL series circuit...

    I need help for (e),(f), and (g) R 00000 с (a) If an RCL series circuit contains a resistance R = 349 2. a capacitance C = 4.4 uF, and an inductance of L = 0.24 H, calculate the inductive reactance X{ if the circuit is connected to a voltage source whose frequency is 449 Hz. Ω | Help Reset Enter X1. = 677.0760487 677.0760487 OK (6) Calculate the capacitive reactance XC for the same conditions in part A. 2...

  • A single loop series RLC circuit is connected to an 42 V ac voltage generator with...

    A single loop series RLC circuit is connected to an 42 V ac voltage generator with a frequency of 60.0 hz. the resistance is R= 270 , the Inductance is L = 300 mh, and the capacitance is C = 21.5 uF. Wgen the generator emf is a maximum, what is the voltage across (a) the generator (b) the resistance (c) the resistance and (d) the inductance? MER PRINTER VERSION BACK NEXT Chapter 31, Problem 093 A single-loop series RLC...

  • Please explain which components should be used. A simple AM radio receiver can be constructed as a by the differential...

    Please explain which components should be used. A simple AM radio receiver can be constructed as a by the differential equation series RLC circuit which can be modelled da R+ L Vext dt dt where L is the inductance, R is the restance, C is the capacitance, q is the resulting charge point in the circuit, and Vext is the voltage of the signal received in the circuit by an antenna When radio waves pass by the antennae, they create...

  • Chapter 30, Problem 061 A coil is connected in series with a 13.4 k2 resistor. An...

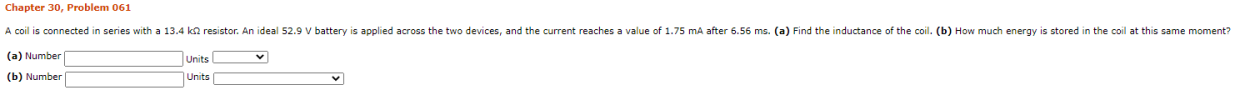

    Chapter 30, Problem 061 A coil is connected in series with a 13.4 k2 resistor. An ideal 52.9 V battery is applied across the two devices, and the current reaches a value of 1.75 mA after 6.56 ms. (a) Find the inductance of the coil. (b) How much energy is stored in the coil at this same moment? (a) Number Units (b) Number Units
