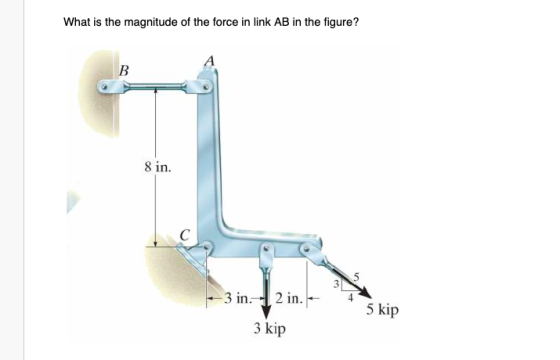

What is the magnitude of the force in link AB in the figure? 8 in. -3...
QUESTION 3 (25 MARKS) a) Figure Q3 showed the connected link of AB, BC and CD. Link AB has the angular velocity of A...
QUESTION 3 (25 MARKS) a) Figure Q3 showed the connected link of AB, BC and CD. Link AB has the angular velocity of A3 rad/s and angular acceleration of a4s = #rad/s 2. If the link AB has move in clockwise rotation for both angular velocity and angular acceleration as shown, determine the angular acceleration of link CD. (CO3: PO2-25 marks) 0.5 m 0.5 m C 1m 16 rad/s s= 3rad /s a AB AB 1 m Figure Q3 [Hibbeler,...
Problem 5.32 Determine the magnitude of force at the pin A and in the cable BC...
Problem 5.32 Determine the magnitude of force at the pin A and in the cable BC needed to support the 540-lb load. Neglect the weight of the boom AB. (Figure 1) PartA Determine the magnitude of force at the pin A Express your answer to three significant figures and include the appropriate units. FA1.13 lb Submit Incorrect, Try Again: 2 attempts remaining Figure < 1of1 > Part B Determine the force in the cable BC Express your answer to three...
A. Determine the force in member AB, and state if the member is in tension or...
A. Determine the force in member AB, and state if the member is
in tension or compression.
B. Determine the force in member AI, and state if the member is
in tension or compression.
C. Determine the force in member BC, and state if the member is
in tension or compression.
D. Determine the force in member BI, and state if the member is
in tension or compression.
E. Determine the force in member CD, and state if the member...
8) For this figure, what is the magnitude of the force on the +2.0 nC charge?...
8) For this figure, what is the magnitude of the force on the +2.0 nC charge? 3 m 42 +2.0 nC 43F 9.0nC 4 m +16.0 nC a) 18.10-9 N b 36 10-9 N 75-10-9 N d 2.5-10-8 N
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1...
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1 of 1 2 m Determine the velocity of block C at the instant 0 = 45° and 0 = 30° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the right and negative value if the velocity is directed to the left. μΑ ] ? Value Vc Units Part B Determine the...
Determine the Force in member AB, AI, BC, BI, CD, CF, CG, CI, DE, DF, EF,...
Determine the Force in member AB, AI, BC, BI, CD, CF, CG, CI,
DE, DF, EF, FG, GH, GI, HI And state if the member is in tension or
compression.
Suppose that P1 = 1.5 kip and P2-24 kip . (Figure 1) Figure 1 of 1 3 kip 3 kip 8 ft 4 ft 10 ft 10 ft 10 ft 10 ft
Compute the force in link AB of the lifting tongs which cross without touching. The force is posi...
Compute the force in link AB of the lifting tongs which cross without touching. The force is positive if in tension, negative if in compression. 16" 16" 15" 23 990 lb 26" lb Answer: AB the tolerance is +/-2% Click if you would like to Show Work for this question: Open Show Work
Compute the force in link AB of the lifting tongs which cross without touching. The force is positive if in tension, negative if in compression. 16" 16"...
3. Link 2 (AB) of the slider crank inversion shown in Figure 3 is rotating at a constant 2 11.00k(rad/s). Determine the angular velocity of link 4 (DC) at the instant shown in the figure. Hints: The...
3. Link 2 (AB) of the slider crank inversion shown in Figure 3 is rotating at a constant 2 11.00k(rad/s). Determine the angular velocity of link 4 (DC) at the instant shown in the figure. Hints: The angle between links 3 and 4 is fized so they have the same angular velocity. Consider Cs as point on Link 3 sliding through the bearing on link 4. (100 points) C3 90° A = (0,0). Figure 3: Slider crank inversion. (110.09,0) cm....
Find the magnitude of the force F required to open the curved door (AB) shown in...
Find the magnitude of the force F required to open the
curved door (AB) shown in the figure
P water = 1000 g/m3
3. Şekilde gösterilen kavisli kapıyı (AB) açmak için gerekli F kuvvetinin büyüklüğünü belirleyiniz. Psu=1000kg/m3 'dir. 5 m SE su water B r = 12 m F Şekil Problem 3
Link AB is rotating at w AB = 5.8 rad/s. (Figure 1) Part A Determine the...
Link AB is rotating at w AB = 5.8 rad/s. (Figure 1) Part A Determine the velocity of the block at the instant = 60°. Figure < 1 of 1 > Express your answer to three significant figures and include the appropriate units. 125 mm ? "! Å Value O 2 Units SB vc = Submit Request Answer WAB 300 mm Provide Feedback
QUESTION 3 (25 MARKS) a) Figure Q3 showed the connected link of AB, BC and CD. Link AB has the angular velocity of A3 rad/s and angular acceleration of a4s = #rad/s 2. If the link AB has move in clockwise rotation for both angular velocity and angular acceleration as shown, determine the angular acceleration of link CD. (CO3: PO2-25 marks) 0.5 m 0.5 m C 1m 16 rad/s s= 3rad /s a AB AB 1 m Figure Q3 [Hibbeler,...
Problem 5.32 Determine the magnitude of force at the pin A and in the cable BC needed to support the 540-lb load. Neglect the weight of the boom AB. (Figure 1) PartA Determine the magnitude of force at the pin A Express your answer to three significant figures and include the appropriate units. FA1.13 lb Submit Incorrect, Try Again: 2 attempts remaining Figure < 1of1 > Part B Determine the force in the cable BC Express your answer to three...
A. Determine the force in member AB, and state if the member is
in tension or compression.
B. Determine the force in member AI, and state if the member is
in tension or compression.
C. Determine the force in member BC, and state if the member is
in tension or compression.
D. Determine the force in member BI, and state if the member is
in tension or compression.
E. Determine the force in member CD, and state if the member...
8) For this figure, what is the magnitude of the force on the +2.0 nC charge? 3 m 42 +2.0 nC 43F 9.0nC 4 m +16.0 nC a) 18.10-9 N b 36 10-9 N 75-10-9 N d 2.5-10-8 N
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1 of 1 2 m Determine the velocity of block C at the instant 0 = 45° and 0 = 30° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the right and negative value if the velocity is directed to the left. μΑ ] ? Value Vc Units Part B Determine the...
Determine the Force in member AB, AI, BC, BI, CD, CF, CG, CI,
DE, DF, EF, FG, GH, GI, HI And state if the member is in tension or
compression.
Suppose that P1 = 1.5 kip and P2-24 kip . (Figure 1) Figure 1 of 1 3 kip 3 kip 8 ft 4 ft 10 ft 10 ft 10 ft 10 ft
Compute the force in link AB of the lifting tongs which cross without touching. The force is positive if in tension, negative if in compression. 16" 16" 15" 23 990 lb 26" lb Answer: AB the tolerance is +/-2% Click if you would like to Show Work for this question: Open Show Work
Compute the force in link AB of the lifting tongs which cross without touching. The force is positive if in tension, negative if in compression. 16" 16"...
3. Link 2 (AB) of the slider crank inversion shown in Figure 3 is rotating at a constant 2 11.00k(rad/s). Determine the angular velocity of link 4 (DC) at the instant shown in the figure. Hints: The angle between links 3 and 4 is fized so they have the same angular velocity. Consider Cs as point on Link 3 sliding through the bearing on link 4. (100 points) C3 90° A = (0,0). Figure 3: Slider crank inversion. (110.09,0) cm....
Find the magnitude of the force F required to open the
curved door (AB) shown in the figure
P water = 1000 g/m3
3. Şekilde gösterilen kavisli kapıyı (AB) açmak için gerekli F kuvvetinin büyüklüğünü belirleyiniz. Psu=1000kg/m3 'dir. 5 m SE su water B r = 12 m F Şekil Problem 3
Link AB is rotating at w AB = 5.8 rad/s. (Figure 1) Part A Determine the velocity of the block at the instant = 60°. Figure < 1 of 1 > Express your answer to three significant figures and include the appropriate units. 125 mm ? "! Å Value O 2 Units SB vc = Submit Request Answer WAB 300 mm Provide Feedback
