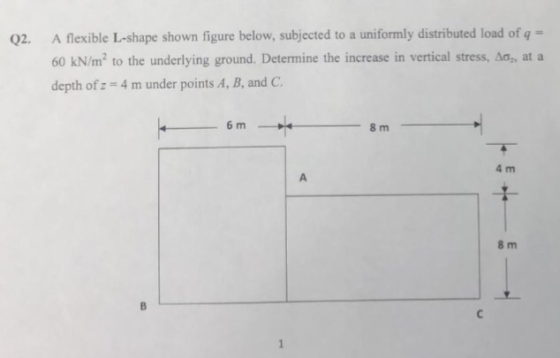

2. A flexible L-shape shown figure below, subjected to a uniformly distributed load of q =...
Solve only for point C and use Newmark Chart method.
Ilyur 10. TU 10.17 Refer to Figure 10.47. A flexible rectangular area is subjected to a uniformly distributed load of g = 330 kN/m². Determine the increase in vertical stress, Ao,, at a depth of z = 6 m under points A, B, and C. - 18 m- 7.2 m 9 m 3.6 m ---- q=330 kN/m2
The
Beam shown will be subjected to a concentrated live load of 100kN,
a uniformly distributed live load of 50kN/m and a uniformly
distributed dead load of 20kN/m.
45.) determine the maximum reaction at B
46.) determine the maximum positive shear at C
47.) determine the maximum negative moment at B
The beam shown will be subjected to a concentrated live load of 100 KN, a uniformly distributed live load of 50 kN/m and a uniformly distributed dead load of...
Problem IV (25%) KN force is uniformly distributed over a rectangular footing of size 3x2m shown c footing at D under the totat of 600 force below. Determine the vertical stress increase at a depth of 2m center. If another footing of size 3xlm with a total load of 400 KN is constructed adjoining the previous ootina what is the additional stress at point D at the same depth due to the construction of the nd footing? Fodting 1 2...
A cantilever is subjected to a uniformly distributed load as shown in the figure below 9 ㅠ A OB C L a b = { Considering the above system determine the following information 31 31 Derive the equation for the slope, Derive the equation for the deflection curve, Determine the value of the deflection at point C (10) (10) (5) 32
Q1 A simply supported beam of length L = 10 m carries a uniformly distributed load w = of 10 kN/m, as shown in Figure Q1 (a). The beam is made from a I-section and the thickness for all the three rectangular members is of 10 mm. All other dimensions are illustrated in Figure Q1 (b). Self-weight of the beam is neglected. 300 mm w = 10 kN/m 300 mm L/4 L/2 L/4 300 mm Figure Q1 (a) Figure Q1...
I want problem solving
5.8-3 A simply supported wood beam is subjected to uniformly distributed load q. The width of the beam is 150 mm and the height is 200 mm. Determine the nor- mal stress and the shear stress at point C. Show these stresses on a sketch of a stress element at point C q =5.8 kN/m 75 mm С B A Μ 1 m 3 m 200 mm Z 150 mm PROBLEM 5.8-3
The reinforced concrete beam shown in Figure-2 is to be subjected to the following uniformly distributed loads over the entire length: DL = 14 kn/m (including self-weight) and LL = 20kN/m, fc = 32 MPa. For architectural reasons the beam width is set at 500 mm. Determine the effective depth required if ku = 0.25 for the section of maximum positive bending moment. Then design the reinforcement required. zin Figure-2
2 A simply supported beam of length L = 10 m carries both a uniformly distributed load w, of 10 kN/m and a non-uniformly distributed load with a maximum value of w2 =10 kN/m at its roller support, as shown in Figure Q2 (a). The beam is made from a I-section and the thickness for all the three rectangular members is of 10 mm. All other dimensions are illustrated in Figure 02 (b). Self-weight of the beam is neglected. 300...
Q2 A simply supported beam of length L = 10 m carries a uniformly distributed load w = of 10 kN/m, as shown in Figure Q2 (a). The beam is made from a I-section and the thickness for all the three rectangular members is of 10 mm. All other dimensions are illustrated in Figure Q2 (b). Self-weight of the beam is neglected. 300 mm w = 10 kN/m т 300 mm 已 L/44 L/2 L/44 300 mm Figure Q2 (a)...
With a U cross section, is subjected to uniformly distributed force 11 kN/m and a concentrated load of 12 kN as shown. (a) the reaction at supports A and B, (b) sketch the shear diagram and the moment diagram, (c) determine the location of neutral axis of the cross section and calculate its area moment of inertia about the neutral axis, and (d) determine absolute maximum bending stress and (e) absolute maximum transverse shear stress.
