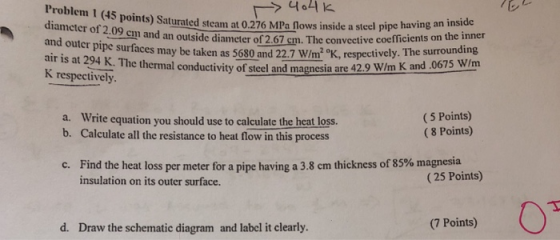

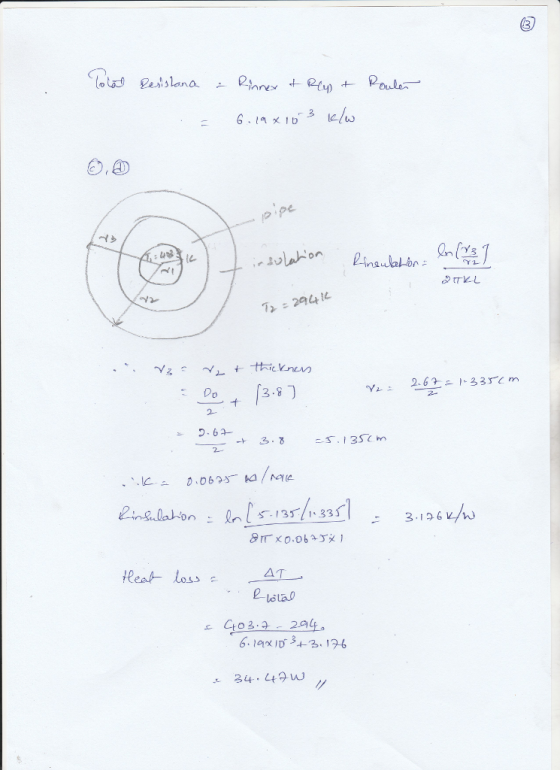

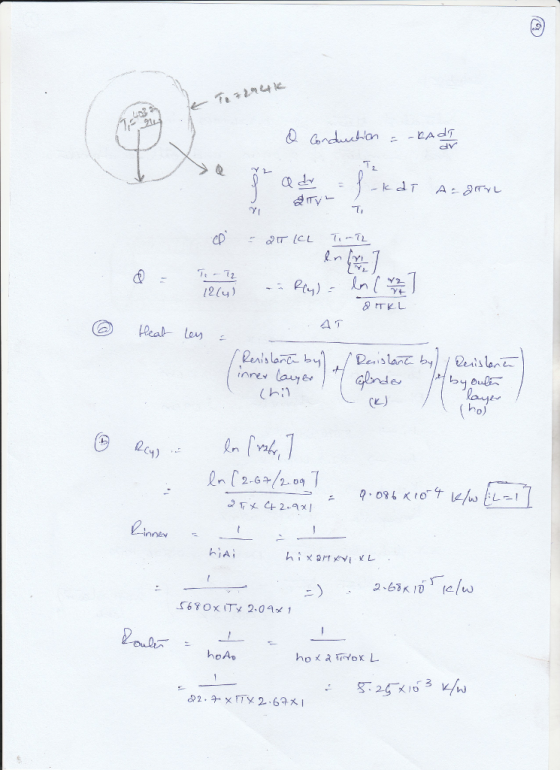

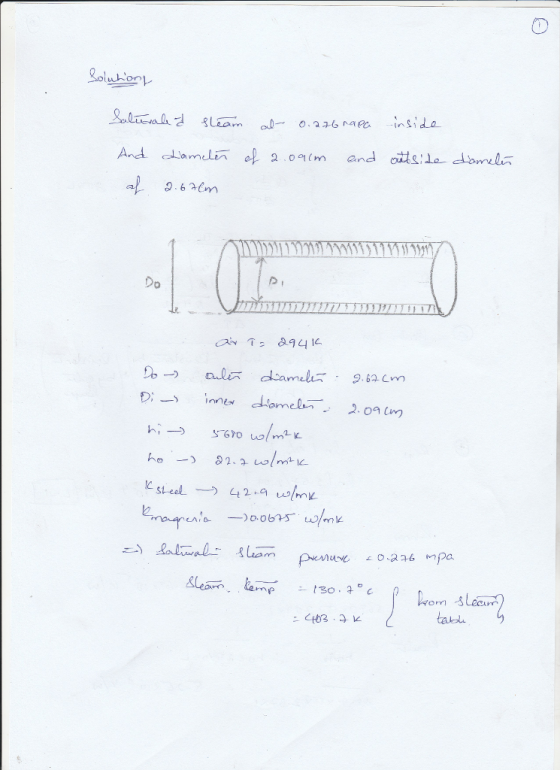

l'roblem 1 (45 point diameter of 2.09 em and an outside diameter...
A steam main of 150 mm outside diameter containing wet steam at 28 bar is insulated...
A steam main of 150 mm outside diameter containing wet steam at 28 bar is insulated with an inner layer of diatomaceous earth, 40 mm thick, and an outer layer of 85 % magnesia, 25 mm thick. The inside surface of the pipe is at the steam temperature, and the heat transfer coefficient for the outside surface of the lagging is 17 W/m2 K. The thermal conductivities of diatomaceous earth and 85 % magnesia are 0.09, and 0.06 40 ME...
A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter...
A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter of 5 cm and an outer diameter of 5.5 cm is carrying a fluid at a temperature of 80 °C. The heat transfer coefficient for the fluid inside the pipe is 1000 W / m2 *K. The heat transfer coefficient of the air is 5 W / m2 *K and the air at a substantial distance from the pipe is at 25 °C. At...
a 0.4 m diameter, thin walled steel pipe is used to transport saturated steam Problem 3.049...
a 0.4 m diameter, thin walled steel pipe is used to transport
saturated steam
Problem 3.049 A 0.4-m-diameter, thin-walled steel pipe is used to transport saturated steam at a pressure of 20 bars in a room for which the air temperature is 25°C and the convection heat transfer coefficient at the outer surface of the pipe is 20 W/m2-K. (a) What is the heat loss per unit length from the bare pipe (no insulation)? (b) Estimate the heat loss per...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water i...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water in the pipe is um-0.31 m/s and the bulk temperature is 323 K (density 988 kg m-3; viscosity 0.00055 kg m' sı. Pr 3.56, thermal conductivity k 0.64 W m1 Kt). The material of the pipe has thermal conductivity k 0.61 W...
art II- Show your work 17 Marks team at 320°C flows in a stainless steel pipe...
art II- Show your work 17 Marks team at 320°C flows in a stainless steel pipe (kr 15 W/m "C) whose inner and outer diameters are 5 em and 5.5 cm, respectively. The pipe is covered with 3-cm-thick glass wool insulation (k 0.038 W m·°C). Heat is lost to the surroundings at 5°C by natural convection and radiation, with a combined natural convection and radiation heat transfer coefficient of hi-15 w/m.。C. The convective heat transfer coefficient inside the pipe to...
Steam at 150 °C flows in a stainless steel pipe which has a thermal conductivity of...
Steam at 150 °C flows in a stainless steel pipe which has a thermal conductivity of 16 W m-1 K -1 whose inner and outer diameters are 5 and 6 cm respectively. The pipe is covered with 3 cm think insulation having a thermal conductivity of 0.035 W m-1 K -1 . The combined convection and radiation heat transfer coefficient at the outside surface of the insulation is 20 W m-2 K -1 and the surroundings are at 10 °C....
1. A steel tube [k 15 W/(m.°C)] of outside diameter 7.6 cm and thickness 1.3 cm...
1. A steel tube [k 15 W/(m.°C)] of outside diameter 7.6 cm and thickness 1.3 cm is covered with an insulation material [k 0.2 W/(m. C)] of thickness 2 cm. A hot gas at 320°C with a heat transfer coefficient of 200 W/(m2.C) flows inside the tube. The outer surface of the insulation is exposed to cooler air at 20°C with a heat transfer coefficient of 50 W/(m2·°C). Calculate a) The heat loss from the tube to the air for...
A pipe contains a heated fluid at 777oC and the outside is at 25oC. What is...
A pipe contains a heated fluid at 777oC and the outside is at 25oC. What is the heat transfer per meter of steel (k=43 W/(m∙K)) pipe (kW/m) for a pipe whose inside diameter is 13 cm and outside diameter is 17 cm
Problem 3 (30): Steam at Too,1 340 °C flows in a cast iron pipe [k- 80 W/m.°C] whose inner and outer diameter are Di 6 cm and D2 -8 cm, respectively. The pipe is covered with a 4-cm thick glass wool...
Problem 3 (30): Steam at Too,1 340 °C flows in a cast iron pipe [k- 80 W/m.°C] whose inner and outer diameter are Di 6 cm and D2 -8 cm, respectively. The pipe is covered with a 4-cm thick glass wool insulation [k-0.05 W/ m°C]. Heat is lost to the surroundings at Too,2 - 21°C by natural convection and radiation, with a combined heat transfer coefficient of h- 18 W/m2 °C. Taking the heat transfer coefficient inside the pipe to...
3. Heat Transfer Mechanism: (Total points 30 Suppose copper pipe in a parabolic concentrator is c...
3. Heat Transfer Mechanism: (Total points 30 Suppose copper pipe in a parabolic concentrator is carrying heat transfer fluid (HTF) of 450 °C. The ambient temperature is 25 °C. The pipe has a diameter of 5 cm but the pipe wall thickness is 3 mm. Determine the rate of heat conduction through the pipe wall per unit area of wa Copper has thermal conductivity k-400 w/m.К. (Points 10) If the pipe temperature is same as that of fluid inside, calculate...
a 0.4 m diameter, thin walled steel pipe is used to transport
saturated steam
Problem 3.049 A 0.4-m-diameter, thin-walled steel pipe is used to transport saturated steam at a pressure of 20 bars in a room for which the air temperature is 25°C and the convection heat transfer coefficient at the outer surface of the pipe is 20 W/m2-K. (a) What is the heat loss per unit length from the bare pipe (no insulation)? (b) Estimate the heat loss per...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water in the pipe is um-0.31 m/s and the bulk temperature is 323 K (density 988 kg m-3; viscosity 0.00055 kg m' sı. Pr 3.56, thermal conductivity k 0.64 W m1 Kt). The material of the pipe has thermal conductivity k 0.61 W...
art II- Show your work 17 Marks team at 320°C flows in a stainless steel pipe (kr 15 W/m "C) whose inner and outer diameters are 5 em and 5.5 cm, respectively. The pipe is covered with 3-cm-thick glass wool insulation (k 0.038 W m·°C). Heat is lost to the surroundings at 5°C by natural convection and radiation, with a combined natural convection and radiation heat transfer coefficient of hi-15 w/m.。C. The convective heat transfer coefficient inside the pipe to...
1. A steel tube [k 15 W/(m.°C)] of outside diameter 7.6 cm and thickness 1.3 cm is covered with an insulation material [k 0.2 W/(m. C)] of thickness 2 cm. A hot gas at 320°C with a heat transfer coefficient of 200 W/(m2.C) flows inside the tube. The outer surface of the insulation is exposed to cooler air at 20°C with a heat transfer coefficient of 50 W/(m2·°C). Calculate a) The heat loss from the tube to the air for...
Problem 3 (30): Steam at Too,1 340 °C flows in a cast iron pipe [k- 80 W/m.°C] whose inner and outer diameter are Di 6 cm and D2 -8 cm, respectively. The pipe is covered with a 4-cm thick glass wool insulation [k-0.05 W/ m°C]. Heat is lost to the surroundings at Too,2 - 21°C by natural convection and radiation, with a combined heat transfer coefficient of h- 18 W/m2 °C. Taking the heat transfer coefficient inside the pipe to...
3. Heat Transfer Mechanism: (Total points 30 Suppose copper pipe in a parabolic concentrator is carrying heat transfer fluid (HTF) of 450 °C. The ambient temperature is 25 °C. The pipe has a diameter of 5 cm but the pipe wall thickness is 3 mm. Determine the rate of heat conduction through the pipe wall per unit area of wa Copper has thermal conductivity k-400 w/m.К. (Points 10) If the pipe temperature is same as that of fluid inside, calculate...
