Question

A toroid that has a mean radius equal to 28.5 cm and circular loops with radil equal to 2.50 cm is wound with a superconducting wire. The wire has a length equal to 1000 m and carries a current of 440 A (a) What is the number of turns of the wire? (b) What is the magnetic field strength and magnetic energy density at the mean radius? MJ/m3 (c) Estimate the total energy stored in this toroid by assuming that the energy density is uniformly distributed in the region inside the toroid. kJ

science   Advanced-Physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

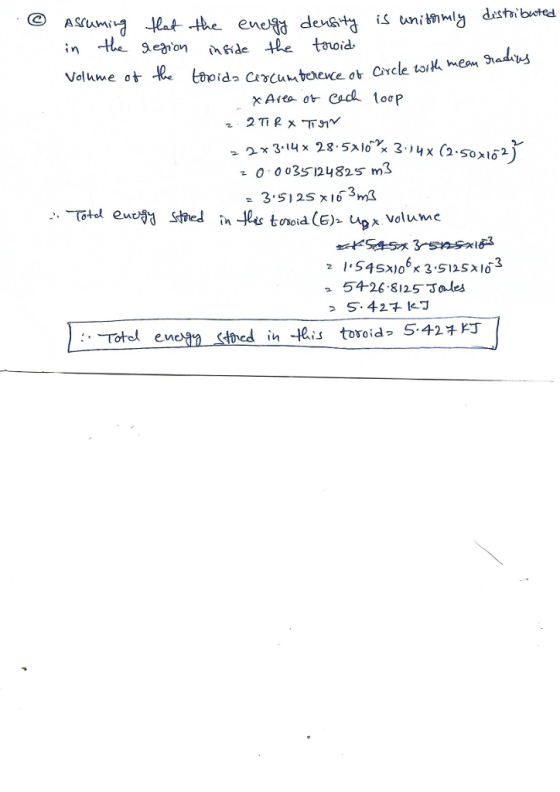

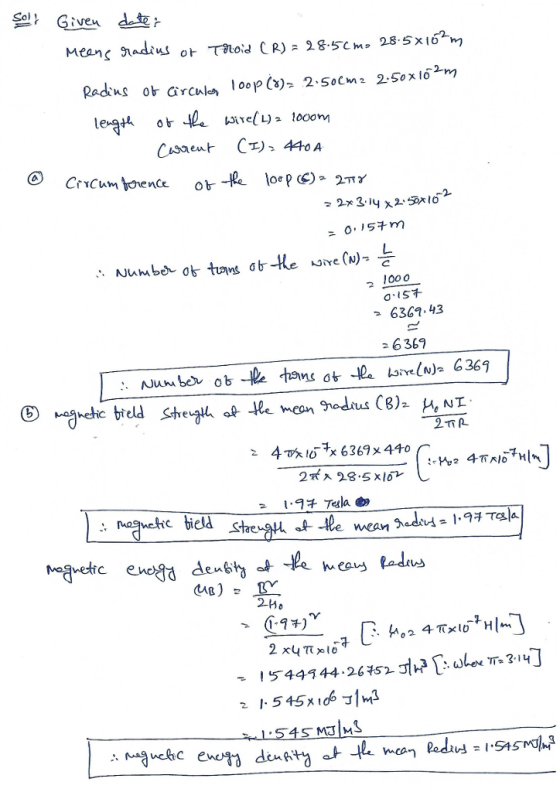

Answer #1

0 0
Add a comment
