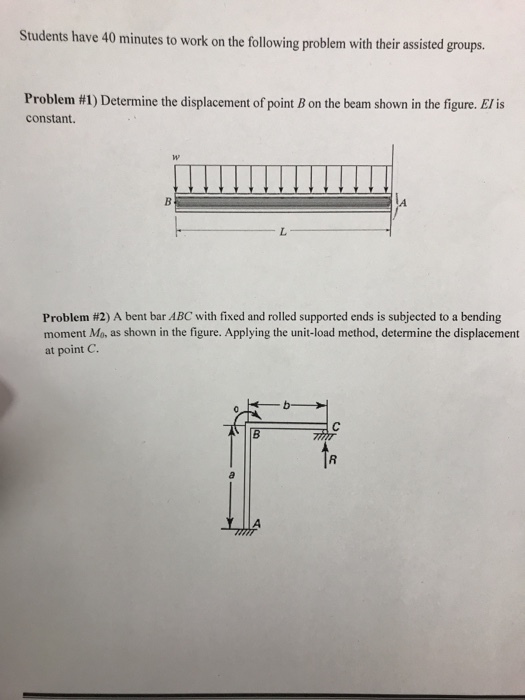

Students have 40 minutes to work on the following problem with their assisted groups. Problem #1)...
Q2 The simply supported beam of length is subjected to a vertical point load at its...
Q2 The simply supported beam of length is subjected to a vertical point load at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as and. Please provide your answers in terms of letters. Self-weight of the beam is neglected. Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram [10] (b) Determine both the slope and deflection at the...
Q5. The cantilever beam, AC, is subjected to the load case shown in Figure 5. For the loading shown, do the following: [10 Marks] a) Calculate the magnitude and direction of the reactions at A b) Usi...
Q5. The cantilever beam, AC, is subjected to the load case shown in Figure 5. For the loading shown, do the following: [10 Marks] a) Calculate the magnitude and direction of the reactions at A b) Using the Macaulay function, determine the displacement in y of the point B of the beam (x 2.4 m from the support at A) [10 Marks] c) Determine the slope at B. [5 Marks] The beam has a Young's modulus of E-200 GPa and...
The simply supported beam of length L is subjected to uniformly distributed load of w and...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
Q2 The simply supported beam of length L is subjected to a vertical point load P...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1, E. Self-weight of the beam is neglected. P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10]...
Q2 The simply supported beam of length L is subjected to a vertical point load P...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1,E. Self-weight of the beam is neglected P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10] (b)...
How to find the s.f and bending moment at the MIDPOINT ? Do we need to...
How to find the s.f and bending moment at the MIDPOINT ? Do we
need to draw the diagram too?

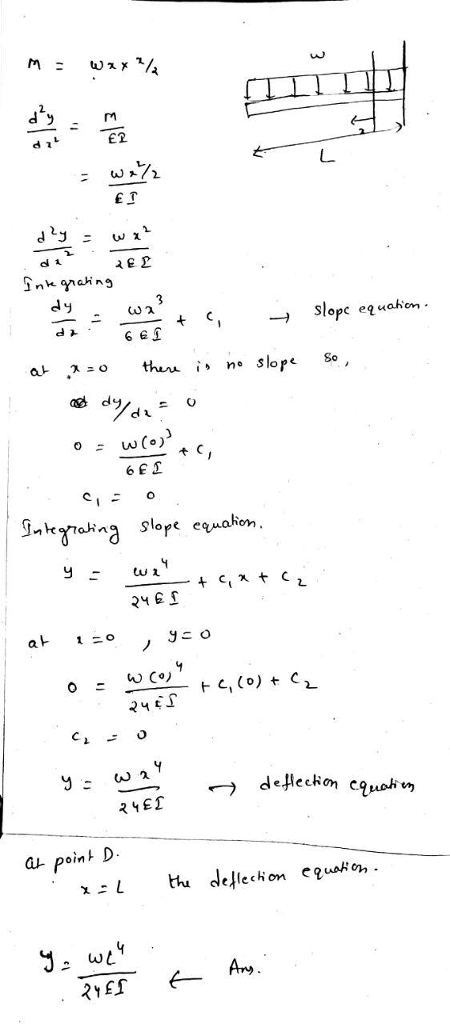

This is my answer for b ii ,, Is there any problem?
MEB1043 A cantilever beam is subjected to a vertical load of 12 kN at point B as shown in FIGURE Q3b. 12 kN FIGURE Q3b Determine the shear force and bending moment at the mid-point of the beam [8 marks] Draw the shear-force and bending-moment diagrams for the...
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine t...
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
d4studets and solv week#8Recitation Work in groups of 3-4 students and solve the problems below. Each person must w...
d4studets and solv week#8Recitation Work in groups of 3-4 students and solve the problems below. Each person must write up the solutions using the format required for HW in the class and attach the Recitation evaluation sheet to the front. Problem 1: Given: The beam with 2 concentrated loads shown below. P1-12 kN, P2 14 kN. Find: The normal force, shear force and internal bending moment at point C along the beam. C is not an internal hinge, just the...
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the...
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. Using the table in Appendix C, determine the displacement at B and the slope at B. 4 kip 6 kip В 6 ft 6 ft Problem 9.5 The W410x53 beam is made of A-36 steel has a fixed support at A and a roller support at C. The beam is subjected to the loading shown. Using the table in Appendix C, (a)...
Problem 3 (19 points): A simply supported beam ABCD carries a uniformly distributed load, w, and...
Problem 3 (19 points): A simply supported beam ABCD carries a uniformly distributed load, w, and a concentrated load, F, as shown in the figure. All the dimensions are given in the figure, and the weight of the beam is neglected a) Draw the free body diagram for the beam, showing all the applied and reaction forces. Find the reaction forces F=14 kN .6m b) Give the expression for the shear force, V- V(x), and the bending moment M M(x),...
Q2 The simply supported beam of length is subjected to a vertical point load at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as and. Please provide your answers in terms of letters. Self-weight of the beam is neglected. Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram [10] (b) Determine both the slope and deflection at the...
Q5. The cantilever beam, AC, is subjected to the load case shown in Figure 5. For the loading shown, do the following: [10 Marks] a) Calculate the magnitude and direction of the reactions at A b) Using the Macaulay function, determine the displacement in y of the point B of the beam (x 2.4 m from the support at A) [10 Marks] c) Determine the slope at B. [5 Marks] The beam has a Young's modulus of E-200 GPa and...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1, E. Self-weight of the beam is neglected. P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10]...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1,E. Self-weight of the beam is neglected P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10] (b)...
How to find the s.f and bending moment at the MIDPOINT ? Do we
need to draw the diagram too?
This is my answer for b ii ,, Is there any problem?
MEB1043 A cantilever beam is subjected to a vertical load of 12 kN at point B as shown in FIGURE Q3b. 12 kN FIGURE Q3b Determine the shear force and bending moment at the mid-point of the beam [8 marks] Draw the shear-force and bending-moment diagrams for the...
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
d4studets and solv week#8Recitation Work in groups of 3-4 students and solve the problems below. Each person must write up the solutions using the format required for HW in the class and attach the Recitation evaluation sheet to the front. Problem 1: Given: The beam with 2 concentrated loads shown below. P1-12 kN, P2 14 kN. Find: The normal force, shear force and internal bending moment at point C along the beam. C is not an internal hinge, just the...
Problem 9.4 The W10x15 cantilevered beam is made of A-36 steel and is subjected to the loading shown. Using the table in Appendix C, determine the displacement at B and the slope at B. 4 kip 6 kip В 6 ft 6 ft Problem 9.5 The W410x53 beam is made of A-36 steel has a fixed support at A and a roller support at C. The beam is subjected to the loading shown. Using the table in Appendix C, (a)...
Problem 3 (19 points): A simply supported beam ABCD carries a uniformly distributed load, w, and a concentrated load, F, as shown in the figure. All the dimensions are given in the figure, and the weight of the beam is neglected a) Draw the free body diagram for the beam, showing all the applied and reaction forces. Find the reaction forces F=14 kN .6m b) Give the expression for the shear force, V- V(x), and the bending moment M M(x),...
