![Electric potential of a non-uniformly charged rod 10 points] A non-uniformly charged rod with length L = 10 cm has a charge d](http://img.homeworklib.com/questions/dab75860-c208-11ec-8823-27350e139337.png?x-oss-process=image/resize,w_560)
I need help with Part A through Part E. The help is greatly appreciated!
Homework Answers

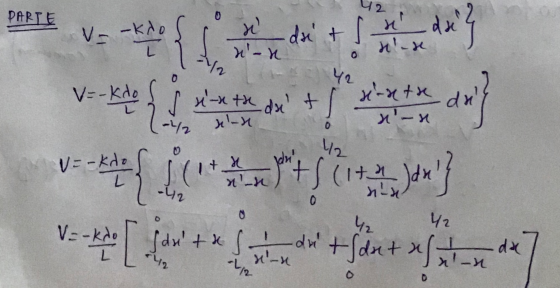

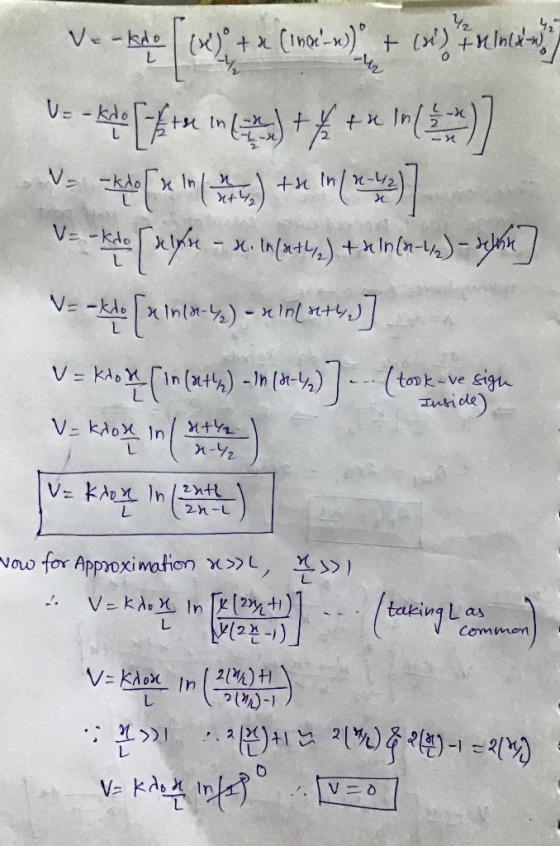

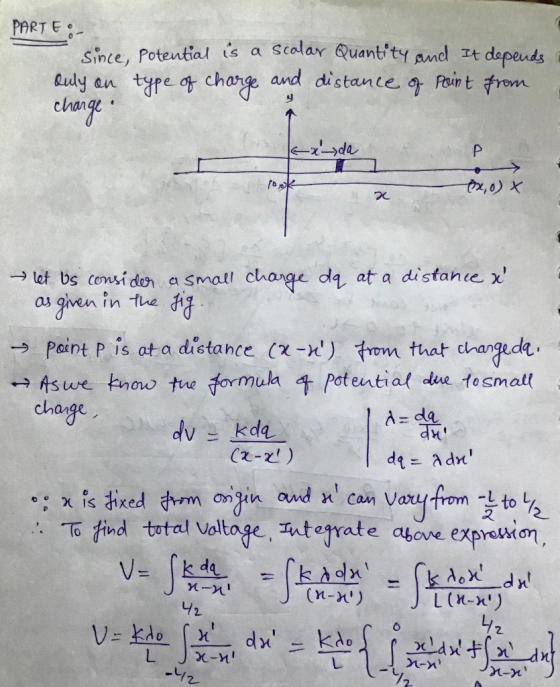

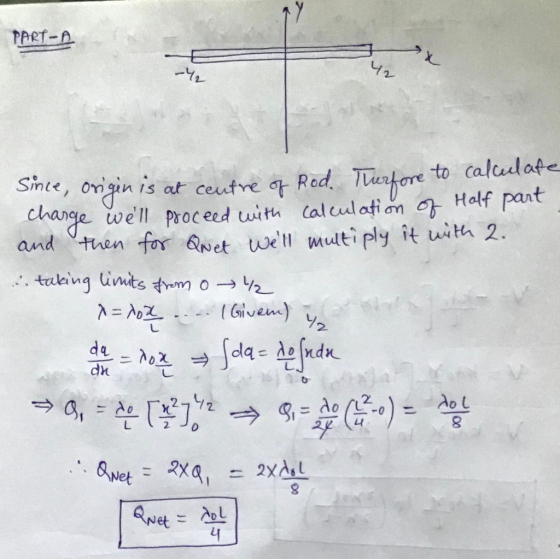

We need to use here integration method to calculate overall charge and potential at any point... in this kind of questions we will first consider any general point and then put the values to calculate as per our need. If u get any difficulties plz comment below so that I can recorrect it.
