A block is at rest on a plank whose angle can be varied. The angle is...

A block is at rest on a plank whose angle can be varied. The angle is gradually increased from 0 deg. At 26.1°, the block starts to slide down the incline, traveling 3.40 m down the incline in 2.10 s. Calculate the coefficient of static friction between the block and the plank. Motion of a block If static friction acts on the block, does it move? What is its acceleration in this case? Calculate the kinetic coefficent of friction between the block and the plank.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

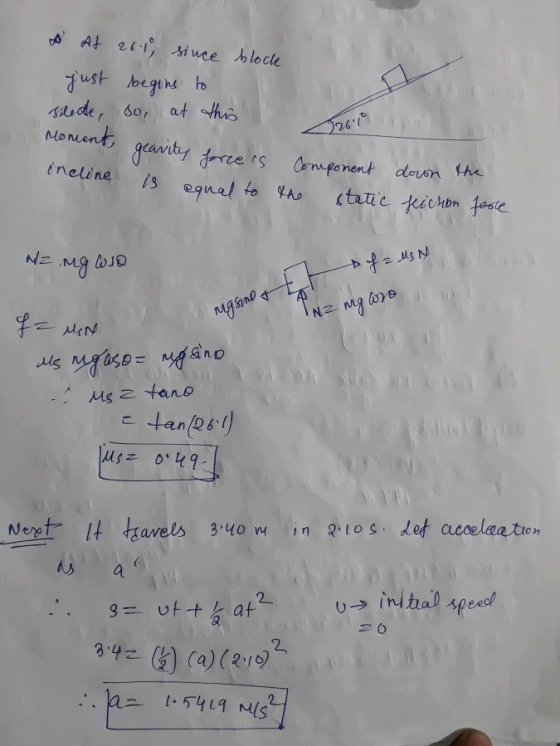

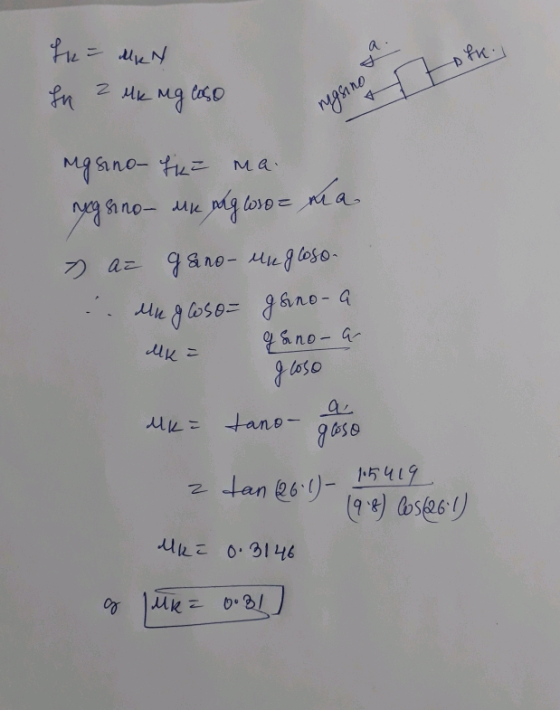

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A block is at rest on a plank whose angle can be varied. The angle is...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A block is at rest on a plank whose angle can be varied. The angle is...

    A block is at rest on a plank whose angle can be varied. The angle is gradually increased from 0 deg. At 32.9°, the block starts to slide down the incline, traveling 2.80 m down the incline in 1.50 s. Calculate the coefficient of static friction between the block and the plank. Motion of a block If static friction acts on the block, does it move? What is its acceleration in this case?OK

  • A) A block is at rest on a plank whose angle can be varied. The angle...

    A) A block is at rest on a plank whose angle can be varied. The angle is gradually increased from 0 deg. At 33.3°, the block starts to slide down the incline, traveling 3.50 m down the incline in 1.70 s. Calculate the coefficient of static friction between the block and the plank. B) Calculate the kinetic coefficent of friction between the block and the plank.

  • aih enu Contents Grades Course Contents » » Homework set #3 (due Tues 9/25 at O...

    aih enu Contents Grades Course Contents » » Homework set #3 (due Tues 9/25 at O Timer ] Notes ฮ่ Evaluate @Feedback-Prin r Ablock is at rest on a plank whose angle can be varied. The angle is gradually increased from O deg. At 32.o, the block starts to slide down the incline, traveling 3,20 m down the incline in 2.40 s. Calculate the static friction between the block and the plänk. If static friction acts on the block, does...

  • A block is at rest on a plank whose angle can be varied. The angle is...

    A block is at rest on a plank whose angle can be varied. The angle is gradually increased from 0 deg. At 31.3

  • A box is placed on a plank. One end of the plank is gradually raised. When...

    A box is placed on a plank. One end of the plank is gradually raised. When the angle of inclination with the horizontal reaches 30, the box starts to slip, and then slides 2.5 m down the plank in 4.5 seconds. Find the Coefficient of static friction, and (b) coefficient of kinetic friction between the box and the plank.

  • (7%) Problem 13: A box slides down a plank of length d that makes an angle...

    (7%) Problem 13: A box slides down a plank of length d that makes an angle of θ with the horizontal as shown. μk is the kinetic coefficient of friction and us is the static coefficient of friction Otheexpertta.comm 33% Part (a) Enter an expression for the minimum angle (in degrees) the box will begin to slide. θmin-atan(με) Correct! 33% Part (b) Enter an expression for the nonconservative work done by kinetic friction as the block slides down the plank....

  • A 2.10-kg block starts from rest at the top of a 30.0° incline and slides a...

    A 2.10-kg block starts from rest at the top of a 30.0° incline and slides a distance of 2.10 m down the incline in 1.00 s. (a) Find the magnitude of the acceleration of the block. m/s2 (b) Find the coefficient of kinetic friction between block and plane. (c) Find the friction force acting on the block. magnitude N direction ---Select--- up the incline down the incline normal to the incline and upward normal to the incline and downward (d)...

  • Consider a block of wood given an initial velocity directed up an incline of angle θ....

    Consider a block of wood given an initial velocity directed up an incline of angle θ. It reaches some maximum distance up the incline, turns around, and slides back down. There is friction present. Take the motion of the block to be after any push necessary to provide the initial velocity. (a) Draw and label separate free body diagrams (FBDs) for (i) the motion up the incline and (ii) the motion back down. Include coordinate axes and indicate acceleration. (b)...

  • A 3.90-kg block starts from rest at the top of a 30.0° incline and slides a...

    A 3.90-kg block starts from rest at the top of a 30.0° incline and slides a distance of 2.10 m down the incline in 2.00 s. (a) Find the magnitude of the acceleration of the block. (b) Find the coefficient of kinetic friction between block and plane. (c) Find the friction force acting on the block. (d) Find the speed of the block after it has slid 2.10 m.

  • A 29.5 kg block is connected to an empty 1.00 kg bucket by a cord running...

    A 29.5 kg block is connected to an empty 1.00 kg bucket by a cord running over a frictionless pulley (Fig. 4-57). The coefficient of static friction between the table and the block is0.420 and the coefficient of kinetic friction between the table and the block is 0.320. Sand is gradually added to the bucket until the system just begins to move. The mass of the sand added to the bucket is 11.39 kg Calculate the acceleration of the system...
