A) A block is at rest on a plank whose angle can be varied. The angle...

A) A block is at rest on a plank whose angle can be varied. The angle is gradually increased from 0 deg. At 33.3°, the block starts to slide down the incline, traveling 3.50 m down the incline in 1.70 s. Calculate the coefficient of static friction between the block and the plank.
B) Calculate the kinetic coefficent of friction between the block and the plank.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

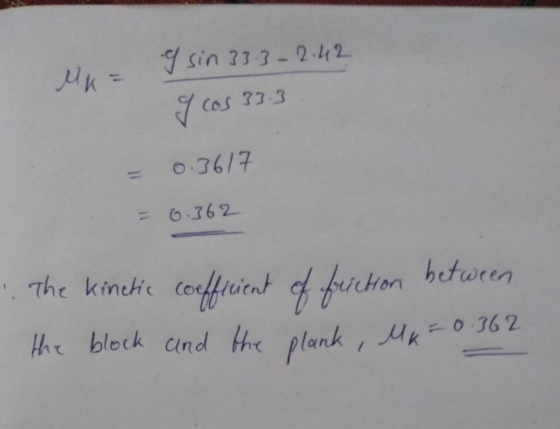

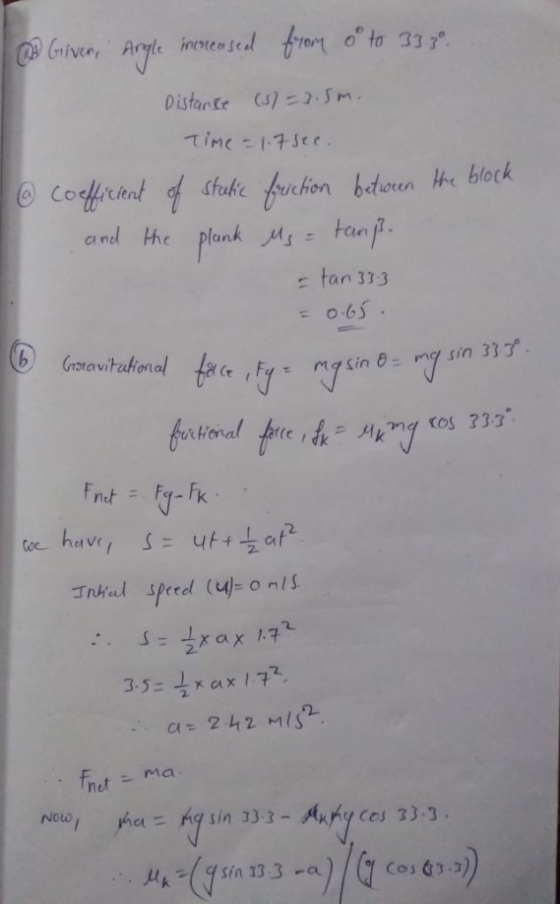

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A) A block is at rest on a plank whose angle can be varied. The angle...
