Homework Answers
Summary:

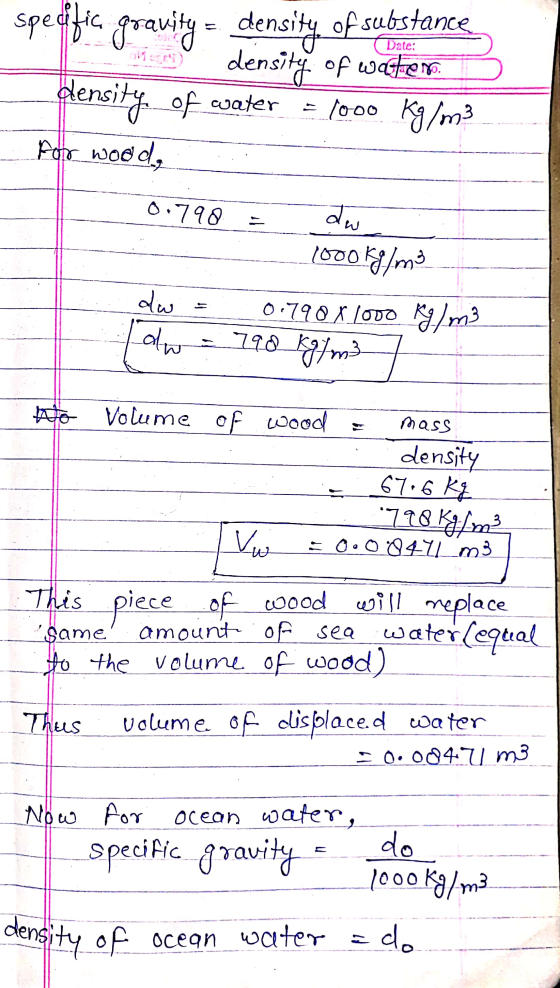

specific gravity is the ratio of density of substance to the
density of water. First I calculated volume of the wood piece then
weight of the wood piece. And then I calculated weight of the

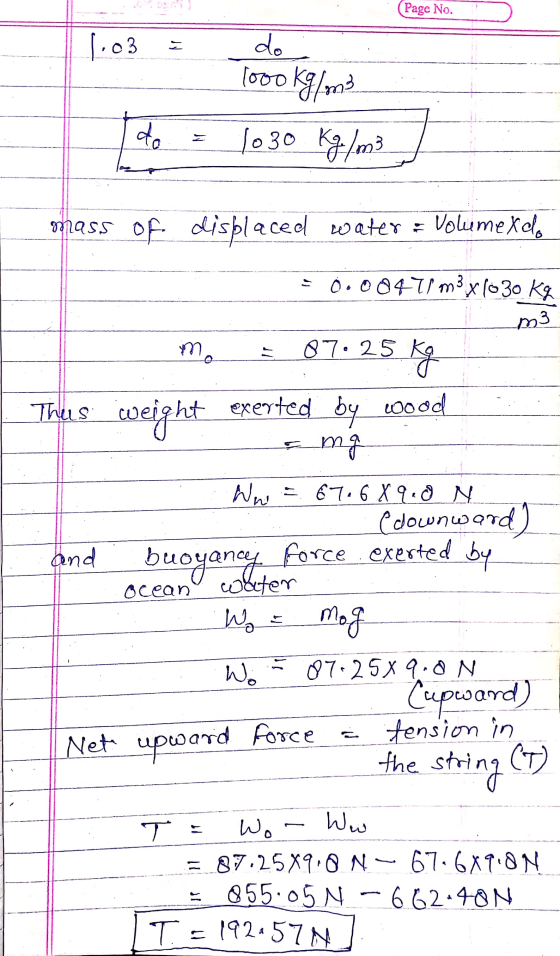

displaced ocean water. Which acts as buoyancy force. The difference
of buoyancy force and weight of wood will be equal to the tension
in the string.
Add Answer to:

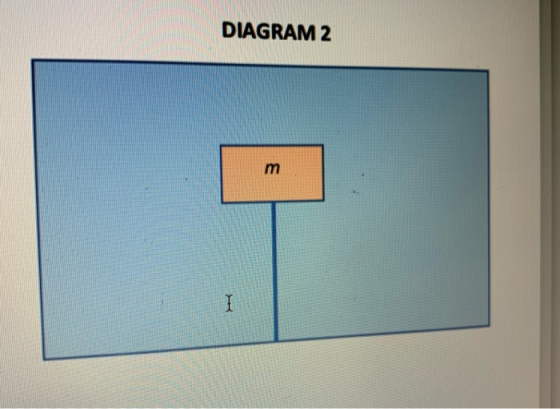

Refer to diagram 2.
A piece of wood (mass 67.6 kg, specific gravity 0.798, is held...
