Homework Answers
Given that:
The A-36 steel sheet roll is supported as shown in the figure
The allowable bending stress is 165 MPa
The modulus of elasticity for A-36 steel is 200 GPa

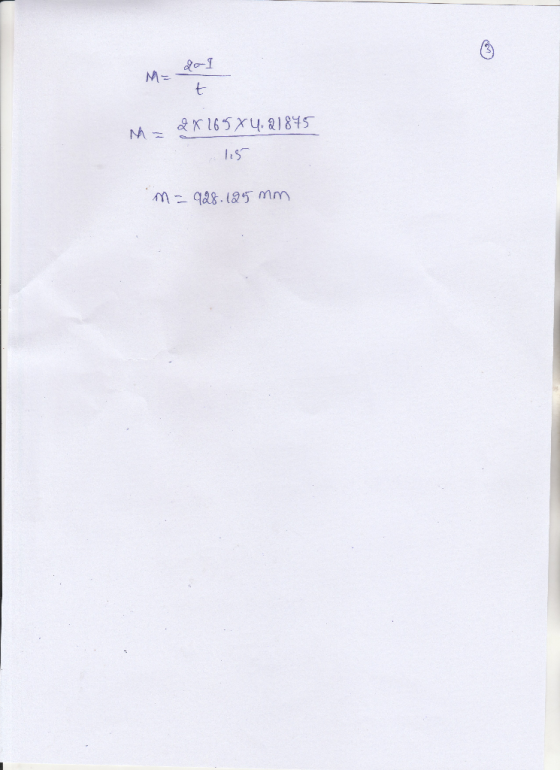

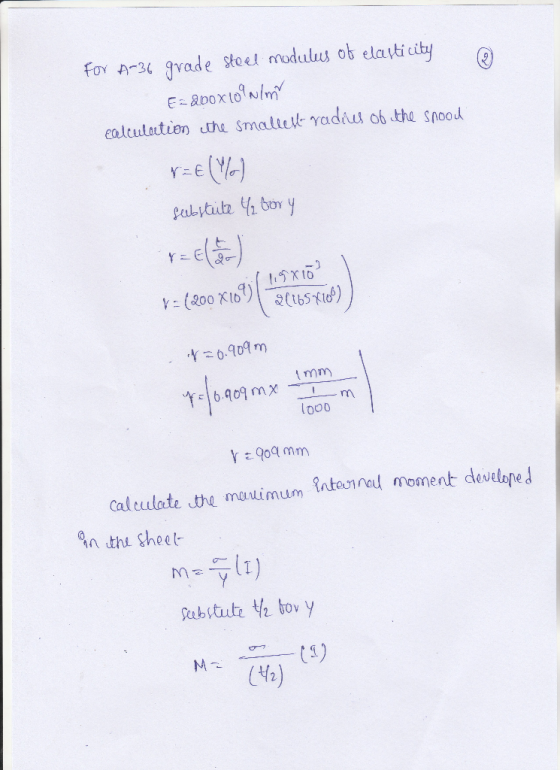

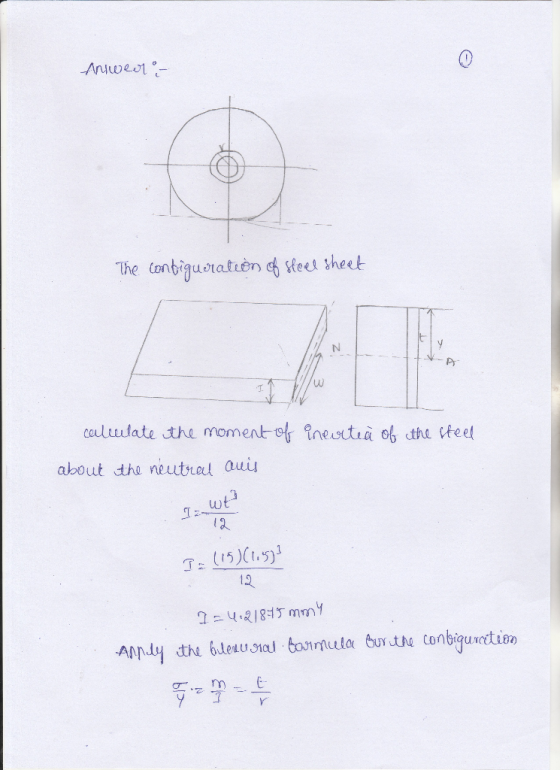

Add Answer to:

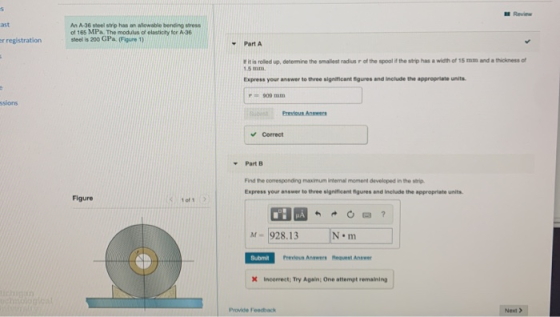

Review ast An A-36 steel strip has an allowable bending stress of 165 MPa. The modulus...
The wood has an allowable normal stress of allow = 15 MPa and an allowable shear...
The wood has an allowable normal stress of allow = 15 MPa and an allowable shear stress of Tallow = 1.29 MPa (Figure 1) Part A Determine the minimum dimension h of the beam's cross section to safely support the load. Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 μΑ ? 25 kN/m h = Value Units Submit Request Answer A 2 m < Return to Assignment Provide Feedback 100 mm
The bar is made from steel and has an allowable stress of Oallow-22.9 ksi Figure 1)...
The bar is made from steel and has an allowable stress of Oallow-22.9 ksi Figure 1) Part A Determine the maximum axial force P that can be applied to the bar Express your answer to three significant figures and include the appropriate units. [2.104 lkip Submit Previous Answers Request Answer Incorrect; Try Again; 3 attempts remaining Figure 1 of 1 > < Return to Assignment Provide Feedback 0.125 in 1.25 in. 1.875 in. , 025 in. 75 in.
Express your answer to three significant figures and include appropriate units The A-36 steel pipe in...
Express your answer to three significant figures and include appropriate units The A-36 steel pipe in (Figure 1) has a 6061-T6 aluminum core. It is subjected to a tensile force of 200 kN. The pipe has an outer diameter of 78 mm and an inner diameter of 68 mm. For A-36 steel Est 200 GPa, and for 6061-T6 aluminum, Eal 68.9 GPa Ơal:1 Value Units SubmitP X Incorrect Try Again; 3 attempts remaining Part B Determine the average normal stress...
n Review The beam is made of material having an allowable tensile and compressive stress of...
n Review The beam is made of material having an allowable tensile and compressive stress of (allow)t = 125 MPa and allow)c = 126 MPa, respectively. (Figure 1) Part A Determine the maximum allowable internal moment Mthat can be applied to the beam. Express your answer to three significant figures and include the appropriate units. Figure (< 1 of 1 > OCH Å Value O O ? Units 300 mm Mmax = 30 mm Submit Request Answer 30 mm 150...
The beam is made of timber that has an allowable bending stress of O allow =...
The beam is made of timber that has an allowable bending stress of O allow = 6.5 MPa and an allowable shear stress of Tallow = 500 kPa. Part A Determine its height if it is to be rectangular and have a height-to-width ratio of 1.22. (Figure 1) Figure < Express your answer with the appropriate units. 1 of 1 ? HA h = Value Units 8 kN/m Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining...
The allowable tensile stress for wires AB and AC is allow = 175 MPa, and wire...
The allowable tensile stress for wires AB and AC is allow = 175 MPa, and wire AB has a diameter of 5.6 mm and AC has a diameter of 6.6 mm. WA Part A Determine the greatest force P that can be applied to the chain. Express your answer to three significant figures and include appropriate units. UA ? Pmax = Value Units Submit Request Answer
The low strength concrete floor slab is integrated with a wide- flange A-36 steel beam using...
The low strength concrete floor slab is integrated with a wide- flange A-36 steel beam using shear studs (not shown) to form the composite beam. (Figure 1) Part A If the allowable bending stress for the concrete is (Gallow)con = 10 MPa and allowable bending stress for steel is allow)st = 165 MPa, determine the maximum allowable internal moment M that can be applied to the beam. Express your answer with the appropriate units. Figure 1 of 1 H HÅ...
CIVL3322 Su18 Homework Set 1 Review Problem 1.3 The allowable normal stress for member BC is...
CIVL3322 Su18 Homework Set 1 Review Problem 1.3 The allowable normal stress for member BC is allow-29 ksi and the allowable shear stress for the pins is Tallow 10 ksi (Figure 1) Part A Determine the required thickness of member BC Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 t- 1 Value Units Submit Request Answer ? Part B 60 Determine the required diameter of the pin at A Express your answer...
An A-36 steel column has a length of 3.7 m and is pinned at both ends....
An A-36 steel column has a length of 3.7 m and is pinned at both ends. Part A Figure < 1 of 1 If the cross sectional area has the dimensions shown, determine the critical load. (Figure 1) Express your answer with the appropriate units. 25 mm μΑ ? 10 mm P Value GE Units 25 mm Submit Request Answer -25 mm -25 mm 10 mm
The 60-mm-diameter shaft is made of 6061-T6 aluminum having an allowable shear stress of Tllow -78...
The 60-mm-diameter shaft is made of 6061-T6 aluminum having an allowable shear stress of Tllow -78 MPa (Figure 1) Part A Determine the maximum allowable torque T Express your answer to three significant figures and include the appropriate units. aue Units Submit Ans incorrect: Try Again: 5 attempts remaining Part B Find the corresponding angle of twist of disk A relative to disk C Express your answer using three significant figures. igure < 1of1 > uest Ans 1.20 m 1.20...
The wood has an allowable normal stress of allow = 15 MPa and an allowable shear stress of Tallow = 1.29 MPa (Figure 1) Part A Determine the minimum dimension h of the beam's cross section to safely support the load. Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 μΑ ? 25 kN/m h = Value Units Submit Request Answer A 2 m < Return to Assignment Provide Feedback 100 mm
The bar is made from steel and has an allowable stress of Oallow-22.9 ksi Figure 1) Part A Determine the maximum axial force P that can be applied to the bar Express your answer to three significant figures and include the appropriate units. [2.104 lkip Submit Previous Answers Request Answer Incorrect; Try Again; 3 attempts remaining Figure 1 of 1 > < Return to Assignment Provide Feedback 0.125 in 1.25 in. 1.875 in. , 025 in. 75 in.
Express your answer to three significant figures and include appropriate units The A-36 steel pipe in (Figure 1) has a 6061-T6 aluminum core. It is subjected to a tensile force of 200 kN. The pipe has an outer diameter of 78 mm and an inner diameter of 68 mm. For A-36 steel Est 200 GPa, and for 6061-T6 aluminum, Eal 68.9 GPa Ơal:1 Value Units SubmitP X Incorrect Try Again; 3 attempts remaining Part B Determine the average normal stress...
n Review The beam is made of material having an allowable tensile and compressive stress of (allow)t = 125 MPa and allow)c = 126 MPa, respectively. (Figure 1) Part A Determine the maximum allowable internal moment Mthat can be applied to the beam. Express your answer to three significant figures and include the appropriate units. Figure (< 1 of 1 > OCH Å Value O O ? Units 300 mm Mmax = 30 mm Submit Request Answer 30 mm 150...
The beam is made of timber that has an allowable bending stress of O allow = 6.5 MPa and an allowable shear stress of Tallow = 500 kPa. Part A Determine its height if it is to be rectangular and have a height-to-width ratio of 1.22. (Figure 1) Figure < Express your answer with the appropriate units. 1 of 1 ? HA h = Value Units 8 kN/m Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts remaining...
The allowable tensile stress for wires AB and AC is allow = 175 MPa, and wire AB has a diameter of 5.6 mm and AC has a diameter of 6.6 mm. WA Part A Determine the greatest force P that can be applied to the chain. Express your answer to three significant figures and include appropriate units. UA ? Pmax = Value Units Submit Request Answer
The low strength concrete floor slab is integrated with a wide- flange A-36 steel beam using shear studs (not shown) to form the composite beam. (Figure 1) Part A If the allowable bending stress for the concrete is (Gallow)con = 10 MPa and allowable bending stress for steel is allow)st = 165 MPa, determine the maximum allowable internal moment M that can be applied to the beam. Express your answer with the appropriate units. Figure 1 of 1 H HÅ...
CIVL3322 Su18 Homework Set 1 Review Problem 1.3 The allowable normal stress for member BC is allow-29 ksi and the allowable shear stress for the pins is Tallow 10 ksi (Figure 1) Part A Determine the required thickness of member BC Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 t- 1 Value Units Submit Request Answer ? Part B 60 Determine the required diameter of the pin at A Express your answer...
An A-36 steel column has a length of 3.7 m and is pinned at both ends. Part A Figure < 1 of 1 If the cross sectional area has the dimensions shown, determine the critical load. (Figure 1) Express your answer with the appropriate units. 25 mm μΑ ? 10 mm P Value GE Units 25 mm Submit Request Answer -25 mm -25 mm 10 mm
The 60-mm-diameter shaft is made of 6061-T6 aluminum having an allowable shear stress of Tllow -78 MPa (Figure 1) Part A Determine the maximum allowable torque T Express your answer to three significant figures and include the appropriate units. aue Units Submit Ans incorrect: Try Again: 5 attempts remaining Part B Find the corresponding angle of twist of disk A relative to disk C Express your answer using three significant figures. igure < 1of1 > uest Ans 1.20 m 1.20...
