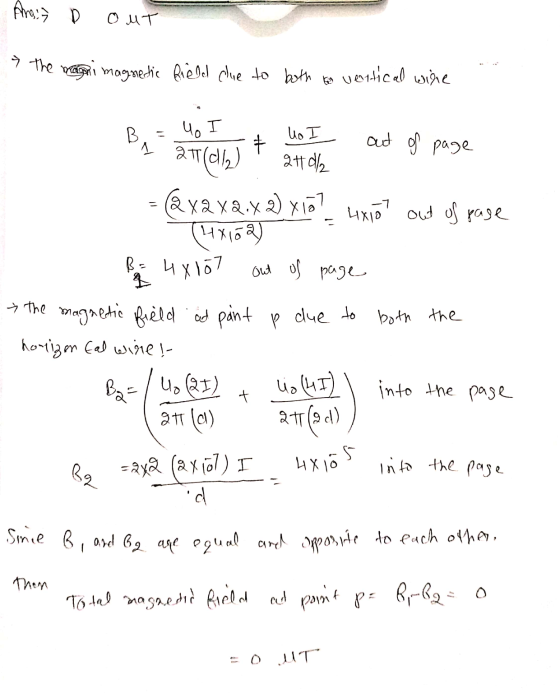

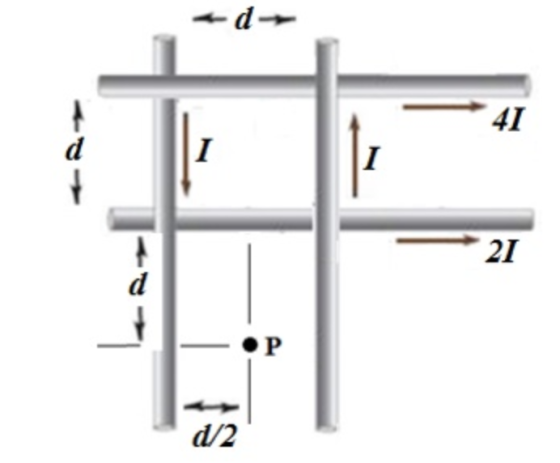

Find the absolute magnitude of the magnetic field at point P produced by the four long wires shown, take I = 2 A and d = 4 cm.
A. 10 μT
B. 20 μT
C. 40 μT
D. 0 μT
E. None of above
