Explain what is an Open Saturation Curve of an Alternator. What is the relationship of the...

Explain what is an Open Saturation Curve of an Alternator. What is the relationship of the field current (Decreasing and increasing field current) on the induced EMF and terminal voltage?

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

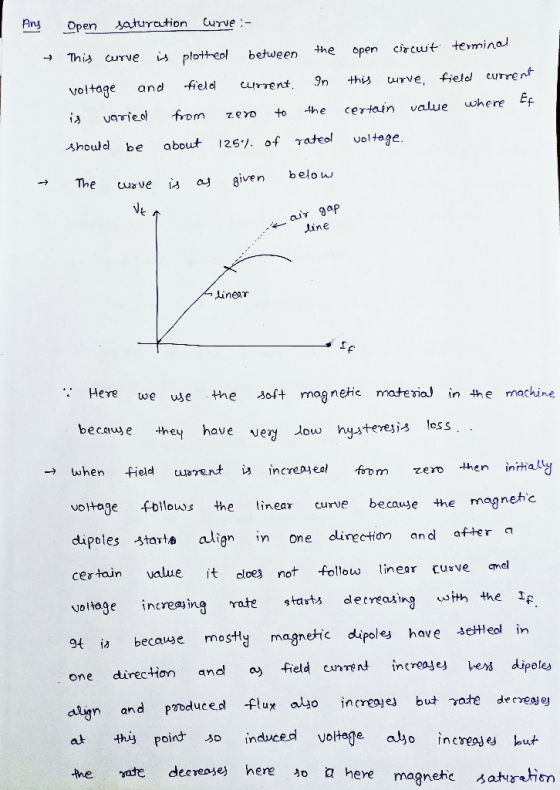

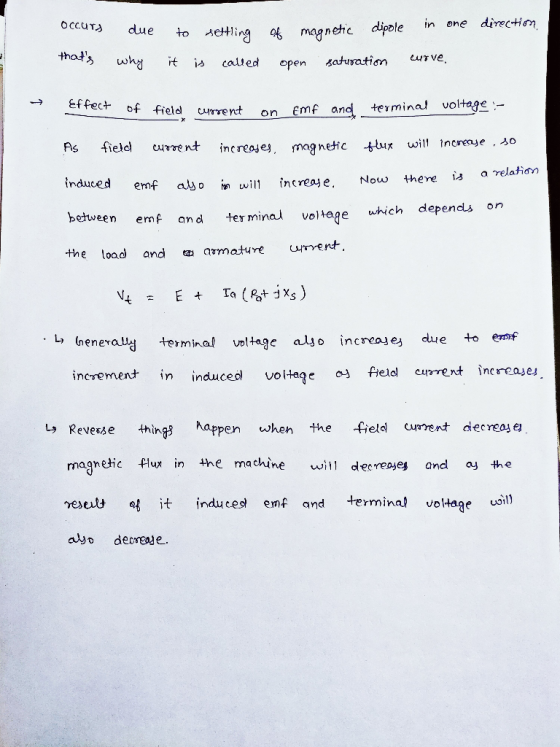

Answer #1

0 0
Add a comment
