For the following problems, please include a sketch and your calculations with your answer. If a...
For the following problems, please include a sketch and your calculations with your answer.

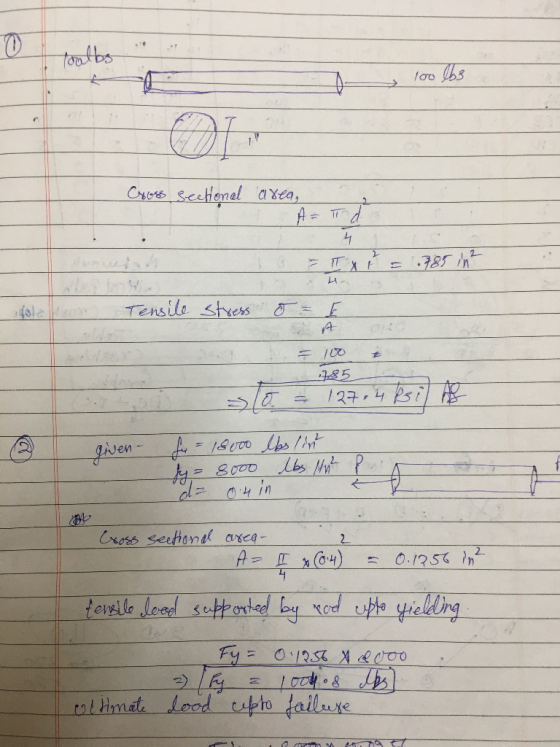

- If a tensile load of 100 pounds is applied to a rod which has a diameter of 1 inch, what is the stress in the rod?
- If the ultimate tensile strength for an aluminum alloy is 18,000 lbs/in2, and the yield strength is 8,000 lbs/in2 what tensile load can be supported by a rod with a diameter of 0.4 inches?

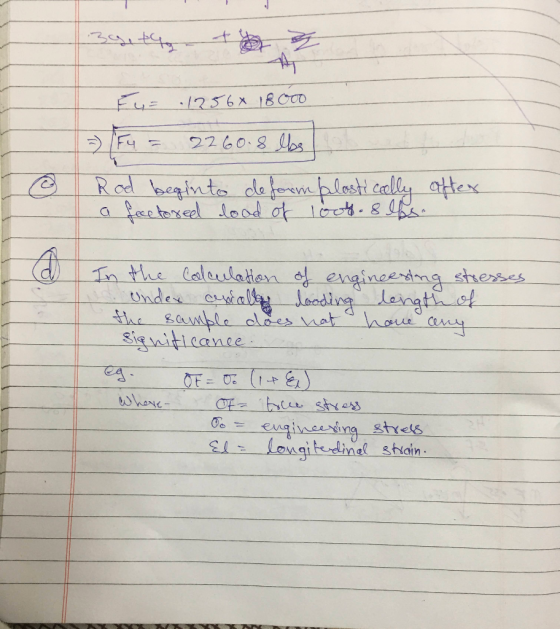

- For the rod in problem 7, at what load does the rod begin to deform plastically?
- For problems 6, 7, and 8, why is the length of the sample not included in the information given? Explain in terms of the definition of stress.
Homework Answers
Add Answer to:
For the following problems,
please include a sketch and your calculations with your
answer.
If a...
Please answer all 7 parts lExaminatio The following information applies to questions 1 to 7 -below....
Please answer all 7 parts
lExaminatio The following information applies to questions 1 to 7 -below. You have a circular aluminum bar: 1 in diameter and 10" long. It is Type 2024-14 aluminum. It has the following properties: Tensile strength of: Yield Strength of: Modulus Of Elasticity of: Density of about: Coefficient of Thermal Expansion of: 12.9x10* in./in./ 68,000 #/square inch 47,000 #/square inch 10,600,000 #/square inch 0.1 lb/cubic inch 1) What are the 5 types of stress that you...
1. State the difference between I and polycrystalline materials. Deformability of BCC and FCC met...
1. State the difference between I and polycrystalline materials. Deformability of BCC and FCC metals. Strength and UTS of metals. 2. Determine the slip systems in BCC and FCC materials. Show the calculations that support your determinations. 3. Find the indices that represent the planes in the following cubic unit cell and show the X-Ray diffract-ability of the these planes in FCC and BCC structures: 4. A tensile specimen with a 12 mm initial diameter and 50 mm gauge length...
Please give a full, detailed, worded explanation. Thank you :))) S. Draw a possible stress strain...
Please give a full, detailed, worded explanation. Thank you :)))
S. Draw a possible stress strain graph for a material with a yield stress of 300 MPa, an elastic modulus of 200 GPa, a UTS of 450 MPa and a ductility of 20%. Calculate the elastic strain at the point where the material starts to plastically deform. 6. A nylon rope with an elastic modulus of 3 GPa is placed under a force of 17.5 kN. The cross-sectional area of...
PLEASE HELP ON STUDY GUIDE FOR MIDTERM! PLEASE SHOW ALL WORK! 2. Two circular rods are...
PLEASE HELP ON STUDY GUIDE FOR MIDTERM!
PLEASE SHOW ALL WORK!
2. Two circular rods are loaded in tension along their longitudinal axis. Both rods have a diameter of 20 mm and a length of 150 mm. One bar is made of aluminum and the other is hot pressed silicon nitride (SigN). Both have an applied tensile load of 80 kN. Assume that both materials behave elastically under this loading condition (the aluminum does not plastically deform and the silicon...
Need ASAP, Show all steps. Thanks. Supplemental Problems 10.16 A 12-in.-diameter structural nickel steel specimen was...
Need ASAP, Show all steps. Thanks.
Supplemental Problems 10.16 A 12-in.-diameter structural nickel steel specimen was subjected to a tension test. After rupture it was determined that the 2-in. standard-gage length had stretched to 2.42 in. The minimum diameter at the fracture was measured to be 0.422 in. Compute the percent elongation and percent reduction in area. 10.20 During a tensile test of a steel specimen, the strain at a stress of 35 MPa was calculated to be 0.000 170...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and wall thickness as 0.4 inch and 0.05 inch, respectively. The Young's modulus and Poisson's ratio for aluminum are E= 10 x 10°psi, v=0.33, respectively. The applied load P is 60 Ib. Please answer = 60° B Ra all Cled URb The internal force for member AC is: -30 lb 34.6 lb 30 lb -34.6 lb Question 2 1 points Save Answer 1. The following...
could you please answer all these parts? 2) One scenario that has been examined in the...
could you please answer all these parts?
2) One scenario that has been examined in the failure investigation of the Space Shuttle Columbia is the impact of a chunk of polyamide foam of mass of 1.211 kg, of dimensions of 0.508 m wide x 0.406 m long x 0.152 m tall, traveling at 457.3 m/s with a thermal heat-shielding tile, essentially composed of silica (SiO) A) (4 pts.) Calculate the kinetic energy with which the polyamide foam hit the silica...
Find the normal U a. b. Find the maximum shear stress and plltip c. Find the...
Find the normal U a. b. Find the maximum shear stress and plltip c. Find the safety factor using the distortion-energy (Von MiSe Problem 2 [20]: A simply supported shaft with overhanging load is shown in Figure 2 force P is applied as the shaft rotates. The shaft is also subject to a constant torque of T ignoring Tmin, find the diameter of shaft required to obtain a safety factor o shaft is steel of Sut - 118 kpsi and...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240 MPa is to be subjected to a load of 6660 N. If the length of the rod is 380 mm, what must the diameter be to allow an elongation of 0.50 mm? A cylindrical specimen of some alloy 8 mm in diameter is stressed elastically in tension. A force of 15,700 N produces a reduction in the specimen diameter of 5 10-3 mm. Compute...
Please show solution for O step by step, use data and ansers for N as given (O)For the bolt of question (N) above, what is the required tightening torque? Answer Box: Torque 141 lb-in Total Clam...
Please show solution for O step by step, use data and ansers
for N as given
(O)For the bolt of question (N) above, what is the required tightening torque? Answer Box: Torque 141 lb-in Total Clamping Force: F,-| 12,000 |lb Number of Bolts: N- Percentage of Proof Strength: PP- 75% SAE Grade 5 Steel Bolt Material Proof Strength of Bolt material: σ a 85,000 psi Lubrication Constant: K 0.15 Results Formula P FrIN Load on each Screw. P- 3000 b...
Please answer all 7 parts
lExaminatio The following information applies to questions 1 to 7 -below. You have a circular aluminum bar: 1 in diameter and 10" long. It is Type 2024-14 aluminum. It has the following properties: Tensile strength of: Yield Strength of: Modulus Of Elasticity of: Density of about: Coefficient of Thermal Expansion of: 12.9x10* in./in./ 68,000 #/square inch 47,000 #/square inch 10,600,000 #/square inch 0.1 lb/cubic inch 1) What are the 5 types of stress that you...
1. State the difference between I and polycrystalline materials. Deformability of BCC and FCC metals. Strength and UTS of metals. 2. Determine the slip systems in BCC and FCC materials. Show the calculations that support your determinations. 3. Find the indices that represent the planes in the following cubic unit cell and show the X-Ray diffract-ability of the these planes in FCC and BCC structures: 4. A tensile specimen with a 12 mm initial diameter and 50 mm gauge length...
Please give a full, detailed, worded explanation. Thank you :)))
S. Draw a possible stress strain graph for a material with a yield stress of 300 MPa, an elastic modulus of 200 GPa, a UTS of 450 MPa and a ductility of 20%. Calculate the elastic strain at the point where the material starts to plastically deform. 6. A nylon rope with an elastic modulus of 3 GPa is placed under a force of 17.5 kN. The cross-sectional area of...
PLEASE HELP ON STUDY GUIDE FOR MIDTERM!
PLEASE SHOW ALL WORK!
2. Two circular rods are loaded in tension along their longitudinal axis. Both rods have a diameter of 20 mm and a length of 150 mm. One bar is made of aluminum and the other is hot pressed silicon nitride (SigN). Both have an applied tensile load of 80 kN. Assume that both materials behave elastically under this loading condition (the aluminum does not plastically deform and the silicon...
Need ASAP, Show all steps. Thanks.
Supplemental Problems 10.16 A 12-in.-diameter structural nickel steel specimen was subjected to a tension test. After rupture it was determined that the 2-in. standard-gage length had stretched to 2.42 in. The minimum diameter at the fracture was measured to be 0.422 in. Compute the percent elongation and percent reduction in area. 10.20 During a tensile test of a steel specimen, the strain at a stress of 35 MPa was calculated to be 0.000 170...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and wall thickness as 0.4 inch and 0.05 inch, respectively. The Young's modulus and Poisson's ratio for aluminum are E= 10 x 10°psi, v=0.33, respectively. The applied load P is 60 Ib. Please answer = 60° B Ra all Cled URb The internal force for member AC is: -30 lb 34.6 lb 30 lb -34.6 lb Question 2 1 points Save Answer 1. The following...
could you please answer all these parts?
2) One scenario that has been examined in the failure investigation of the Space Shuttle Columbia is the impact of a chunk of polyamide foam of mass of 1.211 kg, of dimensions of 0.508 m wide x 0.406 m long x 0.152 m tall, traveling at 457.3 m/s with a thermal heat-shielding tile, essentially composed of silica (SiO) A) (4 pts.) Calculate the kinetic energy with which the polyamide foam hit the silica...
Find the normal U a. b. Find the maximum shear stress and plltip c. Find the safety factor using the distortion-energy (Von MiSe Problem 2 [20]: A simply supported shaft with overhanging load is shown in Figure 2 force P is applied as the shaft rotates. The shaft is also subject to a constant torque of T ignoring Tmin, find the diameter of shaft required to obtain a safety factor o shaft is steel of Sut - 118 kpsi and...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240 MPa is to be subjected to a load of 6660 N. If the length of the rod is 380 mm, what must the diameter be to allow an elongation of 0.50 mm? A cylindrical specimen of some alloy 8 mm in diameter is stressed elastically in tension. A force of 15,700 N produces a reduction in the specimen diameter of 5 10-3 mm. Compute...
Please show solution for O step by step, use data and ansers
for N as given
(O)For the bolt of question (N) above, what is the required tightening torque? Answer Box: Torque 141 lb-in Total Clamping Force: F,-| 12,000 |lb Number of Bolts: N- Percentage of Proof Strength: PP- 75% SAE Grade 5 Steel Bolt Material Proof Strength of Bolt material: σ a 85,000 psi Lubrication Constant: K 0.15 Results Formula P FrIN Load on each Screw. P- 3000 b...
