A 1.05 µF capacitor is connected in series with a 2.02 µF capacitor. The 1.05 µF...
A 1.05 µF capacitor is connected in series with a 2.02 µF capacitor. The 1.05 µF capacitor carries a charge of +10.5 µC on one plate, which is at a potential of 53.5 V.
(a) Find the potential on the negative plate of the 1.05 µF
capacitor. (use 3 sig figs)
(b) Find the equivalent capacitance of the two capacitors. (use 3
sig figs)

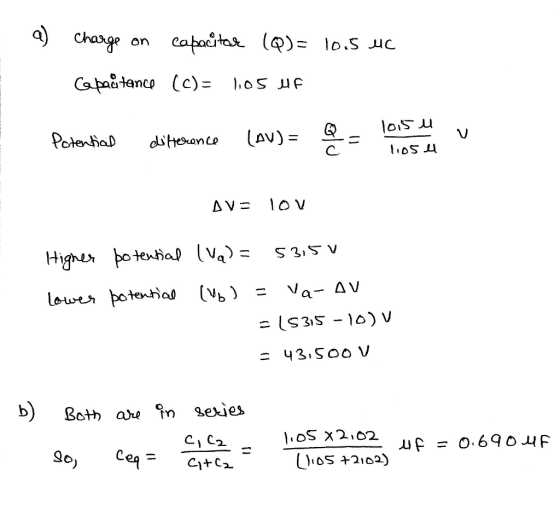

Homework Answers
Add Answer to:
A 1.05 µF capacitor is connected in series with a 2.02 µF
capacitor. The 1.05 µF...
