THE REVERSE BIAS VOLTAGE APPLIED TO SILICON PN JUNCTION DIODE IS 4V, DOPING CONCENTRATION Na is...

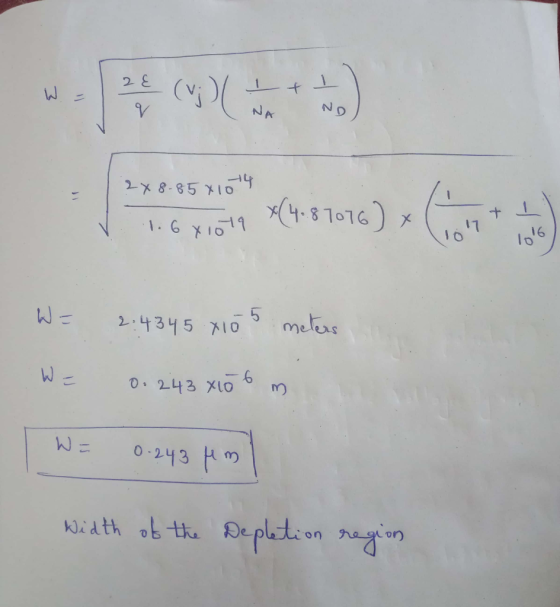

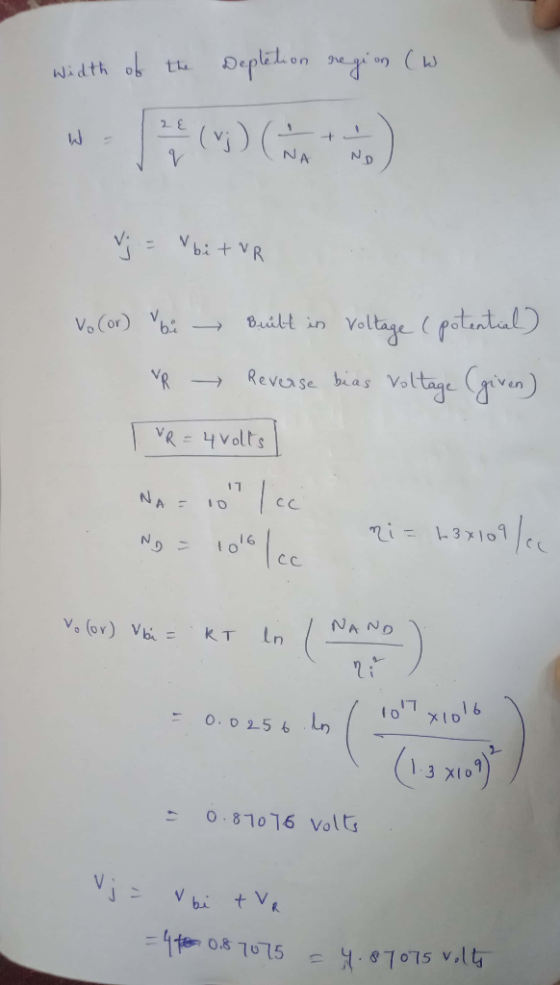

THE REVERSE BIAS VOLTAGE APPLIED TO SILICON PN JUNCTION DIODE IS 4V, DOPING CONCENTRATION Na is 10^17 cm^-3, Nd = 10^16 cm^-3, ni = 1.3 x 10^9 cm^-3, temperature T = 273 k find the width of depletion region with the applied reverse voltage
please check your answer that it is correct please it is a humble request
Homework Answers
Add Answer to:
THE REVERSE BIAS VOLTAGE APPLIED TO SILICON PN JUNCTION DIODE IS
4V, DOPING CONCENTRATION Na is...
A silicon PN junction diode is constructed using N-type silicon in which the Fermi level is...
A silicon PN junction diode is constructed using N-type silicon in which the Fermi level is 100 meV below the conduction band edge and P-type silicon in which the Fermi level is 120 meV above the valence band edge a) What are the majority and minority carrier concentrations on each side of the junction under thermal equilibrium? b) What is the value of the built-in voltage? c) Determine the width of the depletion region on both sides of the junction...
2. (60 pts) Consider a one-sided silicon PN diode. The p-side is degenerately doped (and you...
2. (60 pts) Consider a one-sided silicon PN diode. The p-side is degenerately doped (and you can assume Ep = Ey for simplicity). The doping concentration on the n-side is Np for 0<x <too. The depletion width on the n-side is xn. Use the depletion approximation. p* ND x 0 From here, you assume that Np is given by 4x1015 cm. (h) (7 pts) What is the maximum electric field in depletion region when Va=-3 V? (i) (8 pts) As...
2. Suppose you have a silicon wafer containing a p n junction. Design the doping level on the n-side so that the rev...
2. Suppose you have a silicon wafer containing a p n junction. Design the doping level on the n-side so that the reverse breakdown voltage is 45 V. and the depletion widths (on the n-side and on the p-side) 3. Calculate the built-in voltage 19 in a silicon pn Junction with Na = 5x101 /cc and Nd = 1 x 10 /cc given that the junction is reverse biased at 5 V. /mi
2. Suppose you have a silicon wafer...
Consider a silicon pn step junction diode with NA-1x1018 cm3 and No 1x1017cm-3, maintained at T...
Consider a silicon pn step junction diode with NA-1x1018 cm3 and No 1x1017cm-3, maintained at T 300K. The minority carrier lifetimes in the p-side and n-side are τη-10-8 s and Tp-10-7 s, respectively. a) Calculate the minority carrier densities at the edges of the depletion region when the applied voltage (VA) is 0.6 V. of the junction, for the applied bias voltage of part (a) densities are equal in magnitude, for the applied voltage of part (a). b) Sketch the...
A Si PN junction diode has constant doping at both sides, Na and Nd in P...
A Si PN junction diode has constant doping at both sides, Na and Nd in P and N side, respectively. The width of the P side is W and the width of the N side is L: W << Le and L >> Lh. Le and Lh are the minority carrier diffusion length in each side. The lifetime of both minority carriers is τ. Assume the contacts at both ends of the PN junction are Omic contact. The PN junction...
Q1) A diode has a doping of No- 1019 /cm3 on the n-type side and NA 101/cm3 on the p-type side. W...
Q1) A diode has a doping of No- 1019 /cm3 on the n-type side and NA 101/cm3 on the p-type side. What are the a) width of depletion region, b) width of depletion region in n side, c) width of depletion region in p side, d) junction potential at zero bias, e) junction width at a reverse bias of 13 V, and f) maximum electric field in zero bias just in the middle of the P-N junction at room temperature?...
3.13 Si pn junction Consider a long pn junction diode with an acceptor doping Naof 1018...
3.13 Si pn junction Consider a long pn junction diode with an acceptor doping Naof 1018 cm-3 on the p-side and donor concentration of Nj on the n-side. The diode is forward biased and has a voltage of 0.6 V across it. The diode cross-sectional area is 1 mm2. The minority carrier recombination time, T, depends on the total dopant concentration, Ndopant (cm), through the following approximate empirical relation (5x 10-7)/(1 + 2 10-17N1°pan.) where T is in seconds. (a)...
consider a silicon pn junction diode at 300 K with nd= na = 10^16 cm-3, u_n 1350 cm^2/v-s, u_p 480 cm^2/v-s, and t_no = t_po= 5×10^-7 s. consider two bias conditions: i) a reverse bias of 1.0 v ii) a...
consider a silicon pn junction diode at 300 K with nd= na = 10^16 cm-3, u_n 1350 cm^2/v-s, u_p 480 cm^2/v-s, and t_no = t_po= 5×10^-7 s. consider two bias conditions: i) a reverse bias of 1.0 v ii) a forward bias of 0.2 v a) for each bus condition, roughly sketch the band gap diagram - accurately label the energy gap in eV - indicate the difference between E_f on the two sides id the junction and label its...
3.13 Si pn junction Consider a long pn junction diode with an acceptor doping Naof 1018 cm-3 on t...
3.13 Si pn junction Consider a long pn junction diode with an acceptor doping Naof 1018 cm-3 on the p-side and donor concentration of Nj on the n-side. The diode is forward biased and has a voltage of 0.6 V across it. The diode cross-sectional area is 1 mm2. The minority carrier recombination time, T, depends on the total dopant concentration, Ndopant (cm), through the following approximate empirical relation (5x 10-7)/(1 + 2 10-17N1°pan.) where T is in seconds. (a)...
4. 16 points: For a pn diode, assume the donor concentration is Na, the acceptor concentration is...

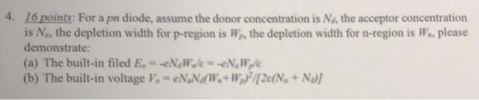

4. 16 points: For a pn diode, assume the donor concentration is Na, the acceptor concentration is Na, the depletion width for p-region is W the depletion width for n-region is Wa, please demonstrate: (a) The built-in filed E.--eNew./с -eNang.k (b) The built-in voltage Vo-eN N(W+Wfe(Na+No
4. 16 points: For a pn diode, assume the donor concentration is Na, the acceptor concentration is Na, the depletion width for p-region is W the depletion width for n-region is Wa, please demonstrate:...
A silicon PN junction diode is constructed using N-type silicon in which the Fermi level is 100 meV below the conduction band edge and P-type silicon in which the Fermi level is 120 meV above the valence band edge a) What are the majority and minority carrier concentrations on each side of the junction under thermal equilibrium? b) What is the value of the built-in voltage? c) Determine the width of the depletion region on both sides of the junction...
2. (60 pts) Consider a one-sided silicon PN diode. The p-side is degenerately doped (and you can assume Ep = Ey for simplicity). The doping concentration on the n-side is Np for 0<x <too. The depletion width on the n-side is xn. Use the depletion approximation. p* ND x 0 From here, you assume that Np is given by 4x1015 cm. (h) (7 pts) What is the maximum electric field in depletion region when Va=-3 V? (i) (8 pts) As...
2. Suppose you have a silicon wafer containing a p n junction. Design the doping level on the n-side so that the reverse breakdown voltage is 45 V. and the depletion widths (on the n-side and on the p-side) 3. Calculate the built-in voltage 19 in a silicon pn Junction with Na = 5x101 /cc and Nd = 1 x 10 /cc given that the junction is reverse biased at 5 V. /mi
2. Suppose you have a silicon wafer...
Consider a silicon pn step junction diode with NA-1x1018 cm3 and No 1x1017cm-3, maintained at T 300K. The minority carrier lifetimes in the p-side and n-side are τη-10-8 s and Tp-10-7 s, respectively. a) Calculate the minority carrier densities at the edges of the depletion region when the applied voltage (VA) is 0.6 V. of the junction, for the applied bias voltage of part (a) densities are equal in magnitude, for the applied voltage of part (a). b) Sketch the...
Q1) A diode has a doping of No- 1019 /cm3 on the n-type side and NA 101/cm3 on the p-type side. What are the a) width of depletion region, b) width of depletion region in n side, c) width of depletion region in p side, d) junction potential at zero bias, e) junction width at a reverse bias of 13 V, and f) maximum electric field in zero bias just in the middle of the P-N junction at room temperature?...
3.13 Si pn junction Consider a long pn junction diode with an acceptor doping Naof 1018 cm-3 on the p-side and donor concentration of Nj on the n-side. The diode is forward biased and has a voltage of 0.6 V across it. The diode cross-sectional area is 1 mm2. The minority carrier recombination time, T, depends on the total dopant concentration, Ndopant (cm), through the following approximate empirical relation (5x 10-7)/(1 + 2 10-17N1°pan.) where T is in seconds. (a)...
3.13 Si pn junction Consider a long pn junction diode with an acceptor doping Naof 1018 cm-3 on the p-side and donor concentration of Nj on the n-side. The diode is forward biased and has a voltage of 0.6 V across it. The diode cross-sectional area is 1 mm2. The minority carrier recombination time, T, depends on the total dopant concentration, Ndopant (cm), through the following approximate empirical relation (5x 10-7)/(1 + 2 10-17N1°pan.) where T is in seconds. (a)...
4. 16 points: For a pn diode, assume the donor concentration is Na, the acceptor concentration is Na, the depletion width for p-region is W the depletion width for n-region is Wa, please demonstrate: (a) The built-in filed E.--eNew./с -eNang.k (b) The built-in voltage Vo-eN N(W+Wfe(Na+No
4. 16 points: For a pn diode, assume the donor concentration is Na, the acceptor concentration is Na, the depletion width for p-region is W the depletion width for n-region is Wa, please demonstrate:...
