A generating station is producing 1.4 x 10^6 W of power that is to be sent...

A generating station is producing 1.4 x 10^6 W of power that is to be sent to a small town located 6.5 km away. Each of the two wires that comprise the transmission line has a resistance per length of 3.2 x 10^-2/km. (a) Find the power lost in heating the wires if the power is transmitted at 1700 V. (b) A 100:1 step-up transformer is used to raise the voltage before the power is transmitted. How much power is now lost in heating the wires?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

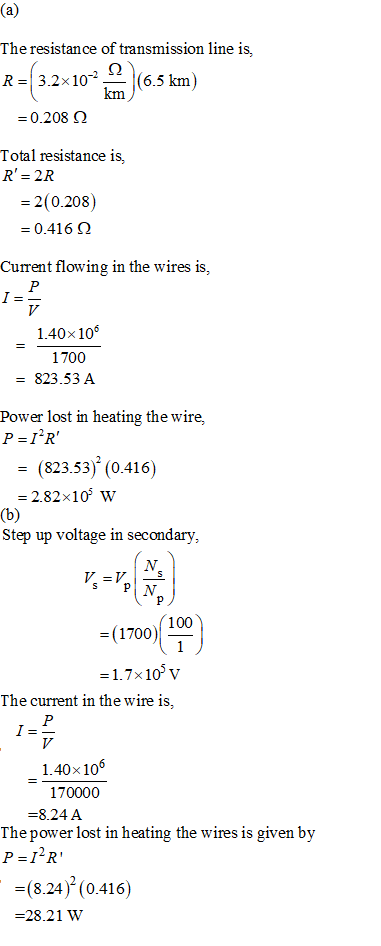

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A generating station is producing 1.4 x 10^6 W of power that is to be sent...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A generating station is producing 1.8 x 106 W of power that is to be sent...

    A generating station is producing 1.8 x 106 W of power that is to be sent to a small town located 5.3 km away. Each of the two wires that comprise the transmission line has a resistance per length of 4.4 x 10-2/km. (a) Find the power lost in heating the wires if the power is transmitted at 1800 V. (b) A 100:1 step-up transformer is used to raise the voltage before the power is transmitted. How much power is...

  • An electric power station is producing 210 kW of power that is to be sent to...

    An electric power station is producing 210 kW of power that is to be sent to a small town located 34.0 km away. Each of the two wires that comprise the transmission line has a resistance per kilometer of length of 0.40 Ω/km. Find the power lost in heating the wires if the voltage is stepped up from 1.20 kV to 30.0 kV using an ideal transformer. ANS IS NOT 0.6664 kW Ans in kW

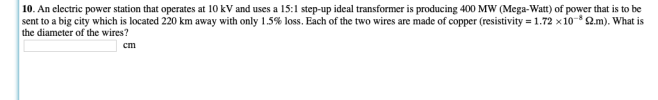

  • 10. An electric power station that operates at 10 kV and uses a 15:1 step-up ideal...

    10. An electric power station that operates at 10 kV and uses a 15:1 step-up ideal transformer is producing 400 MW (Mega-Watt) of power that is to be sent to a big city which is located 220 km away with only 1.5% loss. Each of the two wires are made of copper (resistivity = 1.72 x 10- 2.m). What is the diameter of the wires? cm

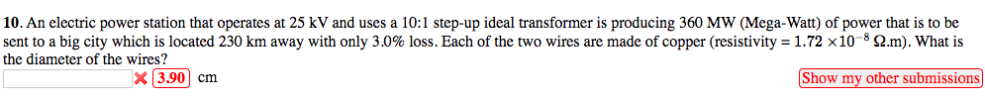

  • 10. An electric power station that operates at 25 kV and uses a 10:1 step-up ideal...
