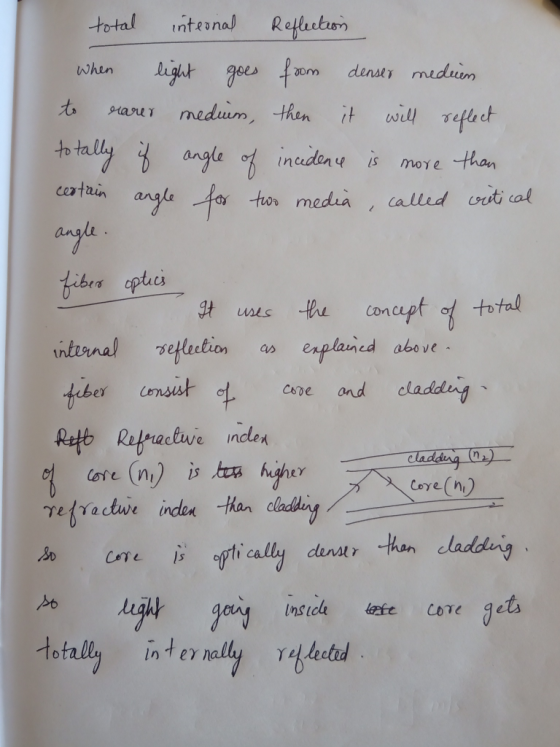

briefly explain the relationship between total reflection and fiber optic

Question

Question

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

A fiber optic cable is submerged underwater. What is the critical angle of total internal reflection...

A fiber optic cable is submerged underwater. What is the critical angle of total internal reflection if the index of refraction of the cable and water is n cable=2.15 and n water=1.33? options in degrees: 15.12, 42.79, 38.21, 61.33
For a waveguide (like a fiber), the light is guided by total internal reflection. But in...

For a waveguide (like a fiber), the light is guided by total internal reflection. But in the experiment, we observed the portion of the fiber near the laser injection side is glowing. Explain why. Following question (4), then further along the fiber, no glowing light came out from the fiber, but the laser did come out from the end of the fiber (from the reading of the power meter). Explain why.
Question 1 Select the correct statement(s) regarding fiber optic cable. a. The core and cladding within...

Question 1 Select the correct statement(s) regarding fiber optic cable. a. The core and cladding within a fiber optic cable must have the same refractive index in order to achieve TIR (Total Internal Reflection) b. Only single mode fiber (SMF) can be constructed with either a “step” or “graded index” core c. Mulimode optical fibers (MMF) are vulnerable to modal dispersion d. All statements are correct Question 2 Using a direct sequence spread spectrum (DSSS) technique spreads a narrow band channel...

Distances between flaws in fiber-optic cable follow an exponential distribution with a mean of 30 meters....

Distances between flaws in fiber-optic cable follow an exponential distribution with a mean of 30 meters. For a specific cable installation, you need to know the probability that the next flaw will occur between 20 and 40 meters from the current location.
A fiber opticoable10ypoint 1.88) ?s sub- A fiber optic cable (7n fiber 188 is sub- merged...

A fiber opticoable10ypoint 1.88) ?s sub- A fiber optic cable (7n fiber 188 is sub- merged in water (nwater 1.31) What is the critical angle for light to stay inside the cable? Answer in units of
Find the critical angle (?critical) at which total internal reflection will occur for the optical fiber...

Find the critical angle (?critical) at which total internal reflection will occur for the optical fiber in the image. The fiber core has a refractive index (?1) of 1.55 and the cladding has a refractive index (?2) of 1.51.

How does fiber optic cabling protect your infrastructure?

How does fiber optic cabling protect your infrastructure?
Data is carried by pulses of light through long, transparent fibers—fiber optic cables. Long lengths of...

Data is carried by pulses of light through long, transparent fibers—fiber optic cables. Long lengths of fiber carry signals 100 km between amplifier stations. How long does it take a signal to travel this distance if the index of refraction of the fiber is 1.45?
Problem 90. A) Does an optical fiber need a cladding for total internal reflection to occur?...

Problem 90. A) Does an optical fiber need a cladding for total internal reflection to occur? Justify your answer. B) Why do optical fibers have claddings? Problem 91. A) Estimate the width (duration of narrowest pulses that could be made with a laser source that outputs light over a frequency range from 5.0001 x 1014 Hz to 5.0002 x 1014 Hz. B) Consider an optical fiber of length 300 m. If a power of 4 mW is coupled into the...
