Question

A new double circuit 275kV single Rubus conductor transmission system is required to transfer energy from...

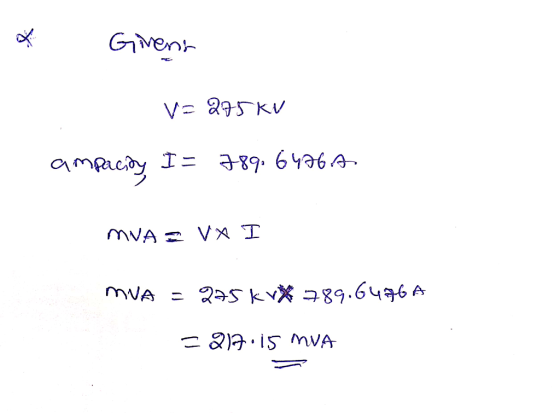

A new double circuit 275kV single Rubus conductor transmission system is required to transfer energy from Manchester to London. Assuming that the ampacity of the overhead line is 789.6476A, calculate the overhead line rating (MVA).

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
A new double circuit 275kV single Rubus conductor transmission system is required to transfer energy from...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • note that 1) single phase system 2) base values at transmission line circuit A 100 MVA,...

    note that 1) single phase system 2) base values at transmission line circuit A 100 MVA, 12 kV Single-phase generator has a sub transient reactance of 20%. The generator supplies a two synchronous motors over 25-km transmission line having transformers at both ends. The motors, all rated 6.0 kV, 66 MVA and 50 MVA for Mi and M2, respectively. For both motors X" = 15%. The single phase transformer T is rated 150 MVA, 132/12 kV with leakage reactance of...

  • Problem #1 Part I (50 points) Consider the following one-line diagram of a three-phase power system. Assume that the system has the following base quantities: S3 100 MVA, and VbaselL 38 kV at the...

    Problem #1 Part I (50 points) Consider the following one-line diagram of a three-phase power system. Assume that the system has the following base quantities: S3 100 MVA, and VbaselL 38 kV at the generator side. The rated line-to-line terminal voltage of the generator (BUS 1) is 38 kV. A single-circuit three-phase transposed overhead line composed by one ACSR Partridge conductor per phase with vertical configuration. The transmission line length is 50 km and the distance between phases a-b, b-c...

  • power system A single-circuit 60-Hz high voltage power transmission line is 370 km (230 mi) long....

    power system A single-circuit 60-Hz high voltage power transmission line is 370 km (230 mi) long. The conductors are Rook with flat horizontal configuration and 7.25 ms=(23.8 ft.) conductor spacing. The load on the line is 125 MW at 100% power factor. Use attached Tables A3 to A3to determine; The sending end voltage Vs The sending end current Is The sending end power Ps The percentage voltage regulation The transmission efficiency Given that Ds for the Rook conductor is 0.0327...

  • Problem #1: A single-circuit, 500 kV, 60 Hz, three-phase transmission line is 250 km long. The...

    Problem #1: A single-circuit, 500 kV, 60 Hz, three-phase transmission line is 250 km long. The characteristic parameters of the transmission line are: x0.4 0/km At full load, the line delivers 1000 MVA at 500 kV with 0.80 PF lagging y j4 x 10 S/km r0.045 /km a. Assume that identical shunt reactors (inductors) are connected from each phase conductor to neutral at both ends of the line during light-load conditions, providing 50% total shunt compensation. The reactors are removed...

  • A single-circuit, 50-Hz, 3-phase transmission line is 150 km long. The line is connected to supply...

    A single-circuit, 50-Hz, 3-phase transmission line is 150 km long. The line is connected to supply a load of 30 MVA at 0.85 pf lag and 138 kV. The line constants are : R = 0.186 ohm/km, L = 2.60 mH/km, and C = 0.012 μF/km. Using nominal π representation calculate : (a) the ABCD constants of the line. (b) the sending end voltage when supplying (i) no load, and (ii) the above load at the receiving end at the...

  • Figure 1 Single line diagram b2 b3 b1 b4 grid Τι 13 A power system single line diagram is shown...

    Figure 1 Single line diagram b2 b3 b1 b4 grid Τι 13 A power system single line diagram is shown in Figure 1. The single line diagram shows a synchronous generator G connected to a large 50 Hz grid via its unit transformer T and a network of three transmission lines. Relevant details of the grid, transformer, generator and overhead lines are provided in Tables I,II,II & IV respectively. A double line to ground fault occurs at bus 3 Questions....

  • THESE QUESTIONS ARE FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS DESIGNING OF OVER...

    THESE QUESTIONS ARE FROM THE SUBJECT POWER SYSTEM FUNDAMENTALS AND THE CHAPTER IS DESIGNING OF OVER HEAD TRANSMISSION LINES KINDLY DO ALL QUESTIONS TOMMOROW IS MY FINAL PLEASE DO YOUR BEST 4. A 20 km single phase line has two parallel conductors separated by 1·5 metres. The diameter of each conductor is 0·823 cm. If the conductor has a resistance of 0·311 Ω/km, find the loop impedance of this line at 50 Hz. [19·86 Ω ] 5. The three conductors...

  • Use power base of 100MVA to change to per unit Consider the transmission system in figure...

    Use power base of 100MVA to change to per unit Consider the transmission system in figure 1 below Gen 1 Тx 2 Line 1 Gen 2 Tx3 Line 4 Line 3 R F Tx 1 Gen 3 Line 2 Figure 1 Impedance and winding details are:- Generators: Gen 1 132kV, Z=0+j12.5% on 25MVA Gen 2 132kV, Z= 0+j12.5% on 25 MVA 20KV, Z 0+j10% on 25 MVA A- connected windings Gen 3 Transformers Earthed Y windings (both sides) Earthed Y...

  • The six-bus system shown in Figure 1 will be simulated using MATLAB. Transmission line data and b...

    The six-bus system shown in Figure 1 will be simulated using MATLAB. Transmission line data and bus data are given in Tables 1 and 2 respectively. The transmission line data are calculated on 100 MVA base and 230 (line-to-line) kV base for generator. Tasks: 1. Determine the network admittance matrix Y 2. Find the load flow solution using Gauss-Seidel/Newton Raphson method until first iteration by manual calculation. Use Maltab software to solve power flow problem using Gauss-Seidel method. Find the...

  • Question3 3000 kVA / 0.09 p.u. Alternators 2 40004VA 0.12 p.u 6kV Busbars 4000 LVA 0.05 p.. Transmission Lines Lin...

    Question3 3000 kVA / 0.09 p.u. Alternators 2 40004VA 0.12 p.u 6kV Busbars 4000 LVA 0.05 p.. Transmission Lines Lines 4000 kV 0.05 p.ย. Step-Up Transformers 5000 kVA 5000 kVA 0.06 р.u. 0.06 p.u. 11 kV Basbars -150 kVA 0.05 pu. Secondary feeder line Step-Down 1500 kVA 0.03 p.u 415 V Busbars Fault Point Figure Q3 Figure Q3 shows a power system comprising two three phase alternators supplying 6 kV busbars. I wo paralilel transmission lines fed from these busbars...
