In this experiment, we didn’t use the parity bit. If we select EVEN parity, determine how...

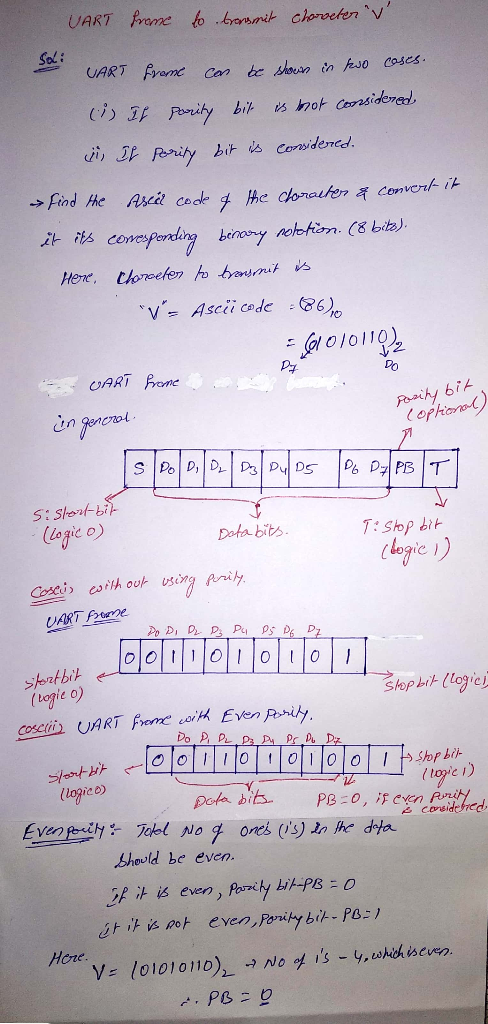

In this experiment, we didn’t use the parity bit. If we select EVEN parity, determine how the UART frame will look like for the character ‘V’. Explain how you obtain the parity bit and draw one complete UART frame. .
Homework Answers
Add Answer to:
In this experiment, we didn’t use the parity bit. If we select
EVEN parity, determine how...
If we choose ODD parity, determine how the UART frame will look like for the character...
If we choose ODD parity, determine how the UART frame will look like for the character ‘W’. Explain how you obtain the parity bit and draw one complete UART frame.
Extra problem: Use the attached sheet to draw a 8- bit odd parity generator and a...
Extra problem: Use the attached sheet to draw a 8- bit odd parity generator and a odd-parity checker for the 8 data bits and odd parity bit. Let the Error output be active-low (so that it goes low if there is an error and is high if there is no error) Parity Error-Detection System Using 74280s, design a complete parity generator/checking system. It is to be used in an 8-bit, even-parity computer configuration. Solution: Parity generator: Because the 74280 has...
Please include waveform Experiment #1 Design and create simulation waveform for an 8-bit even parity checker using V...
Please include waveform
Experiment #1 Design and create simulation waveform for an 8-bit even parity checker using Verilog. The system will accept 8-bit data and outputs a one if there are even numbers of ones, otherwise outputs zero. (hint: xor is helpful) Exnerimont #2
Experiment #1 Design and create simulation waveform for an 8-bit even parity checker using Verilog. The system will accept 8-bit data and outputs a one if there are even numbers of ones, otherwise outputs zero. (hint:...
If the adresse is 16 bit length how many addresses we have Select one: a. 64K...
If the adresse is 16 bit length how many addresses we have Select one: a. 64K b. 16 M c. 1024 1024 d. 16
Since your desk is close to the office supplies closet, it didn’t take long for you...
Since your desk is close to the office supplies closet, it didn’t take long for you to notice that one of your colleagues, Jeffery, visits the office supplies quite frequently. You don’t have any solid evidence that he’s stealing, but you can’t figure out why else he’d be making daily trips into the closet. So you decide to confront Jeffery and he says, "Of course I’m taking office supplies home. And yes, I know that technically it’s stealing, but don’t...
computer architecture The sum of the two 32 bit integers may not be representable in 32 bits. In this case, we say that an overflow has occurred. Write MIPS instructions that adds two numbers stor...
computer architecture
The sum of the two 32 bit integers may not be representable in 32 bits. In this case, we say that an overflow has occurred. Write MIPS instructions that adds two numbers stored in registers Ss1 and Ss2, stores the sum in register $s3, and sets register Sto to 1 if an overflow occurs and to 0 otherwise. 5. (16pts) 6. Show the IEEE 754 binary representation of the number -7.425 in a single and double 7. If...
1. (10 points) We want to compare the numbers 3 and -6. Using 4-bit signed 2's complement numbers, show how we can use the process of binary addition to calculate a result that will tell us how t...
1. (10 points) We want to compare the numbers 3 and -6. Using 4-bit signed 2's complement numbers, show how we can use the process of binary addition to calculate a result that will tell us how these two numbers compare. (Just show the calculation here. The next part will be the interpretation of the result.) Now briefly explain how this result can be interpreted by a hardware circuit to indicate how the two numbers compare. (You don't need to...
In the photoelectric effect experiment we use a Hg lamp to shine a light on a...
In the photoelectric effect experiment we use a Hg lamp to shine a light on a metal surface encased inside a photocell. There are multiple filters mounted on the front of the photocell to help us separate the light from the lamp into single-wavelength beams. Which of the following statements is true? Select one: a. Without the filters the photoelectric effect will still happen, but we will have no way to determine which electron was ejected by which photon wavelength....
In lectures we discussed how bitmap images are stored as a grid of pixel values. Each...
In lectures we discussed how bitmap images are stored as a grid of pixel values. Each pixel has a colour value, and colour can be encoded using the RGB encoding scheme. In lectures we also discussed using the RLE compression technique. Examples of the RLE technique being used to compress text were given. Instead of storing every single character individually, if there is a sequential run of identical characters, data on one character is stored along with a count of...
Write a 2 paragraph explanation of how energy is conserved in all closed systems, even when...
Write a 2 paragraph explanation of how energy is conserved in all closed systems, even when it seems like some of the energy disappears. Explain where the energy goes and why we cannot contain all of the energy in the system. Analyze why most people do not understand this concept and create an experiment or situation where you could show them this concept in real life (you cannot use a skatepark example.)
Extra problem: Use the attached sheet to draw a 8- bit odd parity generator and a odd-parity checker for the 8 data bits and odd parity bit. Let the Error output be active-low (so that it goes low if there is an error and is high if there is no error) Parity Error-Detection System Using 74280s, design a complete parity generator/checking system. It is to be used in an 8-bit, even-parity computer configuration. Solution: Parity generator: Because the 74280 has...
Please include waveform
Experiment #1 Design and create simulation waveform for an 8-bit even parity checker using Verilog. The system will accept 8-bit data and outputs a one if there are even numbers of ones, otherwise outputs zero. (hint: xor is helpful) Exnerimont #2
Experiment #1 Design and create simulation waveform for an 8-bit even parity checker using Verilog. The system will accept 8-bit data and outputs a one if there are even numbers of ones, otherwise outputs zero. (hint:...
If the adresse is 16 bit length how many addresses we have Select one: a. 64K b. 16 M c. 1024 1024 d. 16
computer architecture
The sum of the two 32 bit integers may not be representable in 32 bits. In this case, we say that an overflow has occurred. Write MIPS instructions that adds two numbers stored in registers Ss1 and Ss2, stores the sum in register $s3, and sets register Sto to 1 if an overflow occurs and to 0 otherwise. 5. (16pts) 6. Show the IEEE 754 binary representation of the number -7.425 in a single and double 7. If...
1. (10 points) We want to compare the numbers 3 and -6. Using 4-bit signed 2's complement numbers, show how we can use the process of binary addition to calculate a result that will tell us how these two numbers compare. (Just show the calculation here. The next part will be the interpretation of the result.) Now briefly explain how this result can be interpreted by a hardware circuit to indicate how the two numbers compare. (You don't need to...
In lectures we discussed how bitmap images are stored as a grid of pixel values. Each pixel has a colour value, and colour can be encoded using the RGB encoding scheme. In lectures we also discussed using the RLE compression technique. Examples of the RLE technique being used to compress text were given. Instead of storing every single character individually, if there is a sequential run of identical characters, data on one character is stored along with a count of...
