A rectangular channel needs to be designed to carry a maximum carrying capacity of 300 cfs...

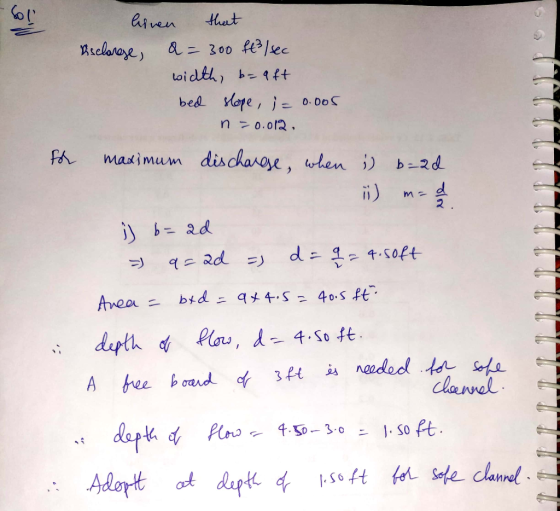

A rectangular channel needs to be designed to carry a maximum carrying capacity of 300 cfs flow. The channel base width should be 9 ft. The channel should be designed with a longitudinal slope of 0.005. Treat Manning’s n as 0.012. A free board of 3 ft is needed for a safe channel. Design the channel. (you need to decide how deep it should be)
Homework Answers
Add Answer to:
A rectangular channel needs to be designed to carry a maximum
carrying capacity of 300 cfs...
