An ideal solonoid of diameter 10 cm has 1000 windings/meter. Assume the current in the solonoid...

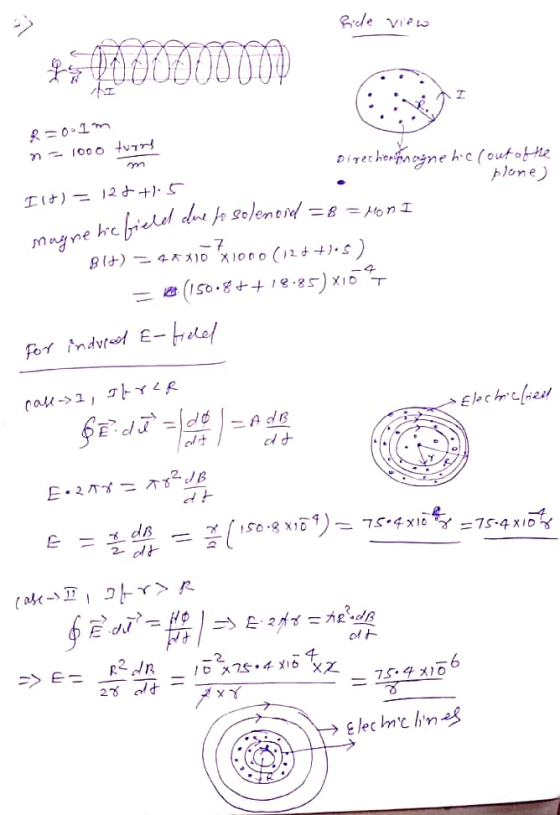

An ideal solonoid of diameter 10 cm has 1000 windings/meter. Assume the current in the solonoid is given by the function I(t) = 12.0(t) + 1.5 amps for t > 0 seconds. Calculate the magnetic field B(t) inside the solonoid and draw a diagram showing the solonoid and direction of the B field.
Draw a second diagram showing the field lines for the induced electric field inside the solonoid. What is the magnitude of the induced E-field E(r,t) as a function of both time and distance r from the center of the solonoid?
Homework Answers
Add Answer to:
An ideal solonoid of diameter 10 cm has 1000 windings/meter.
Assume the current in the solonoid...
5. A 10-cm diameter parallel plate capacitor has a 1.00 mm spacing (see the figure). A...
5. A 10-cm diameter parallel plate capacitor has a 1.00 mm spacing (see the figure). A continues current I is being used to charge this capacitor, and this current causes the electric field between the plates to change at a rate of 5.0 x 10 volt/m s. R=5 mm a. Find the magnetic field (magnitude and direction) at a point 2.0 mm radially from the center of the wire leading out of the capacitor (see the figure). (10 pts.) b....
A long solenoid has a diameter of 12.0 cm. When a current i exists in its...
A long solenoid has a diameter of 12.0 cm. When a current i exists in its windings, a uniform magnetic field B = 27.0 mT is produced in its interior. By decreasing i, the field is caused to decrease at the rate of 5.50 mT/s. Calculate the magnitude of the induced electric field at the following distances from the axis of the solenoid.
a)The current flowing in a solenoid, of 400 turns, 20 cm length & 4 cm diameter,...
a)The current flowing in a solenoid, of 400
turns, 20 cm length & 4 cm diameter, changes with time
according to the graph show to right. Derive an expression for the
strength of the induced electric field inside the solenoid.
b)Sketch the corresponding graph showing how the induced
electric field vary with time.
I(A) 5 Q4: Time (30 minutes) A. The current flowing in a solenoid, of 400 turns, 20 cm length & 4 cm diameter, changes with time according...
A wire of length 1.0 meter carries a current of 10 amps and makes an angle...
A wire of length 1.0 meter carries a current of 10 amps and makes an angle of 30 degree with a uniform magnetic field of magnitude B = 1.5 T. Calculate the magnitude and direction of the force on the wire.
a wire loop of diameter 15 cm is inside a spatially uniform magnetic field of magnitude...
a wire loop of
diameter 15 cm is inside a spatially uniform magnetic field of
magnitude .5 T. with the field lines perpendicular to the face of
the loop. what is the magnitude if the emf induced in the loop of
the magnetic field drops uniformly to 0 T in 1 second
c) a and c a, b and c d) e) c Question 14 A wire loop of diameter 15 cm is inside a spatially uniform magnetic field of...
A long solenoid has a diameter of 9.48 cm. When a current i exists in its...
A long solenoid has a diameter of 9.48 cm. When a current i exists in its windings, a uniform magnetic field of magnitude B = 40.5 mT is produced in its interior. By decreasing i, the field is caused to decrease at the rate of 9.02 mT/s. Calculate the magnitude of the induced electric field (a) 0.980 cm and (b) 7.45 cm from the axis of the solenoid.
A long solenoid has a diameter of 16.2 cm. When a current i exists in its...
A long solenoid has a diameter of 16.2 cm. When a current i exists in its windings, a uniform magnetic field of magnitude B = 39.4 mT is produced in its interior. By decreasing i, the field is caused to decrease at the rate of 9.47 mT/s. Calculate the magnitude of the induced electric field (a) 4.70 cm and (b) 11.2 cm from the axis of the solenoid.
A long solenoid has a diameter of 9.97 cm. When a current i exists in its...
A long solenoid has a diameter of 9.97 cm. When a current i exists in its windings, a uniform magnetic field of magnitude B = 26.7 mT is produced in its interior. By decreasing i, the field is caused to decrease at the rate of 8.82 mT/s. Calculate the magnitude of the induced electric field (a) 2.16 cm and (b) 7.48 cm from the axis of the solenoid.
A long solenoid has a diameter of 12.2 cm. When a current i exists in its...
A long solenoid has a diameter of 12.2 cm. When a current i exists in its windings, a uniform magnetic field of magnitude B = 42.4 mT is produced in its interior. By decreasing i, the field is caused to decrease at the rate of 8.00 mT/s. Calculate the magnitude of the induced electric field (a) 4.37 cm and (b) 7.70 cm from the axis of the solenoid.
5. A 10-cm diameter parallel plate capacitor has a 1.00 mm spacing (see the figure). A continues current I is being used to charge this capacitor, and this current causes the electric field between the plates to change at a rate of 5.0 x 10 volt/m s. R=5 mm a. Find the magnetic field (magnitude and direction) at a point 2.0 mm radially from the center of the wire leading out of the capacitor (see the figure). (10 pts.) b....
a)The current flowing in a solenoid, of 400
turns, 20 cm length & 4 cm diameter, changes with time
according to the graph show to right. Derive an expression for the
strength of the induced electric field inside the solenoid.
b)Sketch the corresponding graph showing how the induced
electric field vary with time.
I(A) 5 Q4: Time (30 minutes) A. The current flowing in a solenoid, of 400 turns, 20 cm length & 4 cm diameter, changes with time according...
A wire of length 1.0 meter carries a current of 10 amps and makes an angle of 30 degree with a uniform magnetic field of magnitude B = 1.5 T. Calculate the magnitude and direction of the force on the wire.
a wire loop of
diameter 15 cm is inside a spatially uniform magnetic field of
magnitude .5 T. with the field lines perpendicular to the face of
the loop. what is the magnitude if the emf induced in the loop of
the magnetic field drops uniformly to 0 T in 1 second
c) a and c a, b and c d) e) c Question 14 A wire loop of diameter 15 cm is inside a spatially uniform magnetic field of...
