A rectangular channel lined with concrete n=.013 with bottom width b=2.5m is laid on a slope...
A rectangular channel lined with concrete n=.013 with bottom width b=2.5m is laid on a slope of S0=.006. For this channel estimate the critical slope that will have a normal depth of flow of yc=1.5. What is the limit slope SL of this channel? Is the actual slope of the channel greater or less than the limit slope SL?

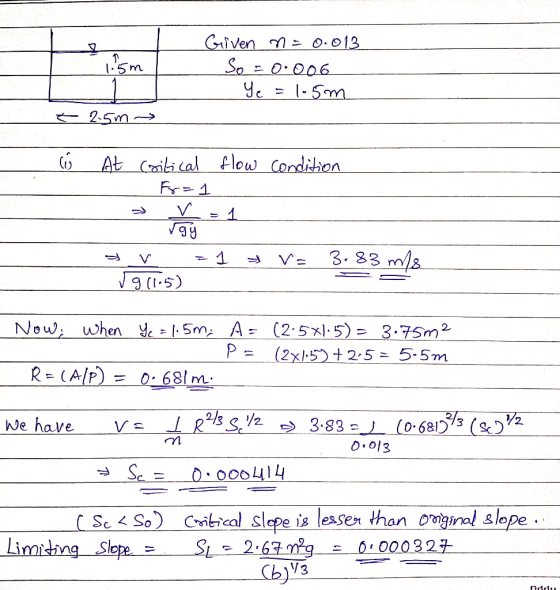

Homework Answers
The smallest slope which is critical and produces a given normal
depth is called limiting slope SL, for defined values of
channels shape and roughness. The critical uniform flow can be
obtained by adjusting the critical slope and discharge and the
slope at which this happens is called the Critical slope of normal
depth Scn.
Add Answer to:
A rectangular channel lined with concrete n=.013 with bottom
width b=2.5m is laid on a slope...
A concrete-lined (smooth) trapezoidal channel with a bottom width of 10 ft and side slope 2...
A concrete-lined (smooth) trapezoidal channel with a bottom width of 10 ft and side slope 2 horizontal to 1 vertical has a slope 0,002 and is designed for a discharge of 160 cts. Determine the water depth in the channel,
A trapezoidal channel has a bottom width, b, of 10.0 m and a side slope ratio...
A trapezoidal channel has a bottom width, b, of 10.0 m and a side slope ratio of 3:1. The Manning’s n of the channel is 0.025, and it is laid on a slope of 0.001. If the water depth is 2 m at the downstream end, write and submit an R script to compute the water surface profile for a discharge of 30 m3 /s. Also submit a plot of the water profile in elevation (m) for 1000 m channel...
A trapezoidal channel made of unfinished concrete n = 0.014 has a bottom slope of 0.0174,...
A trapezoidal channel made of unfinished concrete n = 0.014 has a bottom slope of 0.0174, base width of 5 m, and a side slope of 1:1. For a flow rate of 25 m3 /s, determine the normal depth and the state of the flow. Use Fr = v/(gD)0.5, where D is the hydraulic mean depth. (10 Marks)
15. A rectangular open concrete (n-0.012) channel is to be designed to carry a flow of...
15. A rectangular open concrete (n-0.012) channel is to be designed to carry a flow of 5 m/s. The slope is 0.003 m/m and the bottom width of the channel is 5 meters. Determine the normal depth that will occur in this channel. (A) 0,4 m (B) 0.47 m (C) 0.5 m (D) 0.77 m
A rectangular canal of slope 0.0004 is excavated out of stone and lined with rough concrete...
A rectangular canal of slope 0.0004 is excavated out of stone and lined with rough concrete (n= 0 014). The depth is half of the width. Determine the dimensions for a flow rate of 50 m³/s.
Water flows in a 100 ft wide rectangular channel at flow rate = 300 ft3/sec
Water flows in a 100 ft wide rectangular channel at flow rate = 300 ft3/sec. Manning's n = 0.015 and the bottom slope = 0.002. Calculate/answer the following: a. the uniform (normal) flow depth assuming the channel is wide and shallow. b. the critical flow depth. c. the flow depth upstream of a hydraulic jump with downstream depth = normal depth. d. the type of channel slope at the given normal depth: mild, critical, or steep (select one). f. the basis for your answer in...
A rectangular channel with slope So = 0.005, n = 0.015. The width is b =...
A rectangular channel with slope So = 0.005, n = 0.015. The width is b = 4.0 m and discharge in the channel is Q = 12.0 m/s. If the water depth at a given section along the channel is y: = 0.92 m, determine the distance from the section where the flow depth reaches the normal depth (14 marks). Explain your solution, showing your results in a clearly labelled sketch (6 marks).
Q1) Consider a rectangular channel with a constant width b, a) Obtain the equation of water...
Q1) Consider a rectangular channel with a constant width b, a) Obtain the equation of water surface profile (dy/dx) as function of Froude number and channel bottom slope in a channel transition assuming that over a short distance Ax, the energy losses can be neglected. b) Using the equation you have obtained, draw the water surface profile if flow is supercritical and if there is a downward step at the channel bed and show your results on the graph of...
Please give detailed solution A long rectangular unfinished concrete channel of width 3.6 m carries a...
Please give detailed
solution
A long rectangular unfinished concrete channel of width 3.6 m carries a flow of 14 m/s, with an abrupt change in slope from 0.0019 to 0.0180 at the midpoint of the channel. Determine: a) the uniform flow depths upstream and downstream of the change in slope, b) the critical flow depth, and c) the water surface profile types upstream and downstream of the change in slope.
QUESTION 3 A rough concrete rectangular channel with a bottom width of 8 feet drops 1...
QUESTION 3 A rough concrete rectangular channel with a bottom width of 8 feet drops 1 foot in a 3 mile stretch conveys a discharge of 100,000 GPM Assume n = 0.016. Compute the critical depth in the channel. O a. 0.99 feet b. 1.70 feet O c. 2.89 feet O d.3.71 feet
A concrete-lined (smooth) trapezoidal channel with a bottom width of 10 ft and side slope 2 horizontal to 1 vertical has a slope 0,002 and is designed for a discharge of 160 cts. Determine the water depth in the channel,
15. A rectangular open concrete (n-0.012) channel is to be designed to carry a flow of 5 m/s. The slope is 0.003 m/m and the bottom width of the channel is 5 meters. Determine the normal depth that will occur in this channel. (A) 0,4 m (B) 0.47 m (C) 0.5 m (D) 0.77 m
A rectangular channel with slope So = 0.005, n = 0.015. The width is b = 4.0 m and discharge in the channel is Q = 12.0 m/s. If the water depth at a given section along the channel is y: = 0.92 m, determine the distance from the section where the flow depth reaches the normal depth (14 marks). Explain your solution, showing your results in a clearly labelled sketch (6 marks).
Q1) Consider a rectangular channel with a constant width b, a) Obtain the equation of water surface profile (dy/dx) as function of Froude number and channel bottom slope in a channel transition assuming that over a short distance Ax, the energy losses can be neglected. b) Using the equation you have obtained, draw the water surface profile if flow is supercritical and if there is a downward step at the channel bed and show your results on the graph of...
Please give detailed
solution
A long rectangular unfinished concrete channel of width 3.6 m carries a flow of 14 m/s, with an abrupt change in slope from 0.0019 to 0.0180 at the midpoint of the channel. Determine: a) the uniform flow depths upstream and downstream of the change in slope, b) the critical flow depth, and c) the water surface profile types upstream and downstream of the change in slope.
QUESTION 3 A rough concrete rectangular channel with a bottom width of 8 feet drops 1 foot in a 3 mile stretch conveys a discharge of 100,000 GPM Assume n = 0.016. Compute the critical depth in the channel. O a. 0.99 feet b. 1.70 feet O c. 2.89 feet O d.3.71 feet
