The following instruction is performed: CMP AX,BX You want to jump to a different location in...

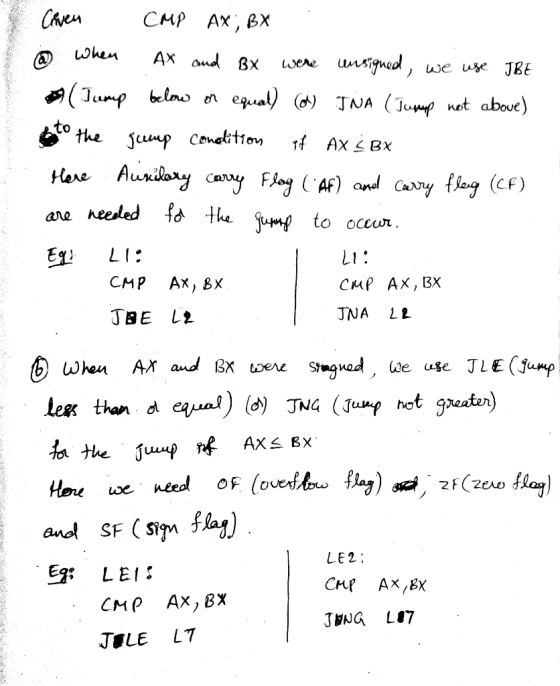

The following instruction is performed:
CMP AX,BX
You want to jump to a different location in your program if AX ≤ BX.
Which instruction would you use to do this and what flag settings are needed for the jump to occur if:
a.) If the values in the register were considered unsigned.
b.) If the values in the register were considered signed.
Homework Answers
Add Answer to:
The following instruction is performed:
CMP AX,BX
You want to jump to a different location in...
