Calculate the light-generated current density of the rate of generation is 10^20 EHP/cm^3/s across the entire...

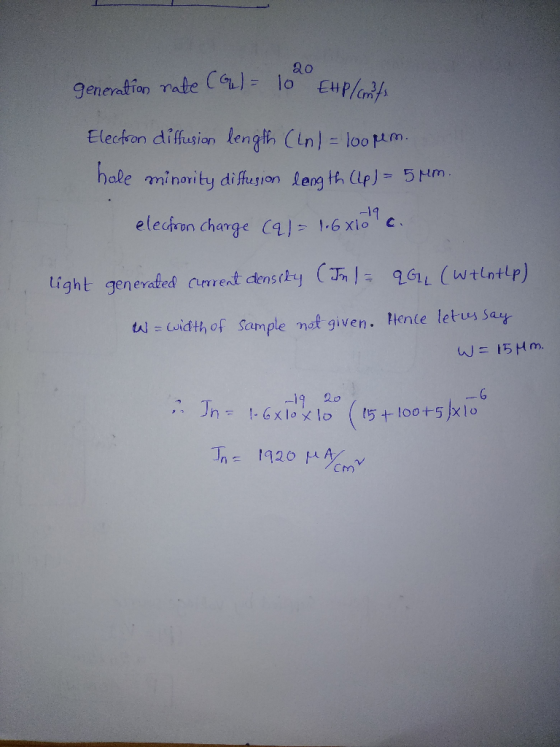

Calculate the light-generated current density of the rate of generation is 10^20 EHP/cm^3/s across the entire volume, the electron diffusion length is 100 micron and the hole minority diffusion length is 5 micron.
Homework Answers
Add Answer to:
Calculate the light-generated current density of the rate of
generation is 10^20 EHP/cm^3/s across the entire...
3 A silicon sample of length L. is unifomly doped with NA10 em acceptors. We shine laser light on one end of this sampl...
3 A silicon sample of length L. is unifomly doped with NA10 em acceptors. We shine laser light on one end of this sample that produces Ap An op,. 10 cm electron hole pairs (EHP) only at that cdge. A contact at the other end-.-L extracts all excess carriers, i.e.,6p,兀·L-C. X)-&2(x) assuming L >> diffusion 2S Find excess carrier concentration as a function of r, length L. Recall that Ln,p = Dnpr,,p 8. Find the diffusion current density Jc for...
3. A silicon step junction has uniform impurity doping concentrations of N. 5 x 1015 cm-3 and Nd ...
3. A silicon step junction has uniform impurity doping concentrations of N. 5 x 1015 cm-3 and Nd = 1 x 1015 cm-, and a cross-sectional area of A-|0-4 cm2. Let tao -0.4 s and tpo 0.1 us. Consider the geometry in Figure.Calculate (a) the ideal reverse saturation current due to holes, (b) the ideal reverse saturation current due to electrons, (c) the hole concentration at a, if V V and (d) the electron current at x = x" +...
Problem 3 (25 points) Consider a silicon pn junction at T - 300 K, NA- 1016 cm3, ND-5x1016 cm-3. The minority carrier lifetimes are τα , τ,-1 us. The junction is forward biased with Va-0.5V The minor...
Problem 3 (25 points) Consider a silicon pn junction at T - 300 K, NA- 1016 cm3, ND-5x1016 cm-3. The minority carrier lifetimes are τα , τ,-1 us. The junction is forward biased with Va-0.5V The minority carrier diffusion coefficients are D 25 cm/s, Da- 10 cm2/s n,1.5x1010 cm3 kT 0.0267 Depletion region p-type n-type a) (5 points) Calculate the excess electron concentration as a function of x in the p-side (see the figure above) b) (10 points) Calculate the...
Problem 4 (25 points) Consider a silicon pn junction at T-300 K, NA-ND- 1x101° cm3. The minority ...
Problem 4 (25 points) Consider a silicon pn junction at T-300 K, NA-ND- 1x101° cm3. The minority carrier lifetimes are τ n-0.01 μs and τ p-0.01 us. The junction is forwardbiased with Va 0.6V. The minority carrier diffusion coefficients are Dn-20 cm s, Dp 10 cm Is. n.-1.5x 1010 cm-3 Depletion region n-type p-type a) (10 points) Calculate the excess electron concentration as a function of x in the p side (see the figure above). b) (5 points) Calculate the...
Semiconductor Physics: A semiconductor has a intrinsic concentration of 1010 cm-3 and has donor impurity concentration o...
Semiconductor Physics: A semiconductor has a intrinsic concentration of 1010 cm-3 and has donor impurity concentration of 1015 cm-3. Light is shined (uniformly) upon the sample generating 5*1019 electron-hole pairs.cm-3s-1 with a minority carrier lifetime of 10-6 s. What is the net electron-hole recombination rate? I think at steady state, the electron-hole recombination rate is the same as the generation rate. But the current circumstances of the question make me doubt that assumption or conclusion (the question is 4 marks).
Consider a silicon pn junction at T = 300 K, NA-Np - 4x106cm. The minority carrier...
Consider a silicon pn junction at T = 300 K, NA-Np - 4x106cm. The minority carrier lifetimes are tn = Tp=1 us. The junction is forward biased with V, -0.6V. The minority carrier diffusion coefficients are D = 20 cm²/s, D = 10 cm²/s. n;= 1.5x100cm, kt/e = 0.026V Depletion region n-type p-type a) (5 points) Do we have low-level injection? b) (10 points) Calculate the electron concentration at x = -(Xp + Ln) where L, is the electron diffusion...
Problem 4 (25 points) Consider a silicon pn junction at T-300 K, NA-ND- 1x101° cm3. The minority ...
Can someone help solve this question step by step? Thanks!
Problem 4 (25 points) Consider a silicon pn junction at T-300 K, NA-ND- 1x101° cm3. The minority carrier lifetimes are τ n-0.01 μs and τ p-0.01 us. The junction is forwardbiased with Va 0.6V. The minority carrier diffusion coefficients are Dn-20 cm s, Dp 10 cm Is. n.-1.5x 1010 cm-3 Depletion region n-type p-type a) (10 points) Calculate the excess electron concentration as a function of x in the p...
This is for solid state electronics: Problem 4: Excess electrons and holes are generated at the...
This is for solid state electronics: Problem 4: Excess electrons and holes are generated at the end of a Si bar (at x=0). The Si is homogeneously doped with P atoms to a concentration of 1017 cm-3. The minority carrier lifetime = 1 μs. The electron diffusion coefficient = 25 cm2/s The hole diffusion coefficient = 10 cm2/s The excess electron and hole concentrations at x=0 are equal to each other and are 1015 cm-3. (a) Write the formula (with...
A silicon pn junction at T = 300 K has the following parameters: Na-5 1016 cm-?,...
A silicon pn junction at T = 300 K has the following parameters: Na-5 1016 cm-?, N,-1 1016 cm-3, D.-25 cm3/s, D.-10 cm2/s, ?,0-5 x 10-7 s, and To 1 X 10-7 s. The cross-sectional area is A 10-3 cm2 and the forward- bias voltage is V,-0.625 V. Calculate the (a) minority electron diffusion cur- rent at the space charge edge, (b) minority hole diffusion current at the space charge edge, and (c) total current in the pn junction diode.
An important application of PN diodes is their use as photodetectors. The optical radiation creates electron-hole...
An important application of PN diodes is their use as photodetectors. The optical radiation creates electron-hole pairs in the depletion region and regions within the diffusion lengths near the depletion edges. These e-h pairs are collected as a photocurrent. The e-h pairs are generated at the rate GL 1022 cm-3s1. Calculate the photocurrent. Consider a silicon PN diode at 300K with following parameters Equation for photocurrent calculation: AGL (W Ln Lp) A 104 um2 Na = 2 x 1016 cm-3...
3 A silicon sample of length L. is unifomly doped with NA10 em acceptors. We shine laser light on one end of this sample that produces Ap An op,. 10 cm electron hole pairs (EHP) only at that cdge. A contact at the other end-.-L extracts all excess carriers, i.e.,6p,兀·L-C. X)-&2(x) assuming L >> diffusion 2S Find excess carrier concentration as a function of r, length L. Recall that Ln,p = Dnpr,,p 8. Find the diffusion current density Jc for...
3. A silicon step junction has uniform impurity doping concentrations of N. 5 x 1015 cm-3 and Nd = 1 x 1015 cm-, and a cross-sectional area of A-|0-4 cm2. Let tao -0.4 s and tpo 0.1 us. Consider the geometry in Figure.Calculate (a) the ideal reverse saturation current due to holes, (b) the ideal reverse saturation current due to electrons, (c) the hole concentration at a, if V V and (d) the electron current at x = x" +...
Problem 3 (25 points) Consider a silicon pn junction at T - 300 K, NA- 1016 cm3, ND-5x1016 cm-3. The minority carrier lifetimes are τα , τ,-1 us. The junction is forward biased with Va-0.5V The minority carrier diffusion coefficients are D 25 cm/s, Da- 10 cm2/s n,1.5x1010 cm3 kT 0.0267 Depletion region p-type n-type a) (5 points) Calculate the excess electron concentration as a function of x in the p-side (see the figure above) b) (10 points) Calculate the...
Problem 4 (25 points) Consider a silicon pn junction at T-300 K, NA-ND- 1x101° cm3. The minority carrier lifetimes are τ n-0.01 μs and τ p-0.01 us. The junction is forwardbiased with Va 0.6V. The minority carrier diffusion coefficients are Dn-20 cm s, Dp 10 cm Is. n.-1.5x 1010 cm-3 Depletion region n-type p-type a) (10 points) Calculate the excess electron concentration as a function of x in the p side (see the figure above). b) (5 points) Calculate the...
Consider a silicon pn junction at T = 300 K, NA-Np - 4x106cm. The minority carrier lifetimes are tn = Tp=1 us. The junction is forward biased with V, -0.6V. The minority carrier diffusion coefficients are D = 20 cm²/s, D = 10 cm²/s. n;= 1.5x100cm, kt/e = 0.026V Depletion region n-type p-type a) (5 points) Do we have low-level injection? b) (10 points) Calculate the electron concentration at x = -(Xp + Ln) where L, is the electron diffusion...
Can someone help solve this question step by step? Thanks!
Problem 4 (25 points) Consider a silicon pn junction at T-300 K, NA-ND- 1x101° cm3. The minority carrier lifetimes are τ n-0.01 μs and τ p-0.01 us. The junction is forwardbiased with Va 0.6V. The minority carrier diffusion coefficients are Dn-20 cm s, Dp 10 cm Is. n.-1.5x 1010 cm-3 Depletion region n-type p-type a) (10 points) Calculate the excess electron concentration as a function of x in the p...
A silicon pn junction at T = 300 K has the following parameters: Na-5 1016 cm-?, N,-1 1016 cm-3, D.-25 cm3/s, D.-10 cm2/s, ?,0-5 x 10-7 s, and To 1 X 10-7 s. The cross-sectional area is A 10-3 cm2 and the forward- bias voltage is V,-0.625 V. Calculate the (a) minority electron diffusion cur- rent at the space charge edge, (b) minority hole diffusion current at the space charge edge, and (c) total current in the pn junction diode.
An important application of PN diodes is their use as photodetectors. The optical radiation creates electron-hole pairs in the depletion region and regions within the diffusion lengths near the depletion edges. These e-h pairs are collected as a photocurrent. The e-h pairs are generated at the rate GL 1022 cm-3s1. Calculate the photocurrent. Consider a silicon PN diode at 300K with following parameters Equation for photocurrent calculation: AGL (W Ln Lp) A 104 um2 Na = 2 x 1016 cm-3...
