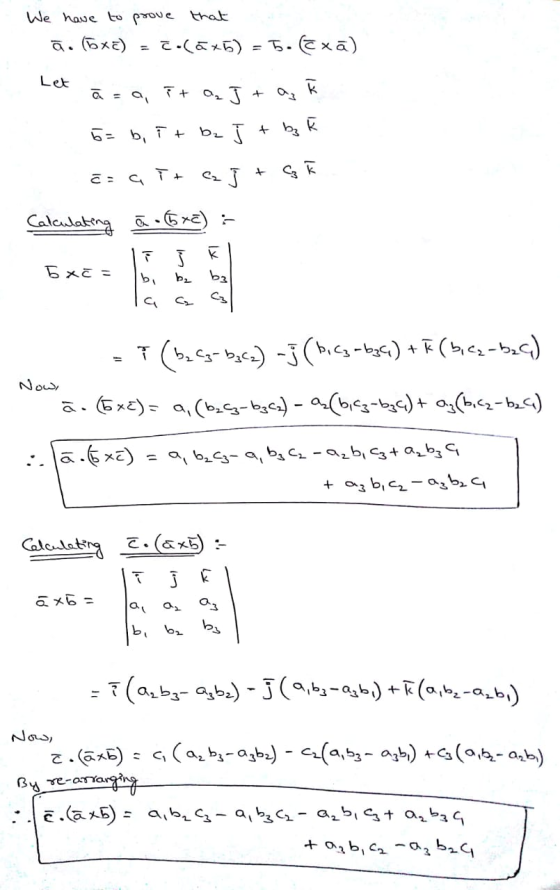

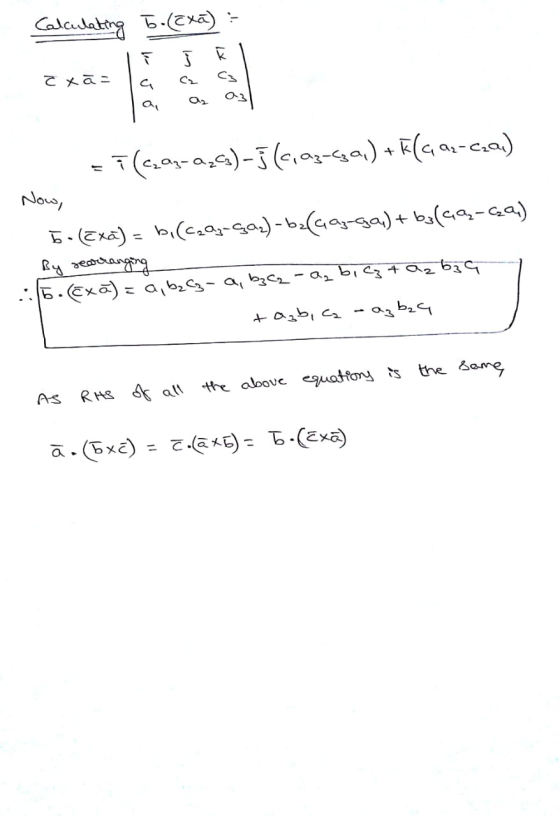

1.15. Show the following vector identities by writing each vector in terms of Cartesian unit vectors and showing that each component of the LHS is equal to the corresponding component of the RHS.
(a) a·(bxc)=c·(axb)=b·(cxa)
1.15. Show the following vector identities by writing each vector in terms of Cartesian unit vectors...
Show that A*(BxC) = B*(CxA) = C*(AxB) Using the Levi Civita symbol (A,B,C are all vectors).
I. In the diagram showing the unit cell, notations for writing a direction vector. vectors for , what are the vectors for points A, B, and C. Note: use the correct I. In the diagram showing the unit cell, notations for writing a direction vector. vectors for , what are the vectors for points A, B, and C. Note: use the correct
Part B Express force FCa as a Cartesian vector Express your answer in terms of the unit vectors i,j. and k. Use the vec' button to denote vectors in your nswers. Express your significant figures. answer using three lb Submit Give Up Part C Express force FDA as a Cartesian vector Express your answer in terms of the unit vectors i,j. and k. Use the vec button to denote vectors in your answers. Express your answer using three significant figures....
(a) Express the vectors A, B, and C in the figure below in terms of unit vectors. (b) Use unit vector notation to find the vectors R = A + B + C and S = C – A – B. (c) What are the magnitude and directions of vectors R and S? Well the picture goes and has a vector A pointing in the 1st quadrant of the graph and between the y axis it has a angle of...
6 ture Supplement 4: Intro Vectors Worksheet B a vector (graphical, verbal, or mathematical) that is in: Provide an example of a) ID b) 2D c) 3D (graphi Outline the main vector operations we will use in class: a) Vector Addition b) Vector Subtraction c) Scalar Multiplication d) Vector Dot Product e) Vector Cross Product What is a resultant vector? 4 What is the component of a vector? 3,Define a unit vector. Give an example of a unit vector in...
plz answer both 1. In the diagram showing the unit cell, what are the vectors for points A, B, and C. Note: use the correct notations for writing a direction vector. upying each of the lattice sites. Draw a clear diagram Gold has face centered cubic lattice with one atom occ showing the unit cell and find its APF ifrAu = 0.144 nm. 2. 1. In the diagram showing the unit cell, what are the vectors for points A, B,...
Express Fas a vector in terms of the unit vectors i, j and k (present your answer with 3 significant figures). Please enter your answers in the form of Ai +Bj +Ck. z - F = 60 N 1101 40 50 Dimensions in millimeters Determine the angle in degrees between F and the y- axis. z - F = 60 N 1101 40 50 Dimensions in millimeters 300 mm 150 mm 200 mm Use the vector product treatment to express...
7. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s (2i +3j +5k)m,s2 (6i- 9j + 2k)m, and s3 (10i 8j -k)m. a) Find the resultant displacement in terms of unit vectors and components. b) State the magnitude of the resultant displacement. 2. Suppose a hiker travels 5 km southwest from their camp. Then, the hiker travels 2 km 75° north of east. a) Find the displacement of the hiker form their camp. b)...
4. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s (2i +3j +5k)m,s2 (6i- 9j + 2k)m, and s3 (10i 8j -k)m. a) Find the resultant displacement in terms of unit vectors and components. b) State the magnitude of the resultant displacement. 2. Suppose a hiker travels 5 km southwest from their camp. Then, the hiker travels 2 km 75° north of east. a) Find the displacement of the hiker form their camp. b)...
5. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s (2i +3j +5k)m,s2 (6i- 9j + 2k)m, and s3 (10i 8j -k)m. a) Find the resultant displacement in terms of unit vectors and components. b) State the magnitude of the resultant displacement. 2. Suppose a hiker travels 5 km southwest from their camp. Then, the hiker travels 2 km 75° north of east. a) Find the displacement of the hiker form their camp. b)...
