An FM modulation has the frequency deviation of 2.5kHZ/V. The maximum deviation due to 6V input...

Question

Question

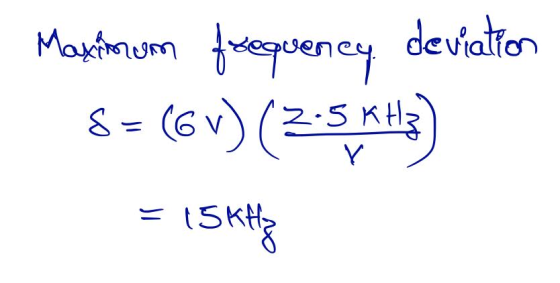

An FM modulation has the frequency deviation of 2.5kHZ/V. The maximum deviation due to 6V input is?

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

a-Calculate the maximum frequency deviation for the FM signal v(t)= 5 cos(6000t+ 4sin2π.200t) b-What is the...

a-Calculate the maximum frequency deviation for the FM signal v(t)= 5 cos(6000t+ 4sin2π.200t) b-What is the modulation index. Is it a NBFM or WBFM c-Calculate the transmission bandwidth by using Carson’s rule. d-What are the significant frequencies of the transmitted signal.
1.) Angle Modulation can be subdivided into phase modulation (PM) and frequency modulation (FM). Highlight the...

1.) Angle Modulation can be subdivided into phase modulation (PM) and frequency modulation (FM). Highlight the differences between FM and PM. What is meant by the term instantaneous frequency? 2.) Describe what is meant by the term "Zero-Crossings" of a FM or PM wave. 3.) Is PM and/or FM a linear modulation technique? Explain. 4.) Describe one important advantage that angle modulation has over amplitude modulation. Describe one distinct disadvantage that angle modulation has over amplitude modulation. 5.) Describe the...
10. (4pts) The deviation ratio for an FM system that has a maximum possible deviation of...

10. (4pts) The deviation ratio for an FM system that has a maximum possible deviation of 5 kHz and 3kHz maximum input frequency is (Show your calculation):

In frequency Modulation (FM), the instantaneous frequency of a sinusoidal carrier wave will be modified proportionally...

In frequency Modulation (FM), the instantaneous frequency of a sinusoidal carrier wave will be modified proportionally to the variation of amplitude of the message signal. Use Matlab to build an FM modulation and demodulation process. The FM coefficient is Kf=80, and the carrier frequency is 300Hz. 1. Generate a baseband signal as show below. Plot the baseband signal in time domain and frequency domain. 2. Create an FM process and plot the modulated signal in time and frequency domain. -1...
In an FM system the carrier frequency is 1MHz, the modulating signal at 10 kHz, the...

In an FM system the carrier frequency is 1MHz, the modulating signal at 10 kHz, the maximum deviation is 150 kHz. What is frequency modulation fm?
In frequency Modulation (FM), the instantaneous frequency of a sinusoidal carrier wave will be mo...

In frequency Modulation (FM), the instantaneous frequency of a sinusoidal carrier wave will be modified proportionally to the variation of amplitude of the message signal. Use Matlab to build an FM modulation and demodulation process. The FM coefficient is Kf=80, and the carrier frequency is 300Hz. 1. Generate a baseband signal as show below. Plot the baseband signal in time domain and frequency domain. 2. Create an FM process and plot the modulated signal in time and frequency domain. -1...

Vincent Russell I Elee 225 102 16. Compute the modulation freq. fm, for an FM Wave...

Vincent Russell I Elee 225 102 16. Compute the modulation freq. fm, for an FM Wave with a modulation index mf of 10.25 and a frequency deviation of nokte Giren: m=0.25 of = lekt2 table 18. Using al or Figure uns, find the in for an FMware
1.A certain FM transmitter has a resting frequency of 200 KHz, a maximum frequency of 202.5...

1.A certain FM transmitter has a resting frequency of 200 KHz, a maximum frequency of 202.5 KHz, and a minimum frequency of 197.5 KHz. An information signal of 3 Vpk, 2.5 KHz is driving the modulator. What is the deviation of the transmitter?What is the deviation rate for the transmitter
3.For each of the following FM signals, calculate thef ollowing: Deviation, Percentage of modulation, and bandwidth...

3.For each of the following FM signals, calculate thef ollowing: Deviation, Percentage of modulation, and bandwidth by Carson’s Rule: a.fc =100 KHz, fmax =102 KHz, fmin =98 KHz, fm =1KHz, δmax= 5KHz. b.fc =155.45 KHz, fmax =155.458 KHz, fmin =155.442KHz, fm= 8KHz δmax= 15KHz. Calculate the FM modulation for each of the FM signals.

Q2 The output signal of an angle modulator is given as V(t) = 6 cos(2000000net +...

Q2 The output signal of an angle modulator is given as V(t) = 6 cos(2000000net + 40 cos(2000xt) + 15cos (400nt)) (v) Determine the following: The average power of the signal. b) The carrier frequency of the signal. The instantaneous frequency of the signal. d) The instantaneous maximum frequency deviation of the signal. e) The wavefom of the message signal, assuming a frequency modulation (FM). f) The modulation index, assuming a FM. Is it a broadband FM or narrowband FM...
