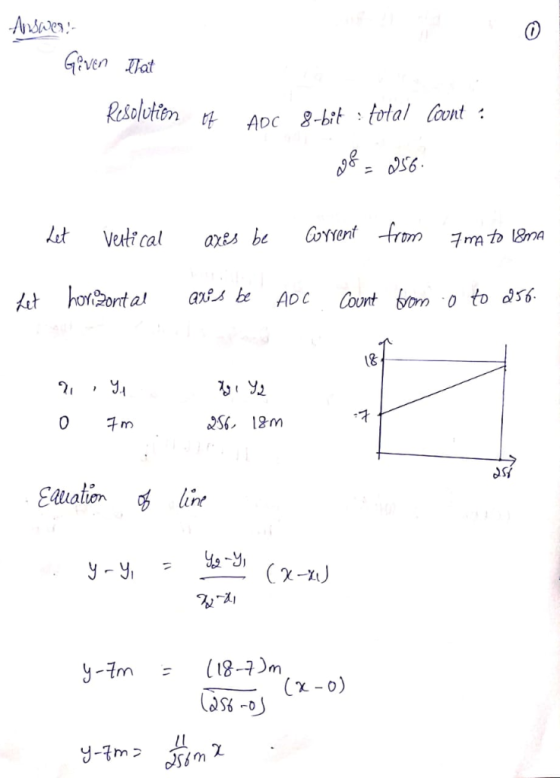

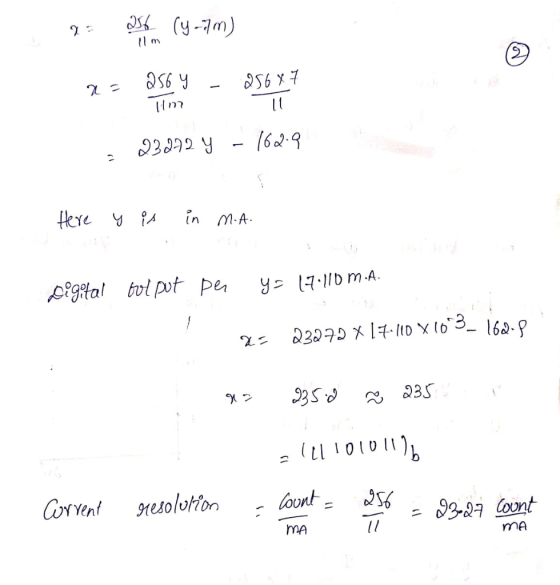

An A/D-current integrated circuit has a resolution of 8-bits and has an input range of 7mA to 18mA. Calculate the digital-output value for 17.110 mA input, and also current resolution (i.e. mA per A/D count). Current range divided by 2^8 is an approximate calculation of current resolution. Calculate the approximate current resolution and the positive difference between the two. ans:4
